HMC214

Obsolete

High IP3 Mixer SMT, 2.4 - 4.0 GHz

Part Models: 2
1ku List Price: price unavailable

Viewing:

Overview

Input IP3: +34 dBm
LO to RF Isolation: 28 dB
Input P1dB +22 dBm
No External Components

Ultra Small MSOP Package: 14.8mm²
Included in the
HMC-DK003 Designer’s Kit

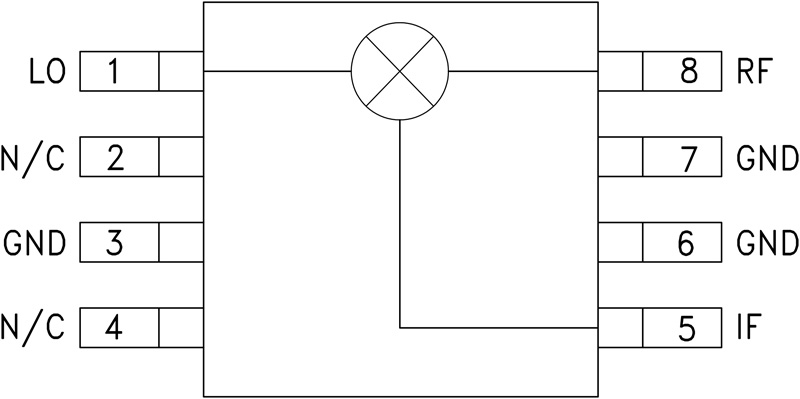

The HMC214MS8(E) is a general purpose high dynamic range passive MMIC mixer in plastic surface mount 8 lead Mini Small Outline Package (MSOP) covering 2.4 to 4 GHz. Excellent input IP3 performance of +34 dBm for downconversion and +31 dBm for upconversion is provided for WiMax and other 3.5 GHz applications at an LO drive of +17 dBm. With a 1dB compression of +22 dBm, the RF port will accept a wide range of input signal levels. Conversion loss is 10 dB typical and LO isolations are maintained at 25 to 30 dB.

This miniature single-ended monolithic GaAs FET mixer does not require any external components or bias. The DC to 1 GHz IF frequency response will satisfy many transmit and receive frequency plans configured for low side LO. The HMC214MS8(E) input IP3 performance coupled with its high P1dB rivals traditional active FET mixers while offering a much smaller 14.8mm² standard IC footprint and no DC bias.

Applications

WiMAX, 802.16
Fixed Wireless Access
Wireless Local Loop

Part Models: 2
1ku List Price: price unavailable

Documentation

Obsolete Data Sheet 1

HMC214 Data Sheet 09/11/2015
