Features

isoPower integrated, isolated dc-to-dc converter
100 mA output current for ADuM5020
60 mA output current for ADuM5028
Meets CISPR22 Class B emissions limits at full load on a 2-layer PCB
16-lead SOIC_W package with 7.8 mm minimum creepage
8-lead SOIC_IC package with 8.3 mm minimum creepage
High temperature operation: 125°C maximum

Safety and regulatory approvals
- UL recognition (pending)
  - 3000 V rms for 1 minute per UL 1577
- CSA Component Acceptance Notice 5A (pending)
- VDE certificate of conformity (pending)
  - VDE V 0884-10
  - V_IORM = 565 V peak
- CQC certification per GB4943.1-2011 (pending)

Additional Details

The ADuM5028 is an isoPower^®, integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc., iCoupler^® technology, the dc-to-dc converter provide regulated, isolated power that is below CISPR22 Class B limits at full load on a 2-layer PCB with ferrites.

The ADuM5028 eliminates the need to design and build an isolated dc-to-dc converter in 300 mW applications. The iCoupler chip scale transformer technology is used for the magnetic components of the dc-to-dc converter. The result is a small form factor, isolated solution.

The ADuM5028 isolated dc-to-dc converters provide a space saving 8 pin wide body SOIC.

Applications

RS-485/RS-422/CAN transceiver power
Power supply startup bias and gate drives
Isolated sensor interfaces

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Search

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

EngineerZone Icon

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price Starting From $3.76

{{#if toggleButtonDescription}} {{/if}} {{#if newProjectTitle}} {{/if}}

Technical Documents 3

ADuM5020/ADuM5028: Low Emission Isolated DC-to-DC Converters Data Sheet (Rev.C) 09/30/2024

Show More

UG-1263: Evaluating the ADuM5028 Low Emission, Isolated, DC-to-DC Converter (Rev.A) 06/12/2018

Show More

Safety and Regulatory Compliance Information 01/28/2016

Show More

Reference Materials 8

Safety and Regulatory Compliance Information 01/28/2016

Low Noise Isolated Designs for Safety Critical Applications 03/01/2018

Digital Isolation and Interface Technology Selection Guide 02/07/2020

Avoiding the Hidden Costs of Isolation Design—How to Manage Project Risk with Next-Generation Solutions 09/01/2018

Passing the Radiated Emissions Test: How to Eliminate Complex EMI Mitigation Techniques for Compact and Cost-Effective Isolated Designs 01/30/2019

The Hidden Cost of Your Isolated System Design 07/16/2018

Video

2

Thumbnail Image

Video

2020-10-28

01:00

Protect your Innovations: from High Precision to High Power

Learn More

Thumbnail Image

Video

2018-05-24

01:26

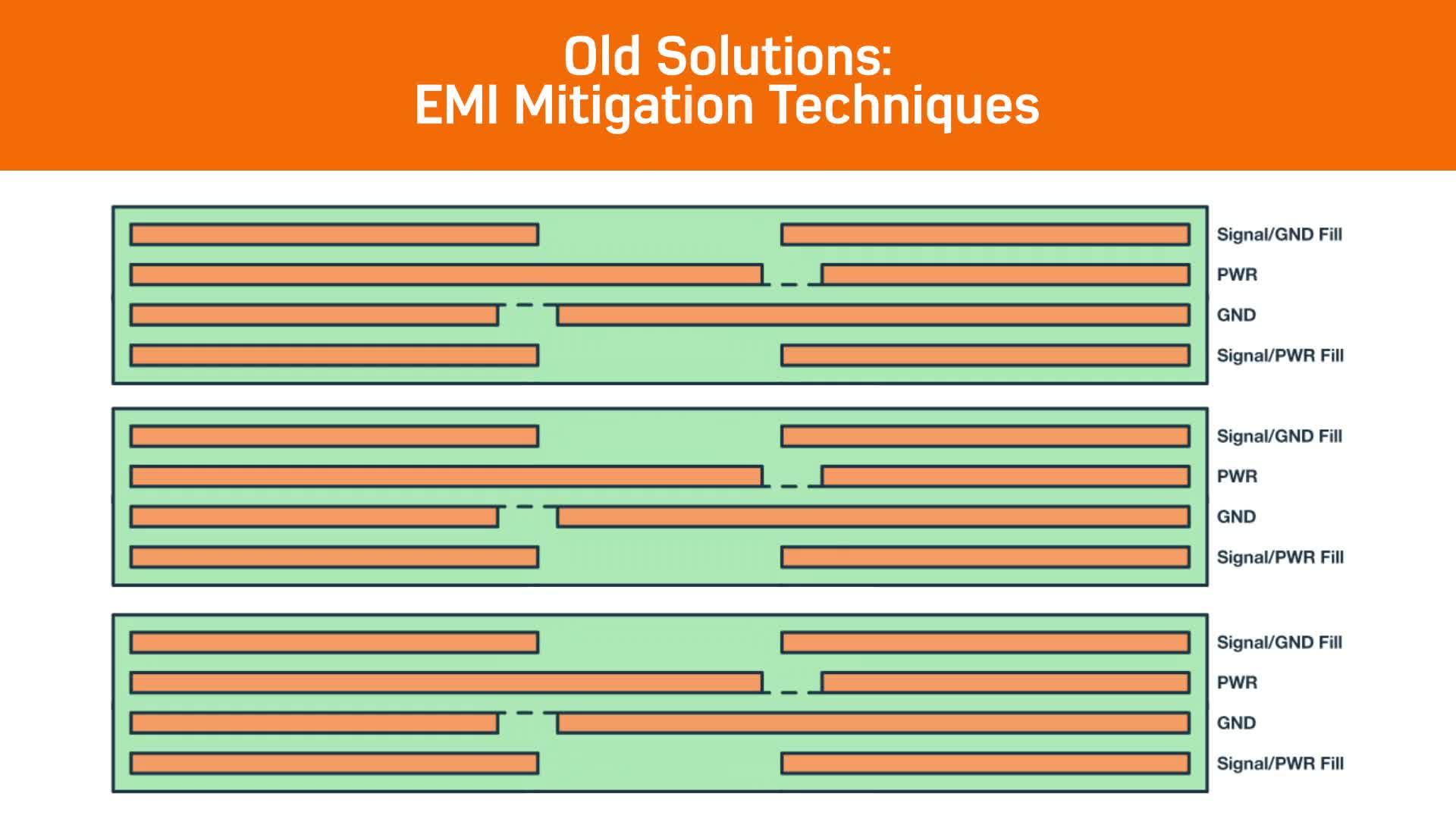

How to Meet EMI Targets with Simplified Compact Isolated Design

Learn More

Show More

Design Resources 4

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADUM5028-3BRIZ	8-Lead SOIC (Increased Creepage)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADUM5028-3BRIZ-RL	8-Lead SOIC (Increased Creepage)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADUM5028-5BRIZ	8-Lead SOIC (Increased Creepage)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADUM5028-5BRIZ-RL	8-Lead SOIC (Increased Creepage)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

ADUM5028-3BRIZ
Pin/Package Drawing
8-Lead SOIC (Increased Creepage)
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADUM5028-3BRIZ-RL
Pin/Package Drawing
8-Lead SOIC (Increased Creepage)
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADUM5028-5BRIZ
Pin/Package Drawing
8-Lead SOIC (Increased Creepage)
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADUM5028-5BRIZ-RL
Pin/Package Drawing
8-Lead SOIC (Increased Creepage)
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

reference details image

EVAL-ADuM5028

ADuM5028 Evaluation Board

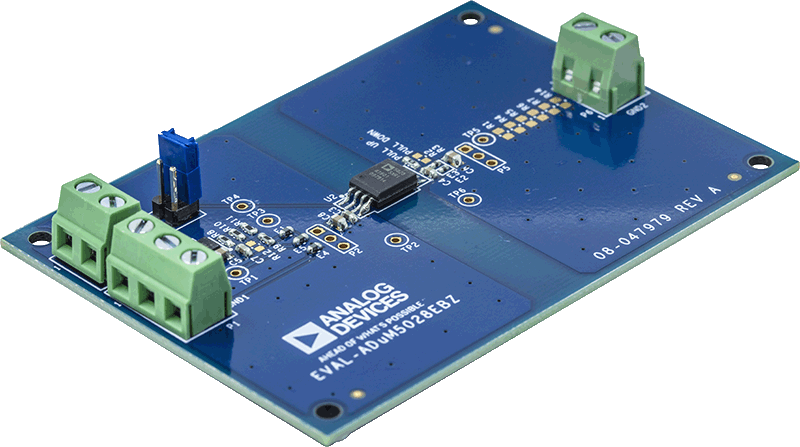

EVAL-ADUM5028EBZANGLE-web

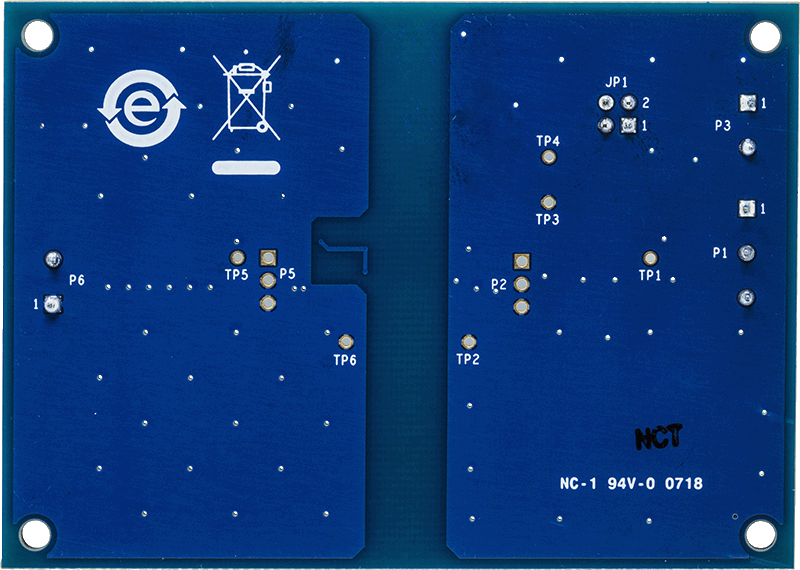

EVAL-ADUM5028EBZBOTTOM-web

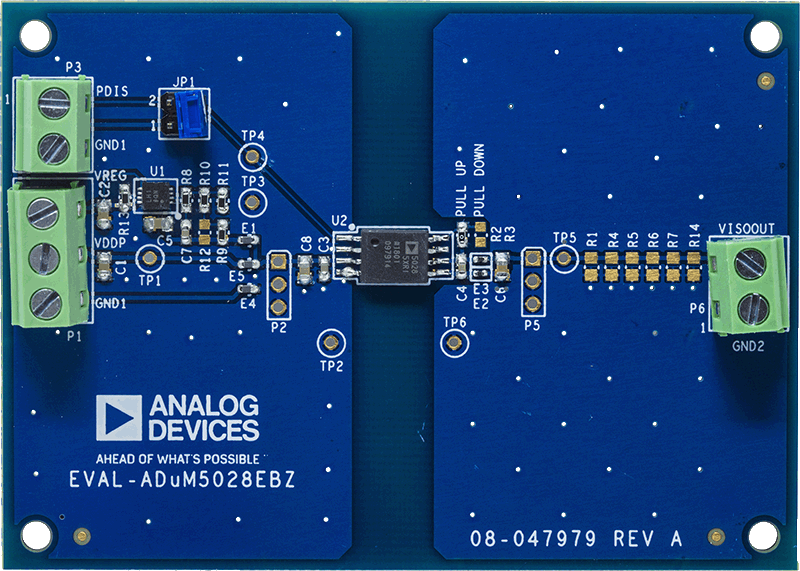

EVAL-ADUM5028EBZTOP-web
