ADuM3123: Isolated Precision Gate Driver, 4.0 A Output Data Sheet (Rev. 0)8/5/2015481 K
Features and Benefits
- 4.0 A peak output current
- Isolated Working Voltage
Secondary side to Input side: 537 V
- High frequency operation:
1 MHz maximum
- 3.3 V to 5 V input Logic
- 4.5V to 18 V output drive
- UVLO at 2.5 V VDD1
- Precise timing characteristics
64 ns maximum isolator and driver Propagation Delay
- CMOS input logic levels
- High common-mode transient immunity: >25 kV/µs
- High junction temperature operation: 125°C
- Default low output

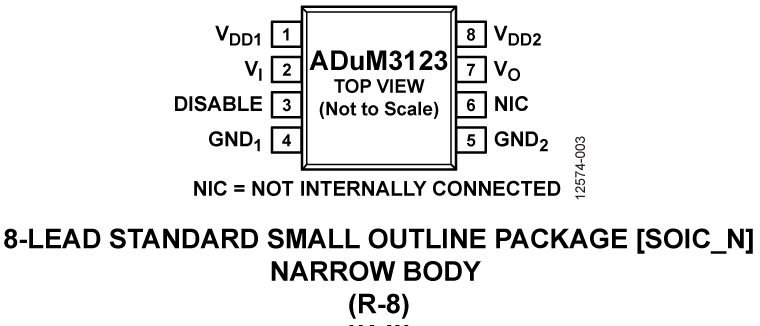

- Narrow body, 8-lead SOIC
- See data sheet for additional features

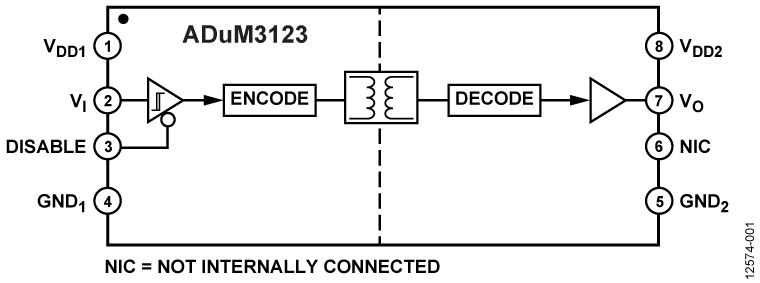

The ADuM3123 is a 4.0 A isolated, single channel driver that employs Analog Devices, Inc.’s iCoupler® technology to provide precision isolation. The ADuM3123 provides 3000 VRMS isolation in the narrow body 8-lead SOIC package. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives such as the combination of pulse transformers and gate drivers.
The ADuM3123 operate with an input supply ranging from 3.0 V to 5.5 V, providing compatibility with lower voltage systems. In comparison to gate drivers employing high voltage level translation methodologies, the ADuM3123 offer the benefit of true, galvanic isolation between the input and the output. The output may be continuously operated up to 380 V rms relative to the input.
As a result, the ADuM3123 provide reliable control over the switching characteristics of IGBT/MOSFET configurations over a wide range of positive or negative switching voltages.
- Switching power supplies
- Isolated IGBT/MOSFET gate drives
- Industrial inverters
Markets and Technologies
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
The EVAL-ADuM3123 EBZ supports the ADuM3123 isolated precision gate driver. Because the evaluation board has footprints for isolated gate bipolar transistors (IGBTs) and MOSFETs in TO-263 or TO-252 packages, respectively, the ADuM3123 can be evaluated with many different power devices.
The ADuM3123ARZ model represents a superset of the ADuM3123 models because it has the lowest minimum output voltage (4.4 V). The ADuM3123BRZ and ADuM3123CRZ models have minimum output voltages of 7.4 V and 11.1 V, respectively.
Complete information about the ADuM3123 is available in the ADuM3123 data sheet, which should be consulted in conjunction with this user guide when using the evaluation board.
Features & Benefits
- 4 A peak output current
- High frequency operation: 1 MHz maximum
- CMOS input logic levels
- 4.5 V to 18 V output drive
- Supports TO-263 or TO-252 IGBT/MOSFETs
