ADXL326

PRODUCTION

Small, Low Power, 3-Axis ±16 g Accelerometer

Data Sheet (Rev. 0) Product Selection Table

Part Models: 3
1ku List Price: Starting From $2.80

Viewing:

Overview

3-axis sensing
Small, low profile package 4 mm × 4 mm × 1.45 mm LFCSP
Low power: 350 μA typical
Single-supply operation: 1.8 V to 3.6 V

10,000 g shock survival
Excellent temperature stability
Bandwidth adjustment with a single capacitor per axis
RoHS/WEEE lead-free compliant

The ADXL326 is a small, low power, complete 3-axis accelerometer with signal conditioned voltage outputs. The product measures acceleration with a minimum full-scale range of ±16 g. It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration, resulting from motion, shock, or vibration.

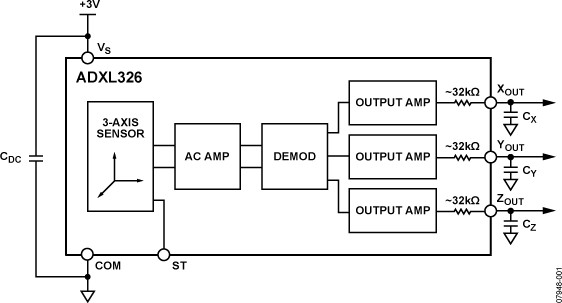

The user selects the bandwidth of the accelerometer using the C_X, C_Y, and C_Z capacitors at the X_OUT, Y_OUT, and Z_OUT pins. Bandwidths can be selected to suit the application with a range of 0.5 Hz to 1600 Hz for X and Y axes and a range of 0.5 Hz to 550 Hz for the Z axis.

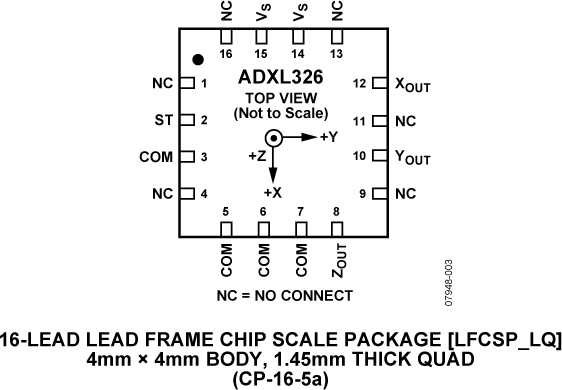

The ADXL326 is available in a small, low profile, 4 mm × 4 mm × 1.45 mm, 16-lead, plastic lead frame chip scale package (LFCSP_LQ).

Part Models: 3
1ku List Price: Starting From $2.80

Documentation

Frequently Asked Question 1

FAQ 10/22/2016

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADXL326BCPZ	16 ld LFCSP (4x4mm,stacked Die w/Glass seal 1.75mm	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADXL326BCPZ-RL	16 ld LFCSP (4x4mm,stacked Die w/Glass seal 1.75mm	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADXL326BCPZ-RL7	16 ld LFCSP (4x4mm,stacked Die w/Glass seal 1.75mm	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Sep 26, 2022 - 22_0221 Qualification of Alternate Fab Site for MEMS Products
		PCN22_0221_Form Material_Report Qualification Results Summary
ADXL326BCPZ	PRODUCTION
ADXL326BCPZ-RL	PRODUCTION
ADXL326BCPZ-RL7	PRODUCTION
Apr 20, 2010 - 09_0249 Addition of Advanced Semiconductor Engineering (ASE) Korea as an alternate source and transfer to ASE for the LFCSP package
		PCN09_0249_Form Material_Report Reliability Report
ADXL326BCPZ	PRODUCTION
ADXL326BCPZ-RL	PRODUCTION
ADXL326BCPZ-RL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

ADXL326 Breakout Board

Buy Now View Details

Product Details

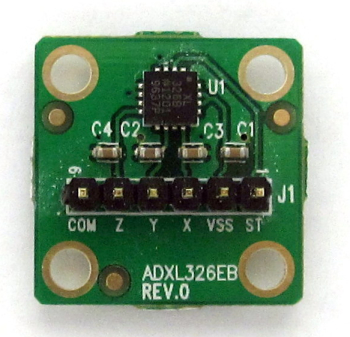

The EVAL-ADXL326Z is a simple breakout board that allows quick evaluation of the performance of the ADXL326 accelerometer. The ADXL326 is a 3-axis analog-output accelerometer with ±16 g measurement range. The small size (1" x 1") of the breakout board makes it easy to mount the accelerometer to an existing system without the need for additional hardware and with minimal effect on performance of the system and of the accelerometer.
