ADSP-CM419F
Dual-Core: 240MHz ARM Cortex-M4 and Cortex-M0 with 13+ ENOB ADC, BGA 210
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- 240MHz ARM Cortex-M4 (with floating-point unit) with up to 160K Byte zero-wait-state ECC SRAM
- Safety based dual-independent-core concept
- Up to 1M Byte high performance ECC FLASH that can execute instructions at near SRAM speed
- Highest precision, low latency 31-channel analog front end
- 100 MHz ARM Cortex-M0 supervisor core with 32K Byte zerowait-state ECC SRAM
- Single 3.3 V power supply
- Static memory controller (SMC) with asynchronous memory interface that supports 8-bit and 16-bit memories
- Enhanced, 24-channel precision PWM unit
- Four 3rd or 4th order SINC filters for glueless connection of sigma-delta modulators
- Hardware-based harmonic analysis engine
- FFT Arcing Detection
- See data sheet for additional features
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The ADSP-CM41xF series of mixed-signal control processors is based on the ARM® Cortex-M4™ processor core with floating point unit operating at frequencies up to 240 MHz. In addition, some of the series incorporate an ARM® Cortex-M0™ processor core operating at frequencies up to 100 MHz which enables the integration of dual-core safety redundancy into a single chip. The processors integrate up to 160K Bytes of SRAM memory with ECC, up to 1M Byte of flash memory with ECC, accelerators and peripherals optimized for photo-voltaic (PV) inverter control and motor control, and an analog module consisting of up to two 16-bit SAR-type ADCs, one 14-bit on M0 ADC and one 12-bit DAC. The ADSP-CM41xF family operates from a single voltage supply, generating its own internal voltage supplies using internal voltage regulators and an external pass transistor.
By integrating a rich set of industry-leading system peripherals and memory, the ADSP-CM41xF mixed signal control processors are the platform of choice for next-generation applications that require RISC programmability and leading-edge signal processing in one integrated package. These applications span a wide array of markets in power conversion and include Solar PV inverters, motor/power control, and battery charging/control.
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADSP-CM419F
Documentation
Filters
1 Applied
-
All
-
Processor Manual
-
Data Sheet
-
Application Note
-
User Guide
-
Integrated Circuit Anomaly
-
All
-
English
Data Sheet
1
Application Note
5
User Guide
1
Integrated Circuit Anomaly
1
Documentation
Data Sheet 1
User Guide 1
Application Note 5
EE-390: ADSP-CM41x Power Supply Transistor Selection Guidelines (Rev.1)
EE-402: Synchronous System Halt and Run on the ADSP-CM41x Processor (Rev.1)
EE-398: ADSP-CM41x Board Design Guidelines for Optimal ADC Performance (Rev.1)
EE-396: Using the ADSP-CM41x MATH Unit for Clarke and Park Transforms (Rev.2)
EE-393: Protecting ADSP-CM41x Devices from Input Clock/Power Supply Faults (Rev.2)
Processor Manual 1
Integrated Circuit Anomaly 1

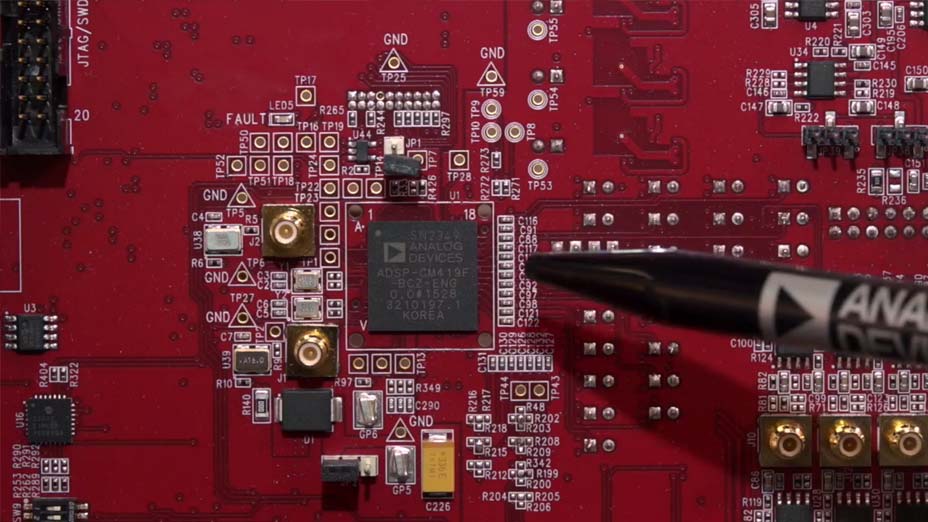

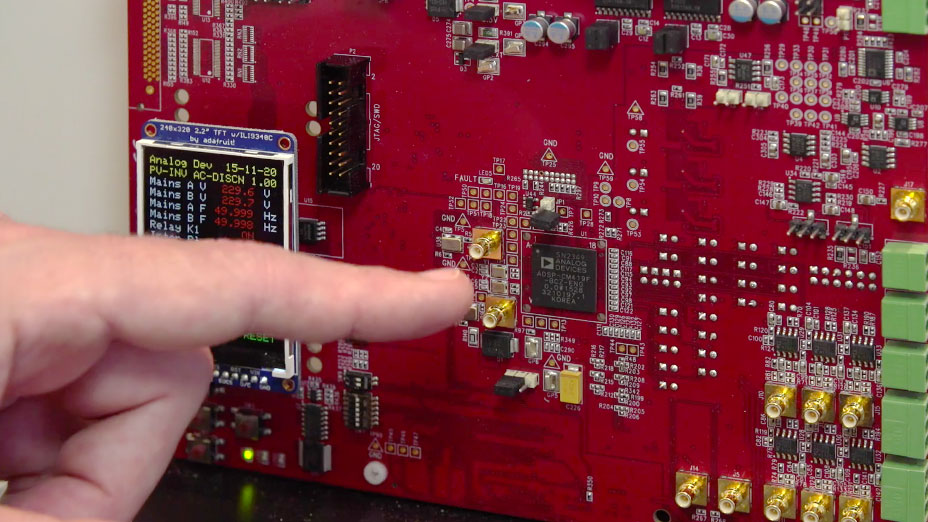

Video
5
Software & Part Ecosystem
