ADPL86610

4.5V to 60V, 250mA Current-Limiter with OV, UV, and Reverse Protection

Highly Integrated System Protection Solution Enabling a Robust and Space-Saving Design

Viewing:

Overview

  • Robust Protection Reduces System Downtime
    • Wide Input-Supply Range: +4.5V to +60V
    • Hot Plug-in Tolerant without Transient VoltageSuppressor (TVS) up to 35V Input Supply
    • Negative Input Tolerance to -65V
    • Low RON 1.42Ω (typ)
    • Reverse Current-Blocking Protection
    • Thermal Overload Protection
    • Extended -40°C to +125°C Temperature Range
    • ADPL86610 Enables OV, UV, and Reverse-Voltage Protection
    • ADPL86611 Enables OV and UV Protection
    • ADPL86612 Enables Reverse-Voltage Protection
  • Flexible Design Options Enable Reuse and Less Requalification
    • Adjustable OVLO and UVLO Thresholds
    • Programmable Forward-Current Limit: 10mA to20mA with ±6% Accuracy and 20mA to 250mA with ±5% Accuracy Over Full Temperature Range
    • Programmable Overcurrent Fault Response: Autoretry, Continuous, and Latch-Off Modes
    • Smooth Current Transitions
  • Saves Board Space and Reduces External Bill ofMaterials (BOM) Count
    • 10-Pin, 3mm x 3mm, Thin Dual Flat No Leads(TDFN)-EP Package
    • Integrated FETs

The ADPL86610/ADPL86611/ADPL86612 are a series of adjustable overvoltage and overcurrent protection devices that are ideal to protect systems against positive and negative input voltage faults up to +60V and -65V, and feature low 1.42Ω (typ) RON FETs.

The adjustable input overvoltage protection range is 5.5V to 60V, and the adjustable input undervoltage protection range is 4.5V to 59V. The input Overvoltage-lockout (OVLO) and Undervoltage-lockout (UVLO) thresholds are set using external resistors. Additionally, the devices offer an internal input undervoltage threshold at 4.2V (typ).

The devices feature programmable current-limit protection up to 250mA; hence, controlling the inrush current at startup while charging large capacitors at the output. The current-limit threshold is programmed by connecting a resistor from the SETI pin to GND. When the device current reaches the programmed threshold, the device prevents further increases in current by modulating the Field-effect transistor (FET) resistance. The devices can be programmed to behave in three different ways under current-limit conditions: Autoretry, Continuous, or Latch-off modes. The voltage appearing on the SETI pin is proportional to the instantaneous current flowing through the device and is read by an Analog-to-digital converter (ADC).

ADPL86610 and ADPL86612 block current flowing in the reverse direction (i.e., from OUT to IN), whereas ADPL86611 allows current flow in the reverse direction. The devices feature thermal shutdown protection against excessive power dissipation.

The devices are available in a small, 10-pin (3mm x 3mm) TDFN-EP package. The devices operate over the -40°C to +125°C extended temperature range.

APPLICATIONS

  • Sensor Systems
  • Condition Monitoring
  • Factory Sensors
  • Process Instrumentation
  • Weighing and Batching Systems
  • Industrial Applications such as Programmable Logic Controller (PLC), Network-Control Modules, Battery-Operated Modules

ADPL86610
4.5V to 60V, 250mA Current-Limiter with OV, UV, and Reverse Protection

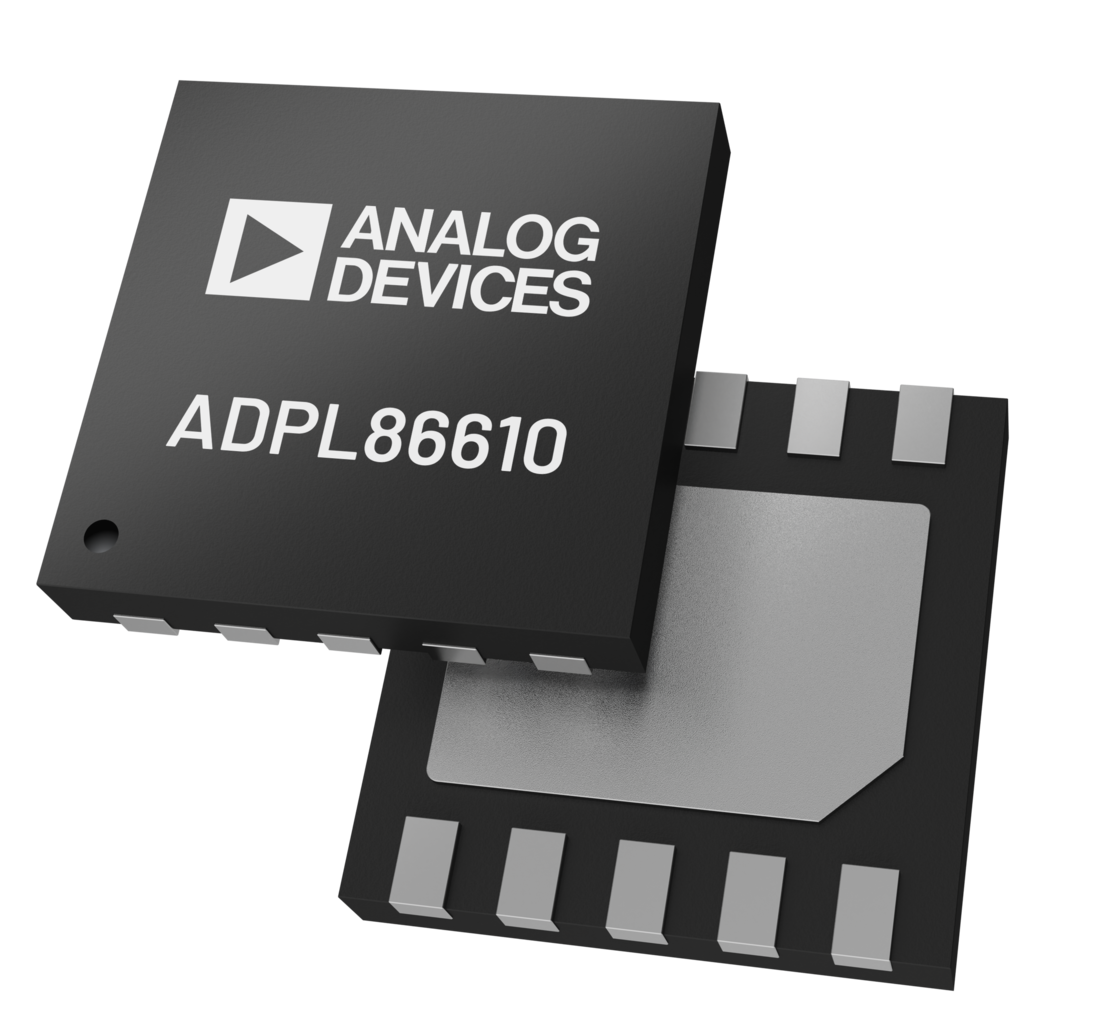

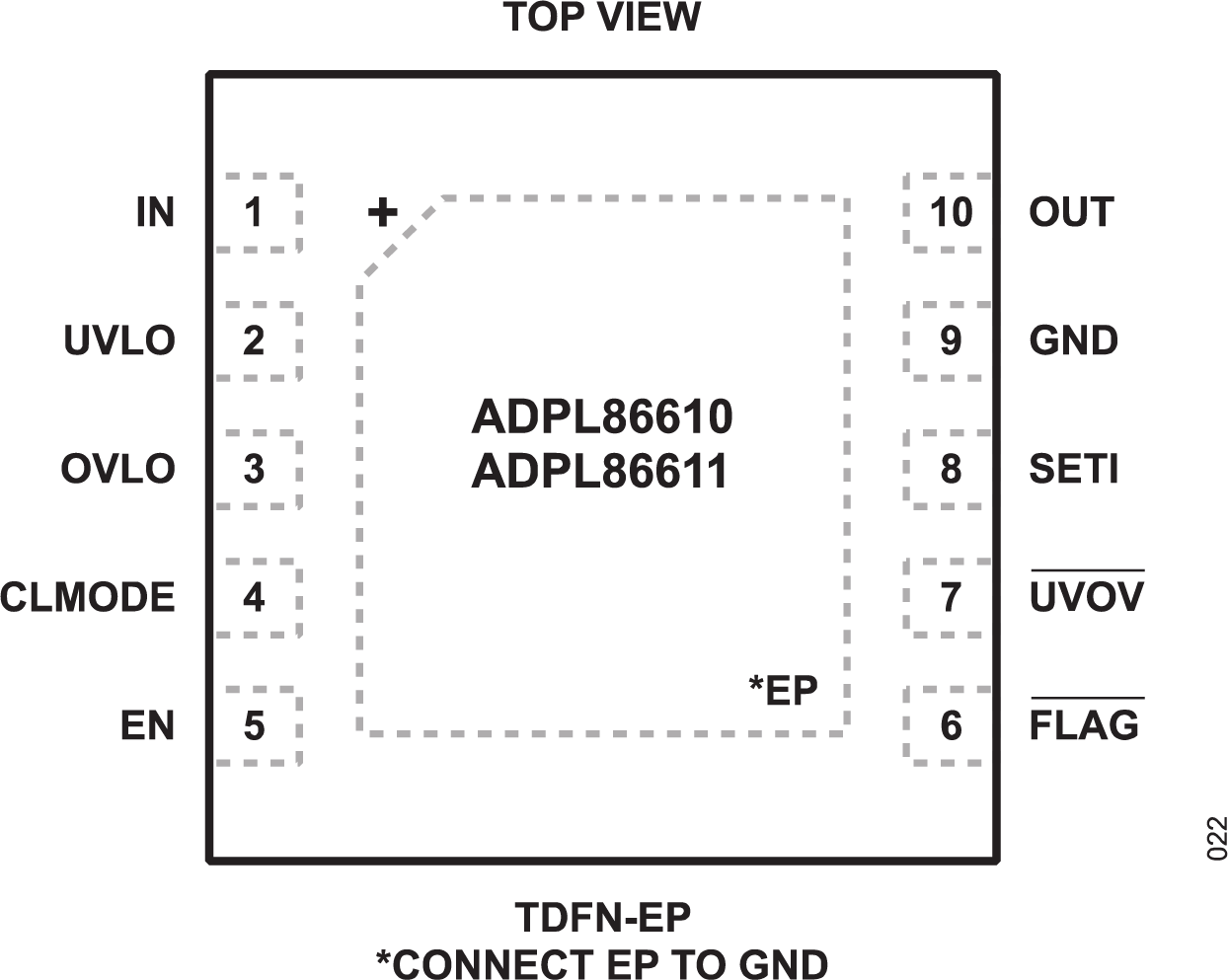

ADPL86610-11 Typical Application Circuit ADPL86610-11 Pin Configuration ADPL86610 Chip Illustration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts Product Life Cycle Description
MAX17612A PRODUCTION 4.5V to 60V, 250mA Current-Limiter with OV, UV, and Reverse Protection
MAX17612B PRODUCTION 4.5V to 60V, 250mA Current-Limiter with OV, UV, and Reverse Protection
MAX17612C PRODUCTION 4.5V to 60V, 250mA Current-Limiter with OV, UV, and Reverse Protection
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.


Evaluation Kits

eval board
ADPL86610EVKIT

Evaluates: ADPL86610 4.5V to 60V, 250mA, Current-Limiter with OV, UV, and Reverse Protection

Features and Benefits

  • 4.5V to 60V Operating-Voltage Range
  • Features a Transient-Voltage-Suppression (TVS) Diode across the Input and a Schottky Diode across the Output Terminals
  • Evaluates UVLO, OVLO, Three Current-Limit Types, and Current-Limit Threshold
  • Undervoltage-Lockout (UVLO) programmed to 4.5V
  • Overrvoltage-Lockout (OVLO) programmed to 36V
  • Jumper-Configurable Current-Limit (Selected as 250mA by Default)
  • Current-Limit Mode Set To Autoretry by default
  • Proven Printed Circuit Board (PCB) Layout
  • Fully Assembled and Tested

Product Details

The ADPL86610 evaluation kit (EV kit) is a fully assembled and tested circuit board that demonstrates the ADPL86610 4.5V to 60V, 250mA, current-limiter with overvoltage (OV), undervoltage (UV), and reverse protection in a 10-pin Thin dual flat no lead-exposed pad (TDFN-EP) package. The EV kit can be configured to demonstrate adjustable overvoltage, undervoltage, different current-limit types, and different current-limit thresholds.

ADPL86610EVKIT
Evaluates: ADPL86610 4.5V to 60V, 250mA, Current-Limiter with OV, UV, and Reverse Protection

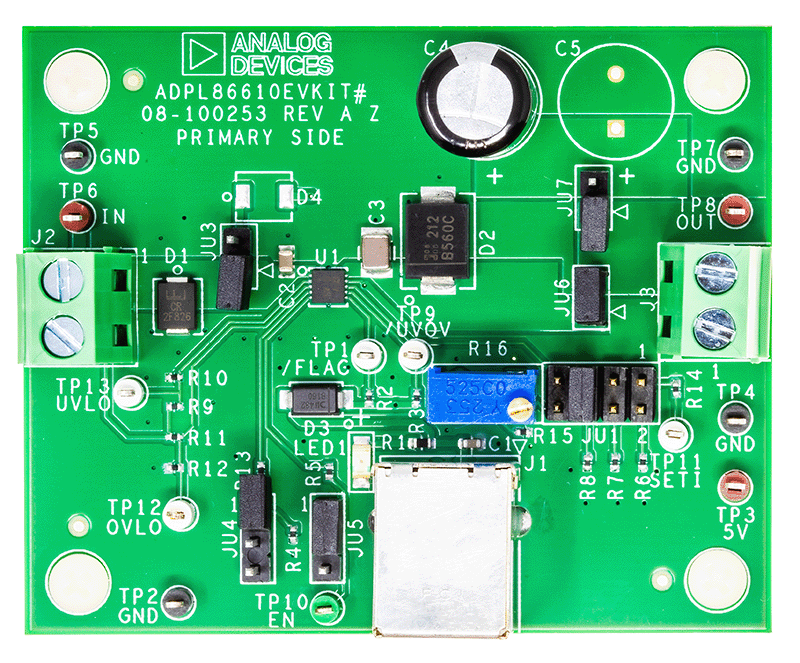

ADPL86610EVKIT Board Photo Angle View ADPL86610EVKIT Board Photo Top View ADPL86610EVKIT Board Photo Bottom View
