Overview

Features and Benefits

  • 2.8 mm × 5.0 mm module with integrated optical components
    • 660 nm LED, 880 nm IR LED, and photodiode
  • Fully integrated AFE, ADC, LED drivers, and timing core
  • Custom optical package for use under a glass window
  • Programmable 2-channel, 8.5 mA to 370 mA LED drivers
  • Provision to use external LED emitters
  • Low power
  • Specifically designed for ultralow direct optical reflections
  • Independent AFE settings per channel
  • I2C data and control interface
  • Burst accumulator enabling 20 bits per sample period
  • Sample to sample accumulator enabling up to 27 bits per data read
  • 16-bit or 32-bit register or FIFO readout per channel

Product Details

The ADPD144RI is a highly integrated, photometric front end optimized for photoplethysmography (PPG) detection of blood oxygenation (SpO2) by synchronous detection in red and infrared wavelengths. Synchronous measurement allows rejection of both dc and ac ambient light interference with extremely low power consumption.

The module combines highly efficient, light emitting diode (LED) emitters and a sensitive 4-channel, deep diffusion photodiode (PD1 to PD4) with a custom application specific integrated circuit (ASIC) in a compact package that provides optical isolation between the integrated LED emitters and the detection photodiodes to improve through tissue, signal-tonoise ratio (SNR).

The ASIC consists of a 4-channel analog front end (AFE) with two independently configurable datapaths with separate gain and filter settings, a 14-bit analog-to-digital converter (ADC) with a burst accumulator, two flexible, independently configurable, LED drivers, and a digital control block. The digital control block provides AFE and LED timing, signal processing, and communication. Data output and functional configuration occur over a 1.8 V I2C interface.

Applications

  • Optical heart rate monitoring
  • Reflective SpO2 measurement

Product Categories

Markets and Technologies

For additional ADI Healthcare Products and related information, please visit www.analog.com/healthcare.

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-not-recommended Not Recommended for New Designs

This designates products ADI does not recommend broadly for new designs.

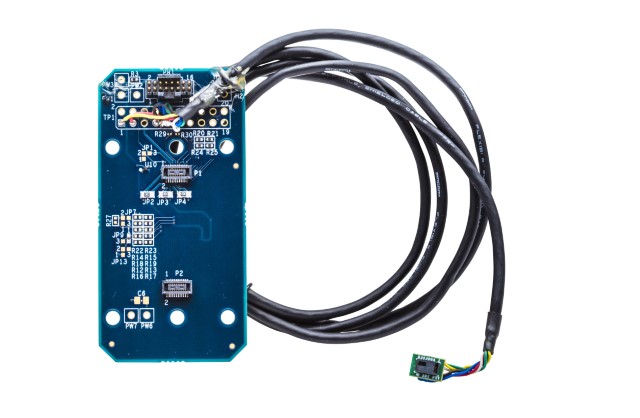

Evaluation Kits (1)

Documentation & Resources

  • View All (8)
  • 3rd Party Solutions (1)
  • Data Sheets (1)
  • User Guides (1)
  • Webcasts (2)
  • Technical Articles (3)
    • Document Type

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    ADPD144RI-ACEZ-RL Material Declaration Reliability Data 12-Lead LGA_CAV (2.8mm x 5mm x 1.35mm)
    ADPD144RI-ACEZ-RL7 Material Declaration Reliability Data 12-Lead LGA_CAV (2.8mm x 5mm x 1.35mm)
