Features

Input supply voltage range: 2.15 V to 6.50 V
Operates down to 2.00 V
Ultralow 240 nA quiescent current with no load
Selectable output voltages of 1.2 V to 3.6 V, or 0.8 V to 5.0 V
±1.5% output accuracy over the full temperature range in pulse-width modulation (PWM) mode
Selectable hysteresis mode or PWM operation mode
Output current
- Up to 50 mA in hysteresis mode
- Up to 500 mA in PWM mode

VINOK flag to monitor input battery voltage
100% duty cycle operation mode
2 MHz switching frequency with optional synchronization input from 1.5 MHz to 2.5 MHz
Quick output discharge (QOD) option
UVLO, OCP, and TSD protection
9-ball, 1.65 mm × 1.87 mm WLCSP
Junction temperature: −40°C to +125°C

Additional Details

The ADP5303 is high efficiency, ultralow quiescent current step-down regulator that draws only 240 nA quiescent current to regulate the output at no load.

The ADP5303 runs from an input voltage of 2.15 V to 6.50 V, allowing the use of multiple alkaline or NiMH cells, Li-Ion cells, or other power sources. The output voltage is selectable from 0.8 V to 5.0 V by an external VID resistor and a factory fuse. The total solution requires only four tiny external components.

The ADP5303 can operate between hysteresis mode and PWM mode via the SYNC/MODE pin. In hysteresis mode, the regulator achieves excellent efficiency at less than 1 mW and provides up to 50 mA of output current. In PWM mode, the regulator produces a lower output ripple and supplies up to 500 mA of output current. The flexible configuration capability during operation of the device enables very efficient power management to meet both long battery life and low system noise requirements.

The ADP5303 integrates an ultralow power comparator with a factory programmable voltage reference to monitor the input battery voltage. The regulator runs at a 2 MHz switching frequency in PWM mode and the SYNC/MODE pin can be synchronized to an external clock from 1.5 MHz to 2.5 MHz.

Other key features in the ADP5303 include separate enabling, QOD, and safety features such as overcurrent protection (OCP), thermal shutdown (TSD), and input undervoltage lockout (UVLO).

The ADP5303 is available in 9-ball, 1.65 mm × 1.87 mm WLCSP package rated for the −40°C to +125°C junction temperature range.

Applications

Energy (gas, water) metering
Portable and battery-powered equipment
Medical applications
Keep-alive power supply

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $1.12

Technical Documents 3

ADP5303: 50 mA/500 mA, Ultralow Power Step-Down Regulator With Battery Voltage Monitor Data Sheet (Rev.B) 08/31/2015

UG-881: Evaluating the ADP5303 Ultralow Step-Down Regulator (Rev.0) 12/03/2015

AN-1406: Designing an Inverting Power Supply Using the ADP5300/ADP5301/ ADP5302/ADP5303 Ultralow Power, Step-Down DC-to-DC Regulators (Rev.0) 07/25/2016

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADP5303ACBZ-1-R7	9-Ball WLCSP (1.65mm x 1.87mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADP5303ACBZ-2-R7	9-Ball WLCSP (1.65mm x 1.87mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

ADP5303ACBZ-1-R7
Pin/Package Drawing
9-Ball WLCSP (1.65mm x 1.87mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADP5303ACBZ-2-R7
Pin/Package Drawing
9-Ball WLCSP (1.65mm x 1.87mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

PCN/PDN Information

Filter by Model

Part Models

Product Lifecycle

PCN

Dec 4, 2015

- 15_0216

ADP5300,ADP5301,ADP5302,ADP5303,ADP5304 Die Revision

ADP5303ACBZ-1-R7

PRODUCTION

ADP5303ACBZ-2-R7

PRODUCTION

pdf

PCN15_0216_Form

xls

Material_Report

Filter by Model

Part Models

Product Lifecycle

PCN

Dec 4, 2015

- 15_0216

ADP5300,ADP5301,ADP5302,ADP5303,ADP5304 Die Revision

ADP5303ACBZ-1-R7

PRODUCTION

ADP5303ACBZ-2-R7

PRODUCTION

pdf

PCN15_0216_Form

xls

Material_Report

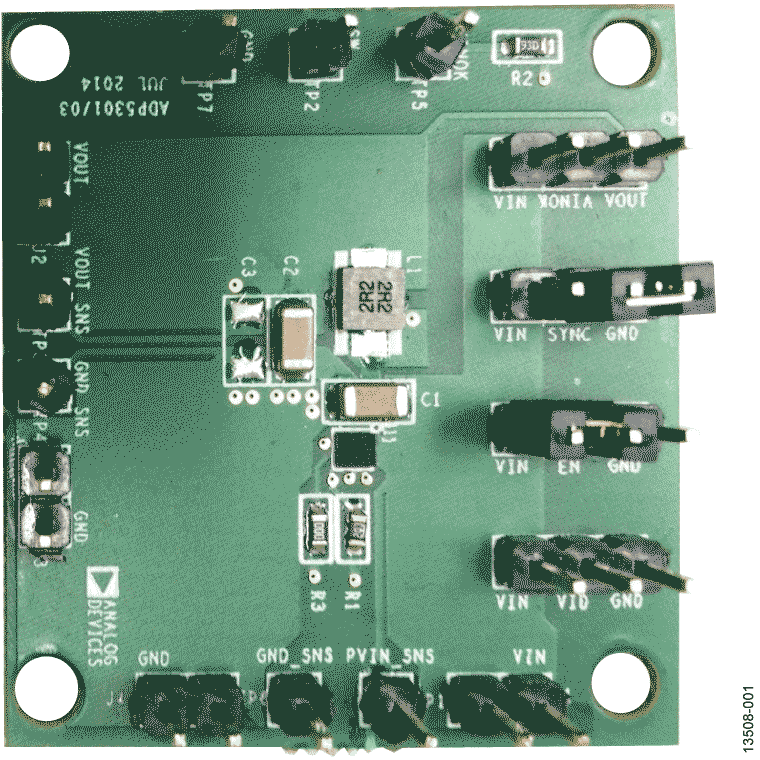

EVAL-ADP5303
