Overview

Features and Benefits

  • Input voltage range: 4.5 V to 60 V
  • Adjustable output voltage range: 0.8 V to VIN
  • Factory programmable fixed output voltage options of 3.3 V and 5.0 V
  • Continuous output current up to 50 mA
  • Adjustable peak current limit up to 140 mA
  • Pulse frequency modulation (PFM) control
  • Very high efficiency
    • 90% at VIN = 9 V, VOUT = 3.3 V, IOUT = 10 mA
    • 87% at VIN = 9 V, VOUT = 3.3 V, IOUT = 1 mA
  • Low shutdown current: <4 µA
  • Low quiescent current: 12 µA in sleep mode
  • 100% duty cycle operation
  • Undervoltage lockout (UVLO)
  • No external compensation required
  • Enable input with precision thresholds
  • Programmable soft start
  • Power-good output
  • Thermal shutdown (TSD) protection
  • 8-lead LFCSP package

Product Details

The ADP2360 is a high efficiency, high input voltage, discontinuous conduction mode (DCM) synchronous, step-down, dc-to-dc switching regulator. The ADP2360 operates with a wide input voltage range from 4.5 V to 60 V and can source up to 50 mA continuous output current, making it ideal for regulating power from a variety of voltage sources in space-constrained applications. The ADP2360 is available with an adjustable output (0.8 V to VIN) or in 3.3 V and 5.0 V factory-programmable fixed output voltage models.

The ADP2360 uses a single-pulse PFM architecture with adjustable IPEAK control to minimize the input and output ripple. The adjustable IPEAK current limit allows the ADP2360 to optimize the efficiency for the application operating conditions and minimize the compatible inductor size.

The ADP2360 further offers a power-good (PG) pin to indicate when the output voltage is good. Other key features include 100% duty cycle operation, precision enable control, external soft start control, undervoltage lockout, and thermal shutdown.

The ADP2360 requires no external compensation and the solution for the fixed output voltage options requires a minimum of three external components. The ADP2360 is available in a 3 mm × 3 mm, 8-lead LFCSP package with an operating junction temperature range from −40°C to +125°C.

Applications

  • 4 mA to 20 mA loop powered systems
  • HART modems
  • Building automation
  • Distributed power systems
  • Industrial control supplies
  • Other high VIN, low IOUT systems

Product Categories

Markets and Technologies

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

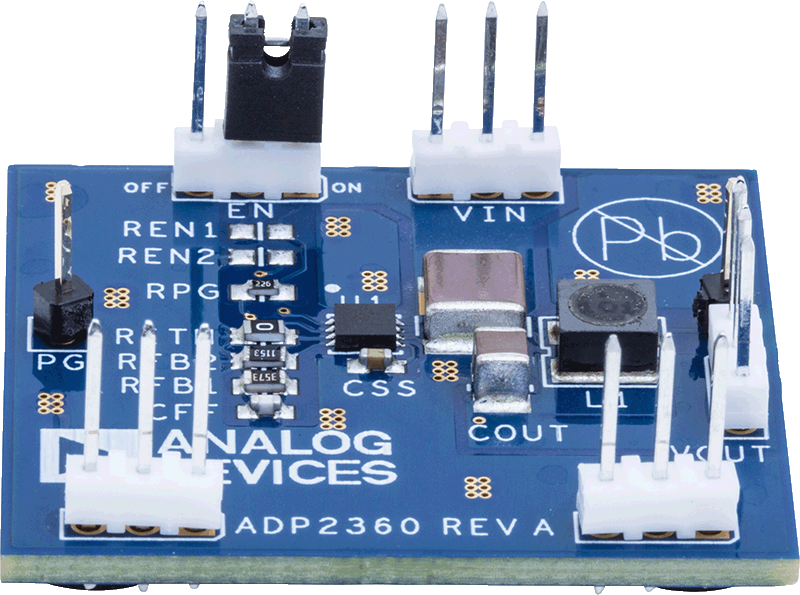

Evaluation Kits (1)
