ADMV1550

RECOMMENDED FOR NEW DESIGNS

15 GHz to 65 GHz, GaAs, MMIC, Double Balanced Mixer

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: Starting From $95.14

Viewing:

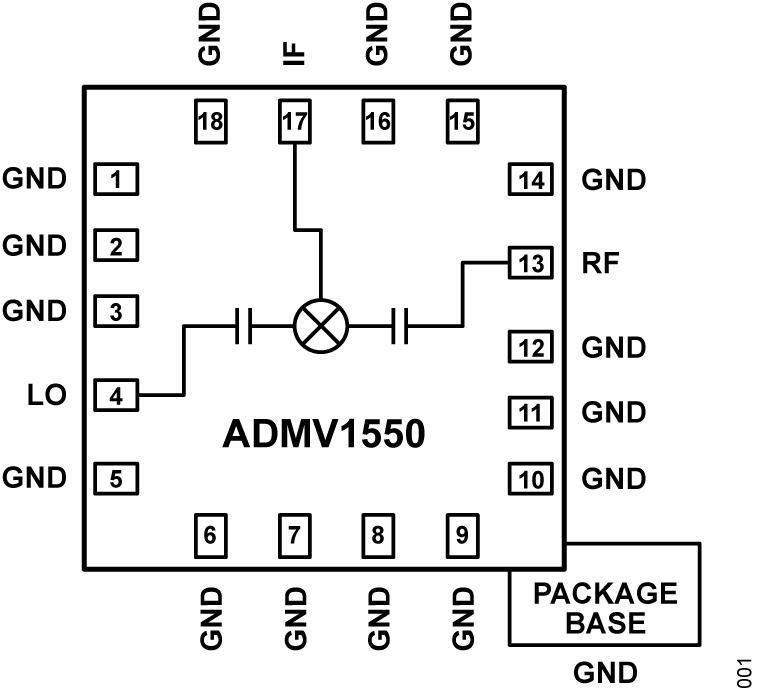

Overview

Conversion loss: 8 dB typical at 15 GHz to 50 GHz
Input IP3 (downconverter): 20 dBm typical at 15 GHz to 50 GHz
Input IP2 (downconverter): 40 dBm typical at 15 GHz to 50 GHz
Input P1dB (upconverter): 11 dBm typical

LO to RF isolation: 35 dB typical
LO to IF isolation: 35 dB typical
RF to IF isolation: 45 dB typical at 15 GHz to 50 GHz
18-terminal, RoHS compliant, 4 mm × 4 mm LGA package

The ADMV1550 is a general-purpose, double balanced mixer in a leadless, RoHS compliant, surface-mount technology (SMT) package that can be used as an upconverter or downconverter between 15 GHz and 65 GHz. The wide bandwidth from DC to 20 GHz on the intermediate frequency (IF) port allows flexible frequency planning to avoid spurious products. This mixer is fabricated in a gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC) process and requires no external components or matching circuitry. The ADMV1550 provides excellent local oscillator (LO) to RF and LO to IF suppression due to optimized balun structures. The mixer operates with a typical LO amplitude 15 dBm. The RoHS-compliant ADMV1550 eliminates the need for wire bonding, allowing the use of surface-mount manufacturing techniques. The ADMV1550 is available in a compact 4 mm × 4 mm, 18-terminal land grid array (LGA) package and operates over −40°C to +85°C temperature range.

APPLICATIONS

Microwave and very small aperture terminal (VSAT) radios

Test equipment

Military electronic warfare (EW)

Electronic countermeasure (ECM)

Command, control, communications, and intelligence

Part Models: 2
1ku List Price: Starting From $95.14

Documentation

Data Sheet 1

ADMV1550: 15 GHz to 65 GHz, GaAs, MMIC, Double Balanced Mixer Data Sheet (Rev.0) 08/21/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADMV1550ACCZ	18-Terminal Land Grid Array [LGA]	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADMV1550ACCZ-R7	18-Terminal Land Grid Array [LGA]	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

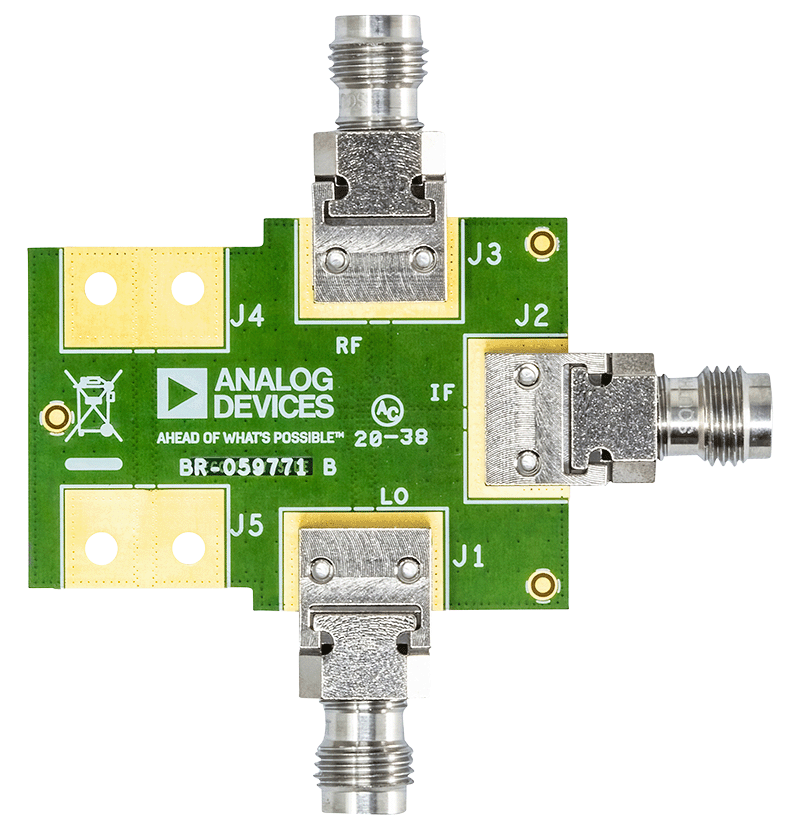

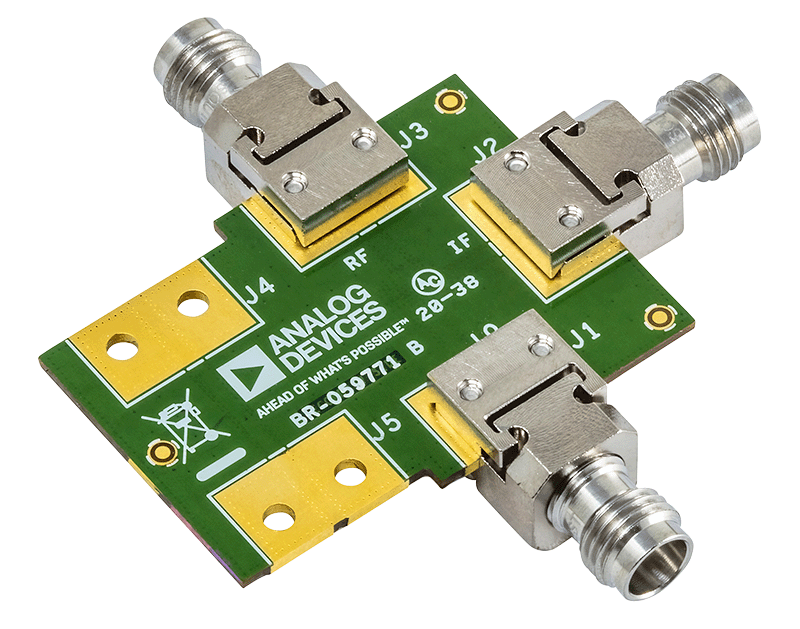

Evaluating the ADMV1550 GaAs, MMIC, Double Balanced Mixer

Buy Now View Details

Product Details

The circuit board used in the application must use RF circuit design techniques. Signal lines must have 50 Ω impedance, and the package grounds leads and exposed pad must be connected directly to the ground plane similarly to that shown in Figure 122. Use a sufficient number of via holes to connect the top and bottom ground planes. The evaluation circuit board is available from Analog Devices, Inc., upon request.
