ADM4210

PRODUCTION

Low Voltage Hot Swap Controller in 6-pin TSOT Package

Data Sheet (Rev. A) Product Selection Table

Part Models: 2
1ku List Price: Starting From $2.19

Viewing:

Overview

Allows Safe Board Insertion and Removal from a Live Backplane
Adjustable Analog Current Limit with Circuit Breaker
Fast Response Limits Peak Fault Current
Automatic Retry or Latch Off On Current Fault
Adjustable Supply Voltage Power-Up Rate

High Side Drive for External FET Switch
Controls Supply Voltages from 2.7V to 16.5V
In-Built Under-voltage Lockout
Adjustable Over-voltage Protection
Low profile (1mm) TSOT Package
Pin for Pin Compatible with LTC4210-1 and LTC4210-2

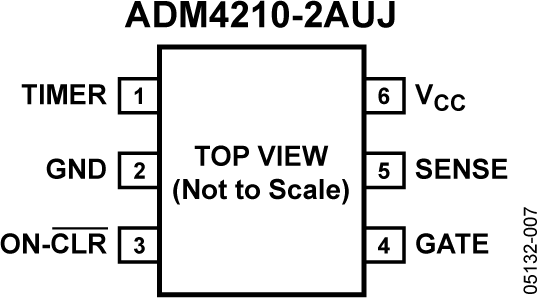

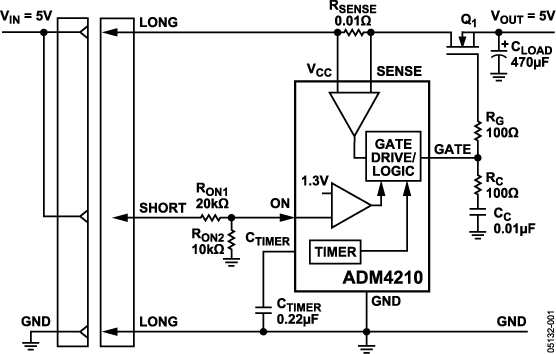

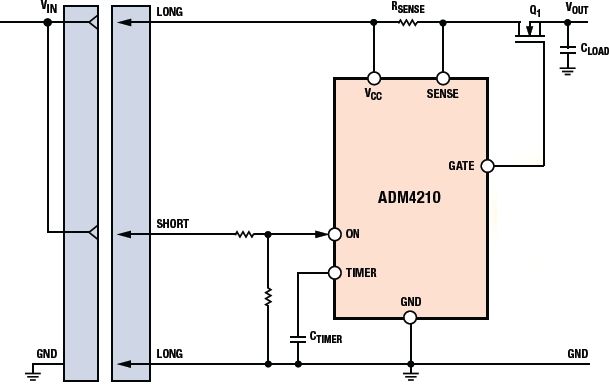

The ADM4210 is a 6-pin TSOT Hot Swap controller that allows a board to be safely inserted and removed from a live backplane.

An internal charge pumped driver controls the GATE of an external high side N-channel FET for a supply voltage ranging from 2.7V to 16.5V. The ADM4210 provides the initial timing cycle and allows the GATE to be ramped up at a capacitor adjustable rate.

The ADM4210 features a fast current limit loop providing active current limiting together with a circuit breaker timer. The signal at the ON pin turns the part on and off and a low on the pin will reset the device.

This part is available in two options: the ADM4210-1 will automatically retry after an over-current fault and the ADM4210-2 will latch off after an over-current fault.

Part Models: 2
1ku List Price: Starting From $2.19

Documentation

Data Sheet 1

ADM4210: Hot Swap Controller in 6-Lead TSOT Package Data Sheet (Rev.A) 11/13/2006

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADM4210-1AUJZ-RL7	6-Lead TSOT	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADM4210-2AUJZ-RL7	6-Lead TSOT	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jan 26, 2010 - 10_0007 Halogen Free Material Change for TSOT Products
		Material_Report PCN10_0007_Form TSOT Qualification Data
ADM4210-1AUJZ-RL7	PRODUCTION
ADM4210-2AUJZ-RL7	PRODUCTION
Nov 16, 2009 - 06_0157 Qualification of the 8" H6 Thin Film BiPolar Wafer Fab Process at Analog Devices, Limerick, Ireland
		Material_Report PCN06_0157_Form RQR03599A
ADM4210-1AUJZ-RL7	PRODUCTION
ADM4210-2AUJZ-RL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
