Features and Benefits
- Triaxial, digital gyroscope
- ±125°/sec, ±500°/sec, ±2000°/sec dynamic range models
- 2.3°/hr in-run bias stability (ADIS16505-1)
- 0.13°/√hr angular random walk, x-axis and y-axis, 1 σ (ADIS16505-1)
- ±0.25° axis to axis misalignment error
- Triaxial, digital accelerometer, ±78.4 m/sec2 dynamic range
- 26.5 μm/sec2 in-run bias stability (x-axis and y-axis)
- Triaxial, delta angle and delta velocity outputs
- Factory calibrated sensitivity, bias, and axial alignment
- Calibration temperature range: −40°C to +85°C
- SPI compatible data communications
- Programmable operation and control
- Automatic and manual bias correction controls
- Data ready indicator for synchronous data acquisition
- External sync modes: direct, scaled, and output
- On demand self-test of inertial sensors
- On demand self-test of flash memory
- Single-supply operation (VDD): 3.0 V to 3.6 V
- 14,700 m/sec2 mechanical shock survivability
- Operating temperature range: −40°C to +105°C
The ADIS16505 is a precision, miniature microelectromechanical system (MEMS) inertial measurement unit (IMU) that includes a triaxial gyroscope and a triaxial accelerometer. Each inertial sensor in the ADIS16505 combines with signal conditioning that optimizes dynamic performance. The factory calibration characterizes each sensor for sensitivity, bias, alignment, linear acceleration (gyroscope bias), and point of percussion (accelerometer location). As a result, each sensor has dynamic compensation formulas that provide accurate sensor measurements over a broad set of conditions.
The ADIS16505 provides a simplified, cost effective method for integrating accurate, multi-axis inertial sensing into industrial systems, especially when compared with the complexity and investment associated with discrete designs. All necessary motion testing and calibration are part of the production process at the factory, greatly reducing system integration time. Tight orthogonal alignment simplifies inertial frame alignment in navigation systems. The serial peripheral interface (SPI) and register structure provide a simple interface for data collection and configuration control.
The ADIS16505 is available in a 100-ball, ball grid array (BGA) package that is approximately 15 mm × 15 mm × 5 mm.
- Navigation, stabilization, and instrumentation
- Unmanned and autonomous vehicles
- Smart agriculture and construction machinery
- Factory/industrial automation, robotics
- Virtual/augmented reality
- Internet of Moving Things
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (2)

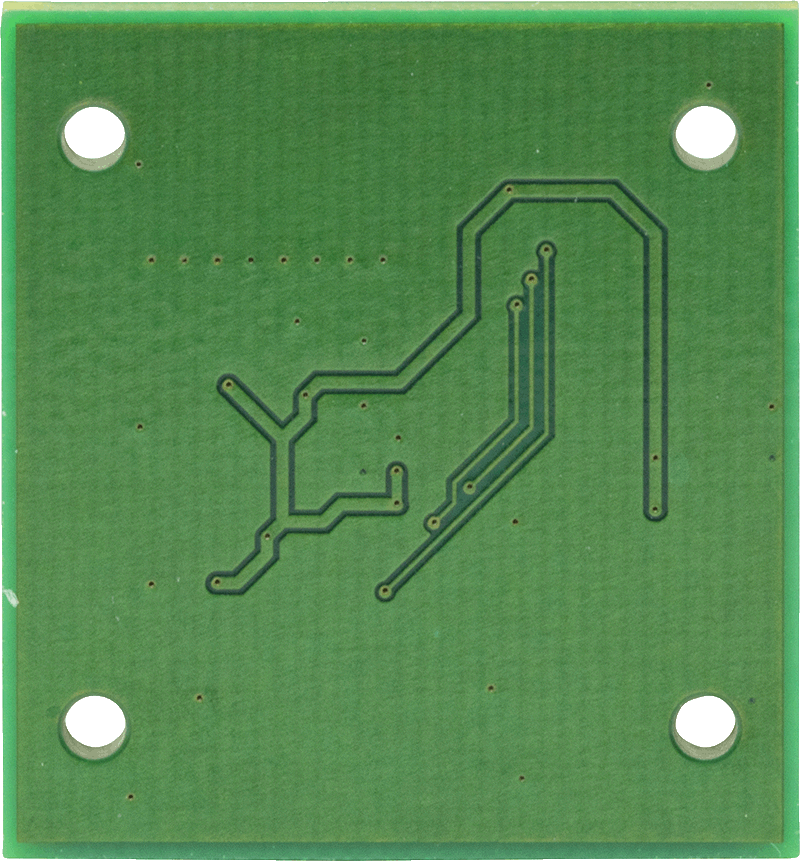

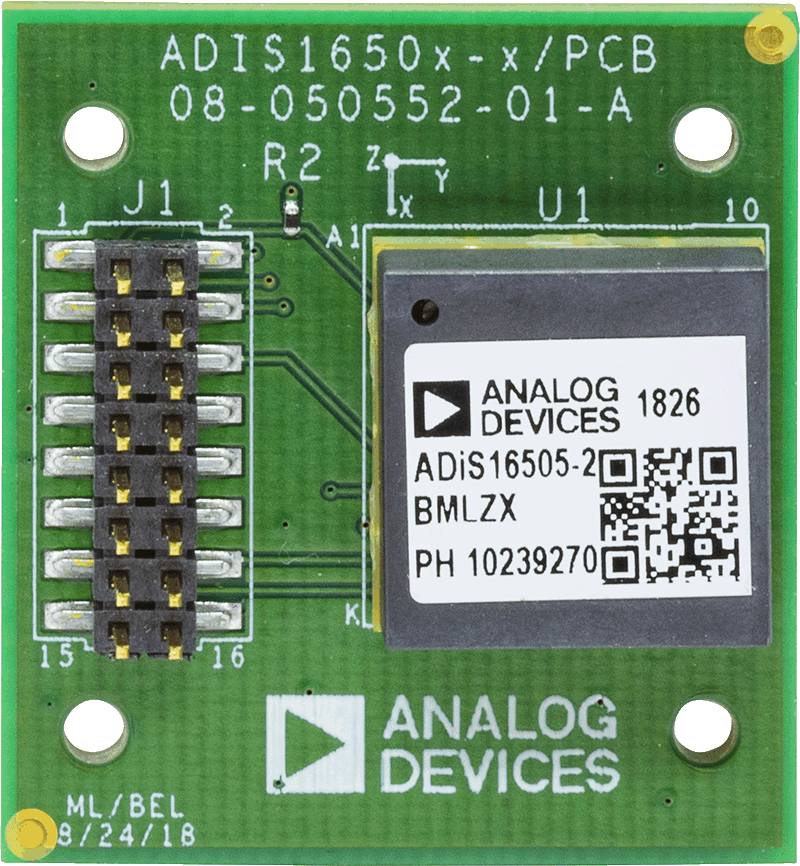

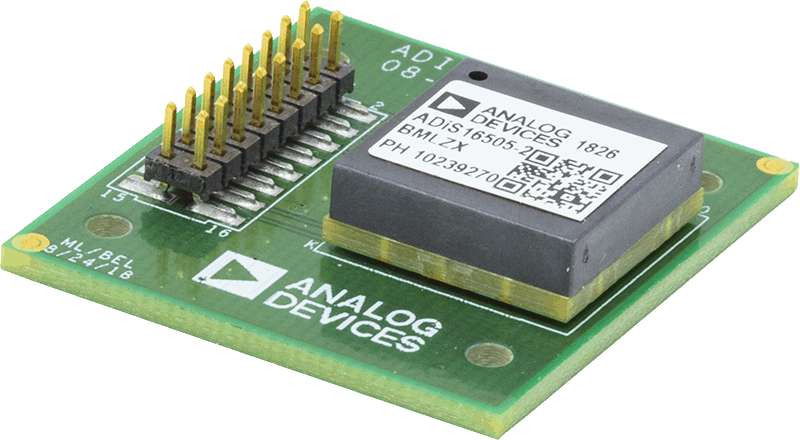

The ADIS16505-x/PCBZ breakout boards provide a convenient method for establishing a prototype connection between each ADIS16505-xBMLZ IMU model and an embedded processor platform. Each ADIS16505-x/PCBZ breakout board connects to J1 on the EVAL-ADIS2 evaluation system, as well.
Features & Benefits
- Small size: 33.25mm x 30.75mm
- Convenient connector: 16-pin (2x8), 2mm-pitch
- Mounting holes (2.3mm diameter) in each corner (4x)
- ADIS16505-1/PCBZ includes an ADIS16505-1BMLZ IMU
- ADIS16505-2/PCBZ includes an ADIS16505-2BMLZ IMU
- ADIS16505-3/PCBZ includes an ADIS16505-3BMLZ IMU
The EVAL-ADIS-FX3 is the latest addition to the iSensor evaluation portfolio and was designed from the ground up to provide users with an easy-to-use solution for capturing reliable inertial data in lab and characterization environments. The EVAL-ADIS-FX3 incorporates the ability to capture inertial sensor data at maximum throughput while interfacing with external test equipment and reacting to external triggers.
In addition to launching a redesigned hardware platform, we’ve also developed a robust API that allows users to quickly build custom applications that capture reliable sensor data. We’ve included many useful features into the API that enable designers to characterize sensor performance in any .NET compatible environment.
- Inertial sensing
- Autonomous driving
- Platform stabilization
Features & Benefits
- Real-time sampling of IMU at full sample rate with no loss of data guaranteed.
- No external power needed. (Can be powered from USB port.)
- Completely open source API, Firmware, and Evaluation GUI.
- Schematics available
- API includes a wrapper library for interfacing to MATLAB, Python, LabView.
Documentation & Resources
