ADH943AS

Name: adh943as
Brand: Analog Devices
Availability: InStock

RECOMMENDED FOR NEW DESIGNS

Aerospace, >1.5 W (34 dBm), 24 GHz to 34 GHz Power Amplifier

Data Sheet (Rev. A) Product Selection Table

Part Models: 2
1ku List Price: Starting From $1295.36

Viewing:

Overview

High frequency capable hermetic package (ADH943A-701LSH7)
High saturated output power (P_SAT): 34 dBm
High output IP3: 39 dBm
High gain: 23 dB
DC supply: 5.5 V at 1300 mA

No external matching needed
Space Qualification & Testing:

HMC7874PM5E: Screening derived from MIL-PRF-38535, Class Level S
ADH943A-701LHS7: Screened in accordance with MIL-PRF-38535, Class Q

Part Models: 2
1ku List Price: Starting From $1295.36

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADH943A-701LSH7	18-terminal LCC_HS (7 mm x 7 mm x 1.52 mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

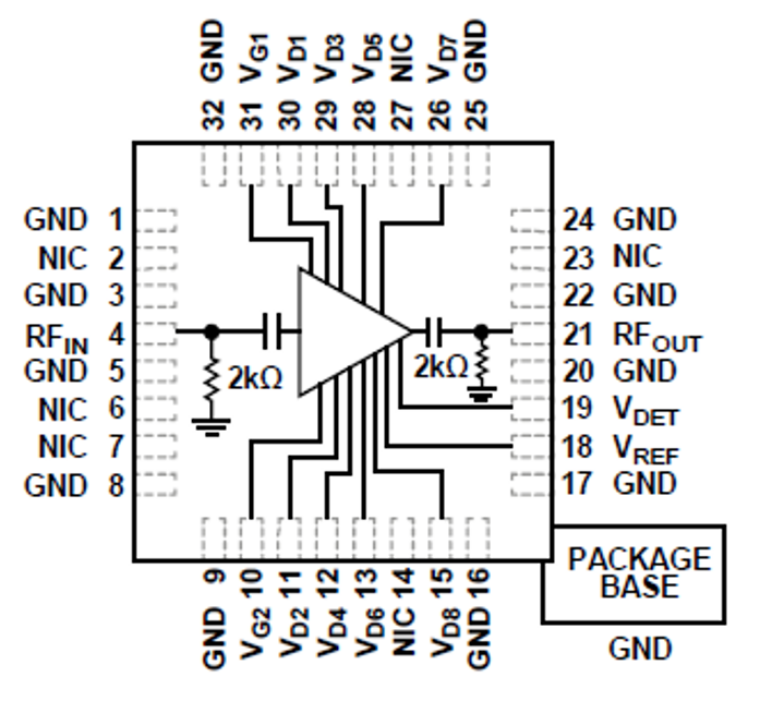

HMC7874PM5E	32-Lead LFCSP (5mm x 5mm w/ EP)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

S-Parameter 1

ADH943AS S-Parameter

Evaluation Kits

Evaluating ADH943AS Aerospace, >1.5 W (34 dBm), 24 GHz to 34 GHz Power Amplifier

Buy Now View Details

Features and Benefits

High frequency capable hermetic package (ADH943A-701LSH7)
High saturated output power (P_SAT): 34 dBm
High output IP3: 39 dBm
High gain: 23 dB
DC supply: 5.5 V at 1300 mA
No external matching needed
Space Qualification & Testing:

HMC7874PM5E: Screening derived from MIL-PRF-38535, Class Level S
ADH943A-701LHS7: Screened in accordance with MIL-PRF-38535, Class Q

Product Details

The EVAL-ADH943AS evaluation board supports evaluation of the ADH943AS, a 24 GHz to 34 GHz power amplifier. The board provides 50 Ω RF input and output signal paths for connection to standard RF laboratory test equipment, along with connections for the required DC bias and detector output. The ADH943AS RF input and output are internally matched to 50 Ω, so no external RF matching components are required for normal device operation. The evaluation board includes the biasing and supply-decoupling circuitry needed to support device characterization. For full details on the ADH943AS, see the ADH943AS data sheet when using the EVAL-ADH943ALSH7.
