Analog and Hybrid Beamforming
Multi-Channel Beamforming Integrated Circuits (BFICs) are the key enabler of single-beam phased array radar and multi-beam hybrid systems. With a growing portfolio of up/downconverters, GaN power amplifiers and T/R modules, clocking, and power management solutions, ADI offers a complete RF signal chain portfolio.
The Value of Analog and Hybrid Beamforming
The flexible approach to analog and hybrid beamforming offers the ability to realize highly capable arrays with reduced size, weight, and power relative to fully digital arrays.
Flexible array architecture implementation
Reduced SWaP
Reduced colling requirements
Over-the-Air Pattern Measurements for a 32-Element Hybrid Beamforming Phased Array
This paper summarizes measured receive antenna performance for a commercially available 32-element phased array demonstrator.

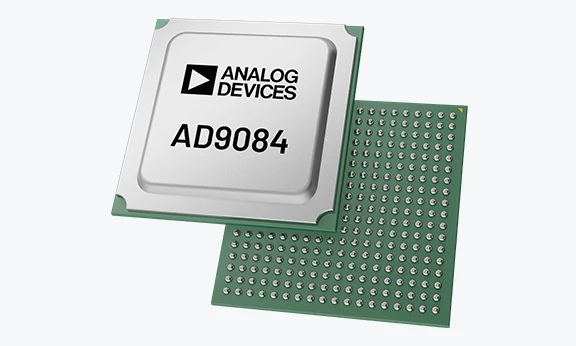

Introducing Apollo MxFE ™: 20 GSPS software-defined radio for radar/EW/COMS/ISR applications.
This monolithic 16 nm CMOS device utilizes state-of-the-art high dynamic range ADC and DAC cores with the best spurious, free dynamic range, and noise spectral density available on the market today.
Meet Our Industry-Leading Beamformers

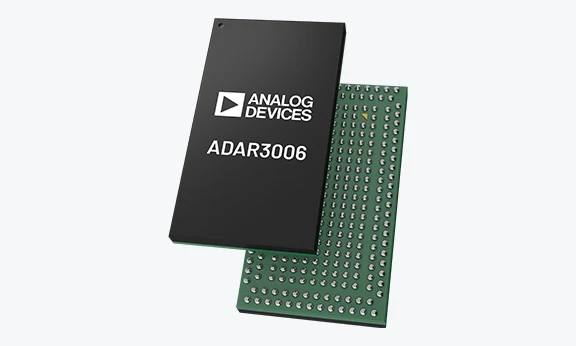

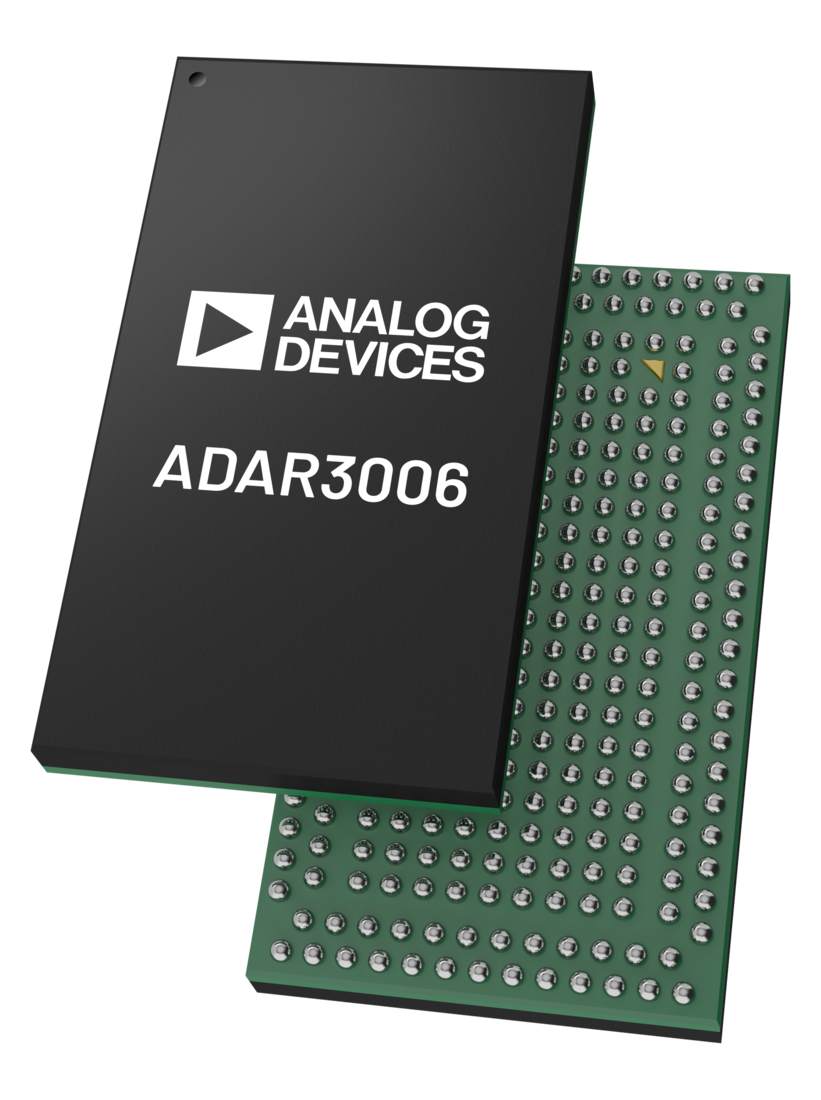

ADI expands true time delay unit portfolio with the ADAR3006. Discover ADI’s newest 10.7 GHz to 12.75 GHz 4-beam/4-element Ku band beamformer.
