TMCM-3313

OBSOLETE PRODUCT

产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • 3-Axes Stepper Motor Control
  • CoE CiA-402 Drive Profile
  • Linear ramps, SixPoint™ ramps and
  • s-shaped ramps selectable
  • Closed Loop Encoder Support
  • CoolStep™
  • StallGuard2™
  • StealthChop™

The TMCM-3313 is a triple axis stepper motor controller/driver module for sensorless load dependent current control. The device is powered by ADI Trinamic StallGuard2™, CoolStep™, SpreadCycle™, StealthChop™ technology and has a SixPoint™ and s-shaped ramp generator. The TMCM-3313 is capable of driving up to 4.2A of current from each output (with proper heatsinking). It is designed for an operating voltage of 18 to 53V. The device provides a USB, EtherCAT and 3 encoder interfaces. An integrated protocol processor supplies a high level CANopen® over EtherCAT communication.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.

More about the TMCL-IDE

Applications

  • Laboratory Automation
  • Manufacturing
  • Semiconductor Handling
  • Robotics
  • Factory Automation
  • Test & Measurement
  • Life Science
  • Biotechnology
  • Liquid Handling

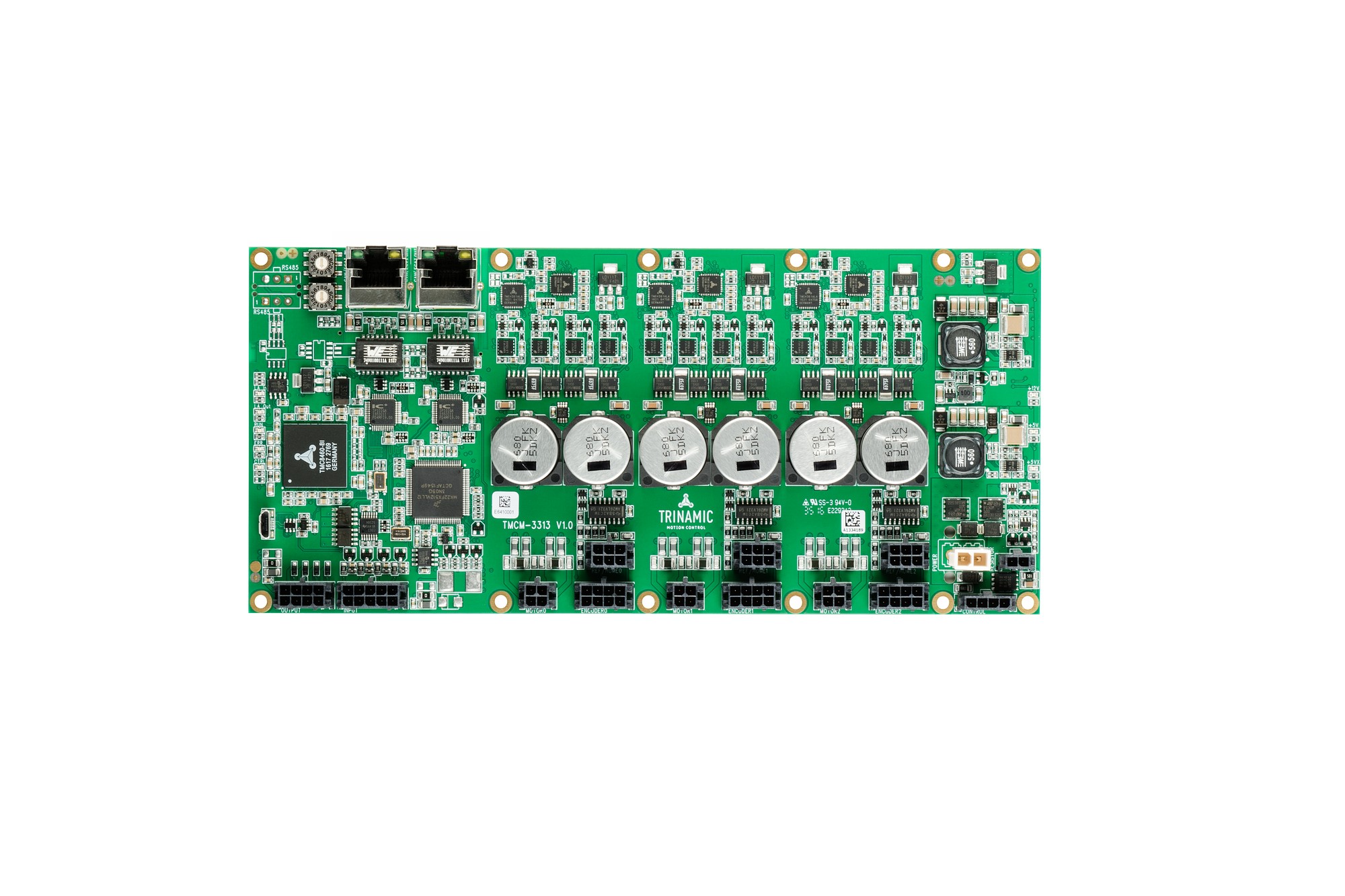

TMCM-3313
