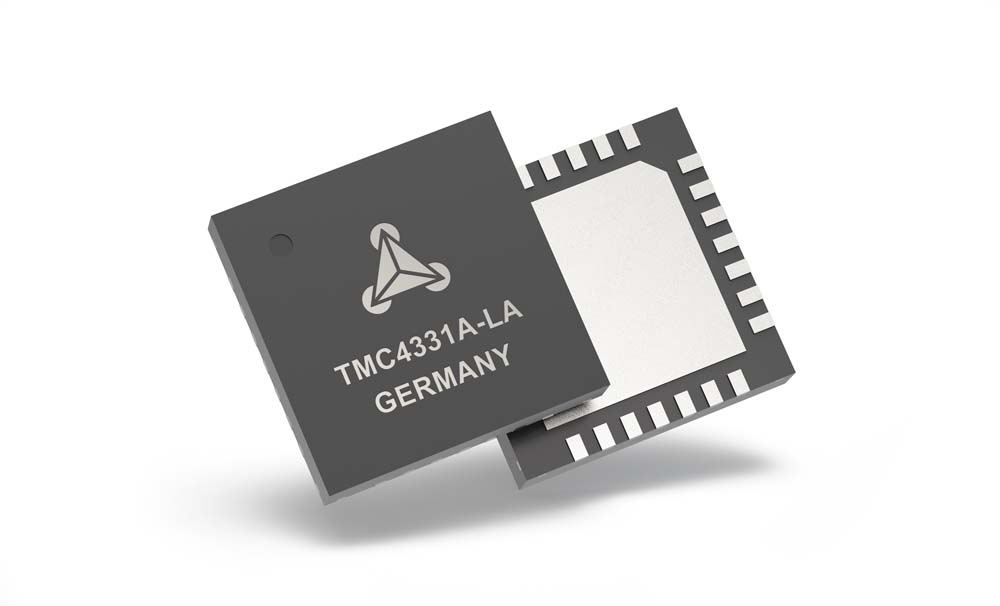

TMC4331
OBSOLETE PRODUCT
Viewing:
产品详情
- SPI Interfaces for µC with easy-to-use protocol.
- SPI Interfaces for SPI motor stepper drivers.
- Integrated ChopSync™ and dcStep™ support.
- Internal ramp generator generating S-shaped ramps or sixPoint™ ramps supporting on-the-fly changes
- Controlled PWM output.
- Reference switch handling.
- Hardware and virtual stop switches.
- Extensive Support of TMC stepper motor drivers.
- Electronic gearing support.
The TMC4331 is a stepper motor servo controller with S-shaped ramps for laboratory automation, 3D-Printing, Scanners and other automated equipment applications. The device is usable as a trapezoidal and advanced SixPoint™ ramp generator and it is powered by Trinamic DcStep™ technology. The TMC4331 is designed for an operating voltage of 3.3V. The device provides a SPI controller and SPI, S/D driver interface.
APPLICATIONS- Textile, sewing machines
- CCTV, security
- Printers, scanners
- ATM, cash recycler
- Office automation
- POS
- Factory automation
- Lab automation
- Pumps and valves
- Heliostat controllers
- CNC machines
- Robotics
参考资料
这是最新版本的数据手册
硬件生态系统
| 部分模型 | 产品周期 | 描述 |
|---|---|---|
| 运动和接口控制器 1 | ||
| TMC4361 | 推荐新设计使用 | S-shaped ramp and SixPoint ramp motion controller for stepper motors with SPI and Step/Dir interfaces, and an encoder interface for closed-loop operation |
