DS1643
searchIcon

DS1643

非易失时钟RAM

更多 showmore-icon

产品详情
特性

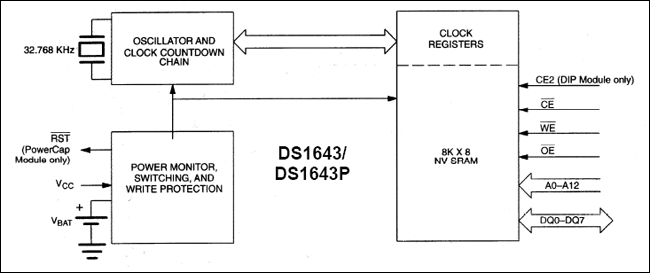

  • Integrated NV SRAM, Real-Time Clock, Crystal, Power-Fail Control Circuit and Lithium Energy Source
  • Clock Registers are Accessed Identically to the Static RAM. These Registers Reside in the Eight Top RAM Locations
  • Totally Nonvolatile with Over 10 Years of Operation in the Absence of Power
  • Access Times of 85ns and 100ns
  • BCD-Coded Year, Month, Date, Day, Hours, Minutes, and Seconds with Leap Year Compensation Valid Up to 2100
  • Power-Fail Write Protection Allows for ±10% VCC Power Supply Tolerance
  • Lithium Energy Source is Electrically Disconnected to Retain Freshness Until Power is Applied for the First Time
  • DS1643 Only (DIP Module)
    • Standard JEDEC Byte-Wide 8K x 8 RAM Pinout
    • DS1643P Only (PowerCap Module Board)
      • Surface Mountable Package for Direct Connection to PowerCap Containing Battery and Crystal
      • Replaceable Battery (PowerCap)
      • Power-Fail Output
      • Pin-for-Pin Compatible with Other Densities of DS164XP Timekeeping RAM
