DS1556P

1M非易失、Y2K兼容时钟RAM

Viewing:

产品详情

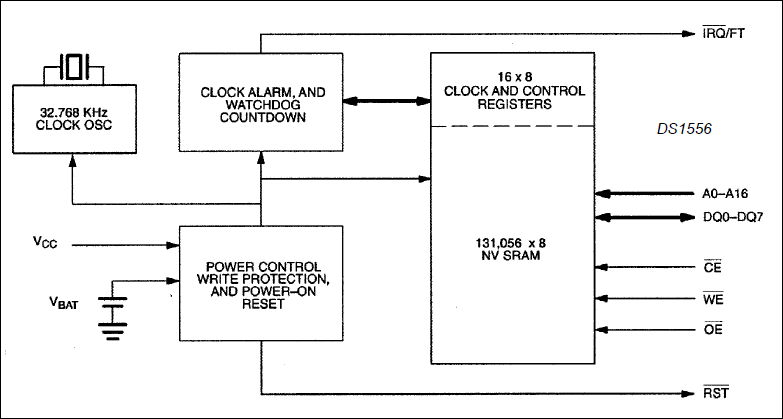

Integrated NV SRAM, Real-Time Clock (RTC), Crystal, Power-Fail Control Circuit, and Lithium Energy Source
Clock Registers are Accessed Identically to the Static RAM; These Registers Reside in the 16 Top RAM Locations
Century Byte Register (i.e., Y2K Compliant)
Totally Nonvolatile with Over 10 Years of Operation in the Absence of Power
Precision Power-On Reset
Programmable Watchdog Timer and RTC Alarm
BCD-Coded Year, Month, Date, Day, Hours, Minutes, and seconds with Automatic Leap-Year Compensation Valid Up to the Year 2100
Battery Voltage-Level Indicator Flag
Power-Fail Write Protection Allows for ±10% V_CC Power-Supply Tolerance
Lithium Energy Source is Electrically Disconnected to Retain Freshness Until Power is Applied for the First Time
Also Available in Industrial Temperature Range: -40°C to +85°C
