ADD8701

过期

Low Cost, 16 V 12-Channel Buffer plus Integrated High Drive Amplifier

数据手册 (Rev. 0) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • 16V Single Supply Operation
  • Two Channels Swing to Vdd, Two Channels Swing to Gnd
  • Unity Gain Stable with Large Capacitive Loads
  • Wide Bandwidth: 6MHz
  • Fast Slew Rate: 6V/us
  • Amplifier Output Current: 35mA Continuous, 250mA peak
  • Tiny/Thin Lead Frame Chip Scale Package

The ADD8701 is a low cost, 16V 12-channel buffer plus integrated high drive amplifier. Two channels swing to the positive rail, while two channels swing to the negative rail. The buffer channels can drive up to 35mA of peak current and 10mA of continuous output current into capacitive loads. The amplifier channel can drive 35mA of continuous current and up to 250mA of peak current.

The ADD8701 is offered in a 32-lead Lead Frame Chip Scale Package

ADD8701
Low Cost, 16 V 12-Channel Buffer plus Integrated High Drive Amplifier

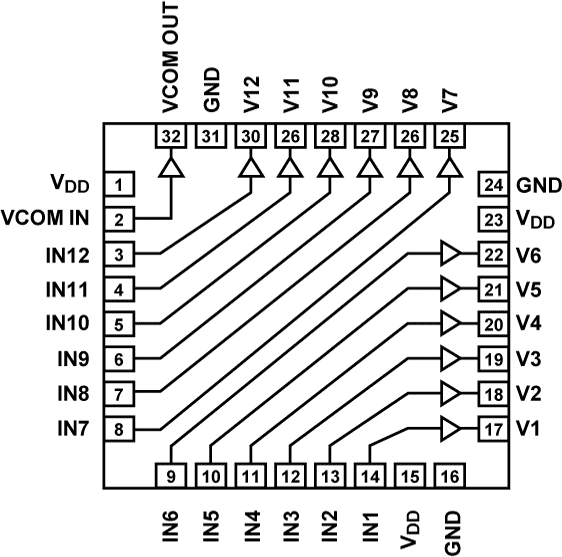

181564577ADD8701-fbl
