Get More Mixed Signal Integration For Less Risk, Cost, and Size

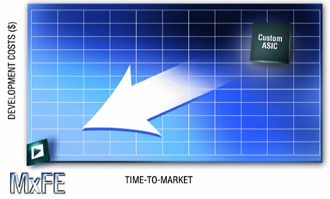

MxFE time to market

Mixed Signal Front End (MxFE®) ICs Provide ASIC- Level Integration Without the Delays, Investment, and Risk.

Mixed signal ASICs require a large investment and extend time to market. Our MxFE family offers a flexible multi-function standard product approach for communication systems. MxFE products are application specific standard products (ASSPs) offering an optimum configuration of multiple ADCs, DACs, gain stages, and analog and digital filters.

Since MxFE converters are standard products, there is no NRE and MxFE devices are available now, so time to market risk is eliminated.

Broadband CODEC MxFE converters have been developed using ADI's extensive analog and mixed signal expertise, they target any broadband home networking and access system including those based on standards including HomePlug, HPNA and Wimax among many others.

Part Number  ADC Bits  ADC Clock Rate (MHz) DAC Bits DAC Clokc Radio (MHz) Primary Application
AD9860 2x10
 64
  2x12 128 Broadband Wireless
AD9862
 2x12
 64
 2 x14 128 Broadband Wireless
AD9861
 2x10
 80
 2x10
 200 Broadband Wireless
AD9863
 2x12
 80
 2x12
 200 Broadband Wireless
AD9865
 10 80
 2x12
 200 Home Networking
AD9866
 12 80 10 200 Home Networking
AD9975
 10 50 10 128 Home Networking
AD9877
 1x12,2x8
 33,16.550
 12
 232
 Cable Modem/Set top box
AD9878
 1x12,1x10,2x7
 33,33,16.5
 12
 232
 Cable Modem/Set top box
AD9879
 1x12,1x10,2x7
 33,33,16.5
 12
 232
 Cable Modem/Set top box

IF Subsystem MxFE ICs are general purpose IF subsystems that digitize narrow band IF input signals.These devices include low-noise amplifiers, mixers, analog-to-digital converters, AGC circuitry, and programmable filters among other features. Serial output I & Q data streams facilitate DSP interfacing for software defined radio applications. These devices offer the highest performance narrowband receiver available, enabling cost reductions for APCO 25, TETRA, VSAT, RFID, GSM / EDGE, Satellite Asset tracking and many other applications.


Part Number  ADC Bits  ADC Clock Rate (MHz) DAC Bits DAC
Clock Rate (MHz)		  Primary Application
AD9874 16/24
 26
  N/A N/A Low Power IF Subsystem
AD9864
 16/24
 26 N/A
 N/A
 Low Cost IF Subsystem
AD6650
 2x12
 26 N/A
 N/A
 Base Station IF Subsystem

If you don't see an MxFE IC here for your application, we may be working on it. Please contact us with your requirements.
