MAXM17906
RECOMMENDED FOR NEW DESIGNS4.5V to 24V, 300mA Himalaya uSLIC Step-Down Power Module
Save Space and Reduce Heat, 300mA Synchronous Buck, Highly Efficient, Power Module in our uSLIC Package
- Part Models
- 2
- 1ku List Price
- Starting From $4.21
Overview
- Easy to Use
- Wide 4.5V to 24V Input
- Adjustable 0.9V to 6.3V Output
- Fixed 3.3V and 5V Output (MAXM17904 and MAXM17905)
- ±1.5% Feedback Accuracy
- Up to 300mA Output-Current
- Internally Compensated
- All Ceramic Capacitors
- High Efficiency
- Selectable PWM- or PFM-Mode of Operation
- Shutdown Current as Low as 2.2μA (typ)
- Flexible Design
- Internal Soft-Start and Prebias Startup
- Open-Drain Power Good Output (Active Low RESET Pin)
- Programmable EN/UVLO Threshold
- Robust Operation
- Hiccup Overcurrent Protection
- Overtemperature Protection
- -40°C to +125°C Ambient Operating Temperature/ -40°C to +150°C Junction Temperature
- Rugged
- Complies with CISPR22(EN55022) Class B Conducted and Radiated Emissions
- Passes Drop, Shock, and Vibration Standards: JESD22-B103, B104, B111

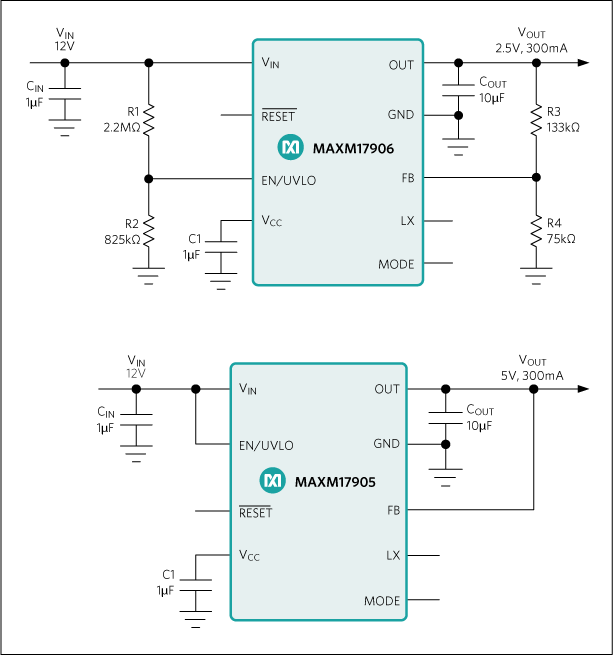

The Himalaya series of voltage regulator ICs and power modules enable cooler, smaller, and simpler power-supply solutions. The MAXM17904/MAXM17905/MAXM17906 are a family of high-efficiency, synchronous step-down DC-DC modules with integrated controller, MOSFETs, compensation components, and inductor that operate over a wide input-voltage range. The modules operate from 4.5V to 24V input and deliver up to 300mA output current. The MAXM17904 and MAXM17905 are fixed 3.3V and 5V output modules respectively. The MAXM17906 is an adjustable output (0.9V to 6.3V) module. The modules significantly reduce design complexity, manufacturing risks, and offer a true plug and play power/supply solution, reducing time-to-market.
The MAXM17904/MAXM17905/MAXM17906 modules employ peak-current-mode control architecture. To reduce input inrush current, the modules offer a fixed 3.75ms soft-start time.
The MAXM17904/MAXM17905/MAXM17906 modules are available in a low profile, compact 10-pin, 2.6mm x 3mm x 1.5mm, µSLIC™ package.
Applications
- Industrial Sensors and Encoders
- 4-20mA Current-Loop Powered Sensors
- HVAC and Building Control
- LDO Replacement
- Battery-Powered Equipment
- General Purpose Point-of-Load
- USB Type-C Powered Loads
Documentation
Data Sheet 1
Video 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| MAXM17906AMB+ | 10-Lead eMGA (2.6mm x 3mm x 1.5mm) | ||
| MAXM17906AMB+T | 10-Lead eMGA (2.6mm x 3mm x 1.5mm) |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Sep 22, 2020 - 2092 ASSEMBLY |
||
| MAXM17906AMB+ | PRODUCTION | |
| MAXM17906AMB+T | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareTools & Simulations
ADI Power Studio™ Designer
ADI Power Studio™ Designer is the next-generation tool for IC-level, power supply design, guiding engineers to faster, validated solutions.
Learn MoreEvaluation Kits
Evaluation Kit for the MAXM17905 5V Output-Voltage Application
Resources
Evaluation Kit for the MAXM17904 3.3V Output-Voltage Application
Resources
Evaluation Kit for the MAXM17906 1.8V Output-Voltage Application
