Overview
設計リソース
設計/統合ファイル
- Schematic
- PCB Layout
- Bill of Materials
- Test Results
- SIMPLIS Schematic File
説明

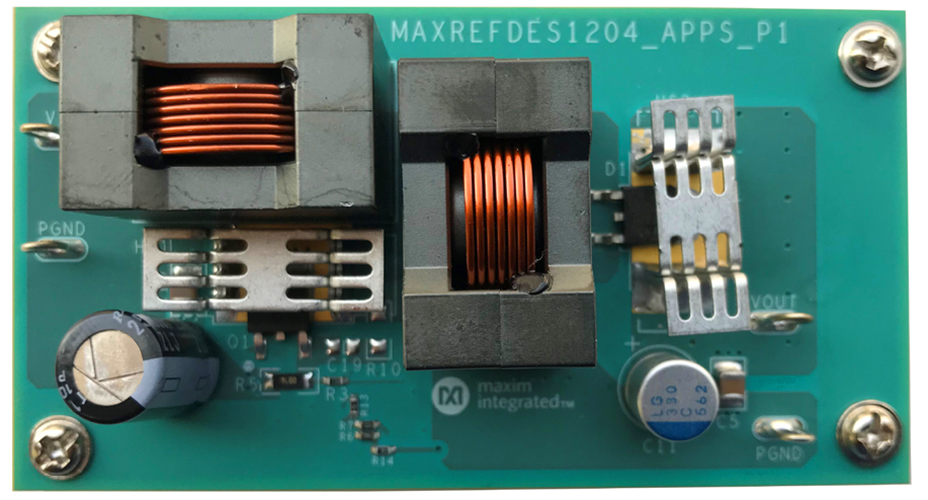

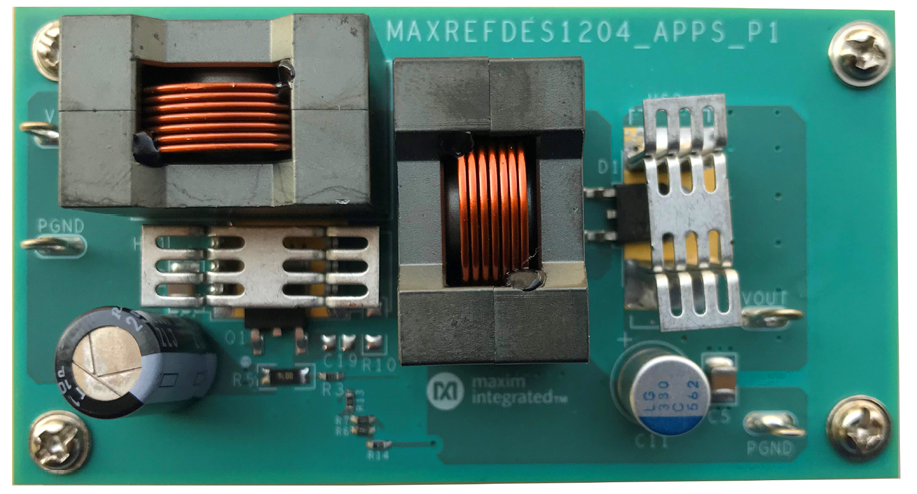

The MAXREFDES1204 is a single-output SEPIC converter reference design developed using the MAX16990 controller. This reference design is rated to operate over a wide input voltage range from 6V to 18V. The design can deliver an output power of 24W at 12V. It is targeted for automotive applications.
機能と利点
- Very High Efficiency > 90% for Load > 25%
- Very Low Line and Load Regulation < 0.02%
- Output Voltage Ripple < 0.7% at Nominal VIN
- Overshoot < 2.6% for 50% Step Load
- Continuous Conduction Mode (CCM) Operation
- Internal Soft-Start
重要なお知らせと免責事項
アナログ・デバイセズの設計情報およびリソースに関する「リファレンス・デザイン免責事項」をご確認ください。
使用されている製品
Documentation & Resources
-
MAXREFDES1204 Design Files2021/11/17ZIP2 M
-
MAXREFDES1204: Single-Output SEPIC Converter Using MAX169902021/11/17PDF777 K
Support & Training
Search our knowledge base for answers to your technical questions. Our dedicated team of Applications Engineers are also available to answer your technical questions.
