Altera Embedded Systems Development Kit, Cyclone III Edition
Altera Embedded Systems Development Kit, Cyclone III Edition
トップへ
概要
機能と利点
- Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
- Our reference designs are supported by an intuitive design tool set and IP
- Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
参考資料
-

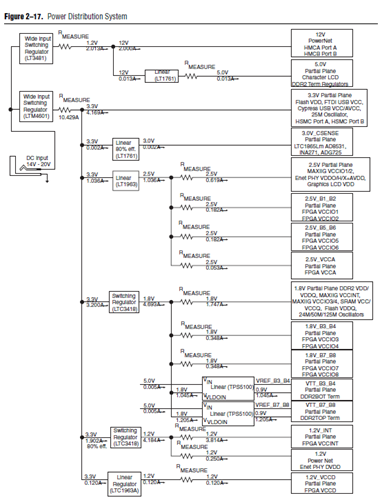

DK-DEV-3C120N / DK-EMB-3C120N / DK-DSP-3C120N Dev Kit Schematic2014/08/04PDF1M
回路説明

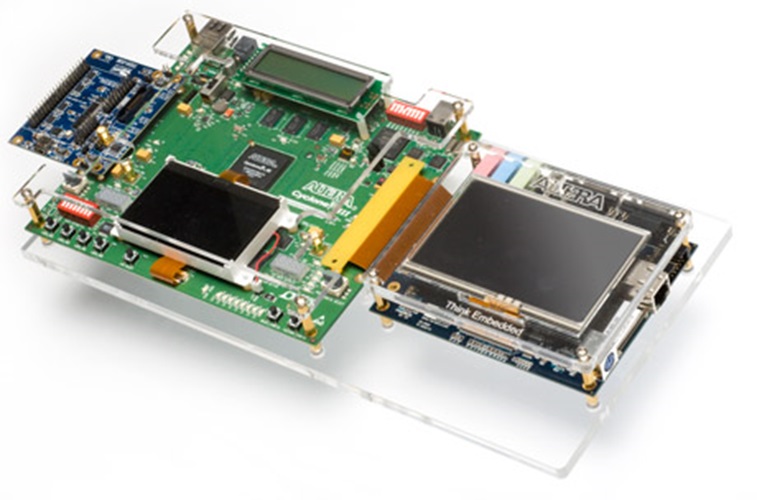

The Altera Embedded System Development Kit, Cyclone III Edition is a complete development platform for prototyping embedded systems on Altera’s low-cost, low-power FPGAs. As part of this development kit, you’ll find everything you need; hardware, example processor systems, software applications, FPGA and software development tools and documentation to accelerate embedded system development.
