製品概要

製品概要

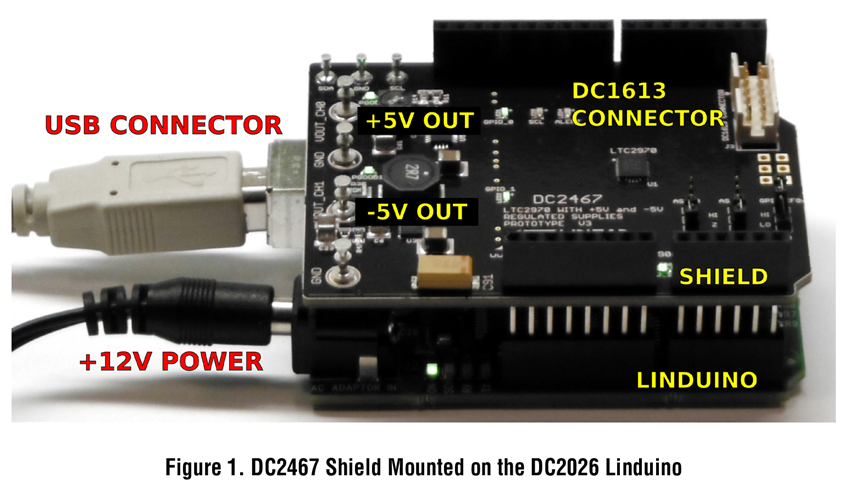

The DC2467 Linduino® shield is a demonstration system for the LTC2970 dual power supply monitor and margining controller. The LTC2970 provides a rich set of features for monitoring and controlling two power rails, including monitoring supply voltage and current, detecting faults in voltage and current, margining the supply voltage high or low, measuring temperature, and turning the supplies on and off through GPIO pins. It is fully accessible through the built-in I2C bus, which allows it to communicate with an external microcontroller or other I2C bus master.

対象となる製品

ソフトウェア

設計ツール

LTpowerPlay®
LTpowerPlay® は、旧リニアテクノロジーのデジタル・パワー・マネージメント(PSM)製品をサポートする強力なWindowsベースの開発環境です。

ハードウェア (2)

コントローラ・ボード
