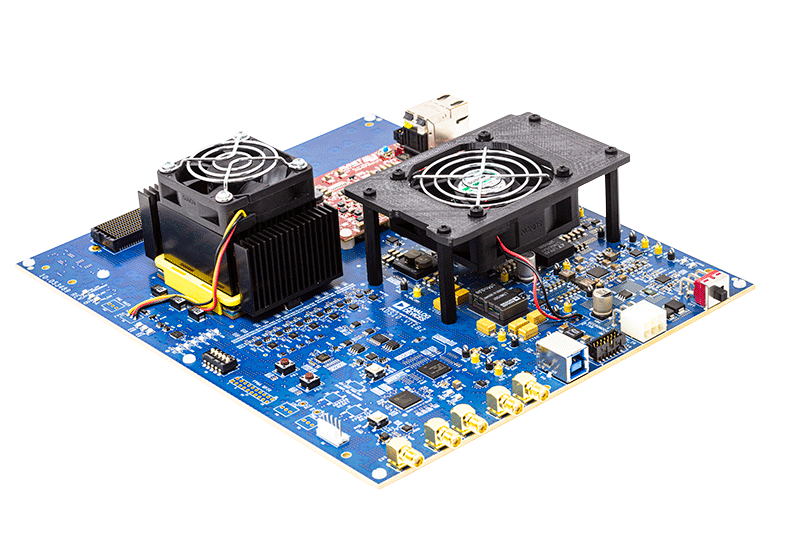

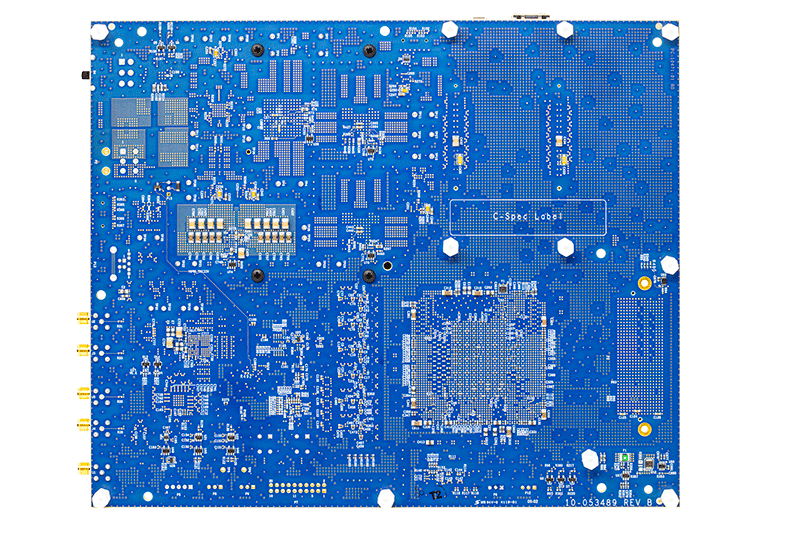

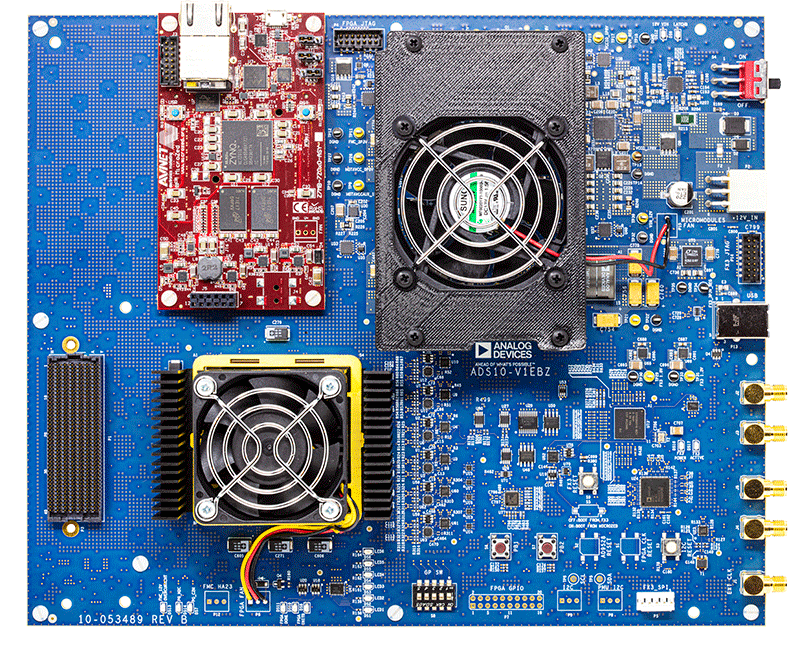

ADS10-V1EBZ
ADS10-V1EBZ Evaluation Board
トップへ
製品概要
機能と利点
Xilinx Virtex Ultrascale+ XCVU35P-3FSHV2892E FPGA.
- One (1) FMC+ connector.
- Twenty (24) 32.75Gbps transceivers supported by one (1) FMC+ connector.
- On-board HBM DRAM in FPGA.
- Simple USB 3.0 port interface.
製品概要
When connected to a specified Analog Devices high speed converter evaluation board, the ADS10-V1EBZ works as a data capture/transmit board. Designed to support the highest speed JESD204B/C data converters, the FPGA on the ADS10-V1EBZ acts as the data receiver for high speed ADC's, and as the transmitter for high speed DAC's.関連資料
-
ADS10-V1EBZ User Guide2023/11/08WIKI
-
5G送受信基地局におけるトランスミッタのラインアップ、設計、評価の簡略化2024/04/23
