- 6.95V Shunt Reference
- Guaranteed 0.5ppm/°C Temperature Coefﬁ cient
- Guaranteed 1Ω Maximum Dynamic Impedance
- Guaranteed 20µVRMS Maximum Noise
- Guaranteed Initial Tolerance of 2%
- Wide Operating Current Range

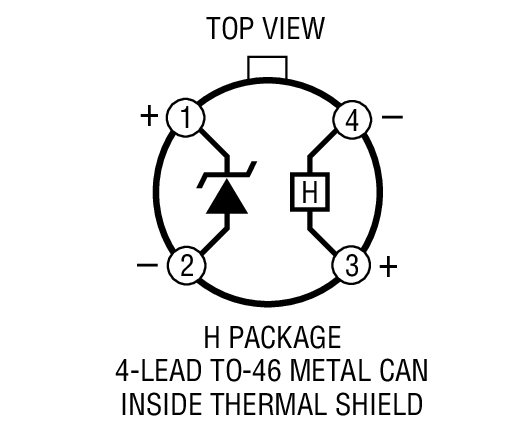

- Available in 4-Lead TO-46 Metal Can
The LM199/LM399 precision shunt reference features excellent temperature stability over a wide range of voltage, temperature and operating current conditions. A stabilizing heater is incorporated with the active Zener on a monolithic substrate which nearly eliminates changes in voltage with temperature. The subsurface Zener operates over a current range of 0.5mA to 10mA, and offers minimal noise and excellent long-term stability.

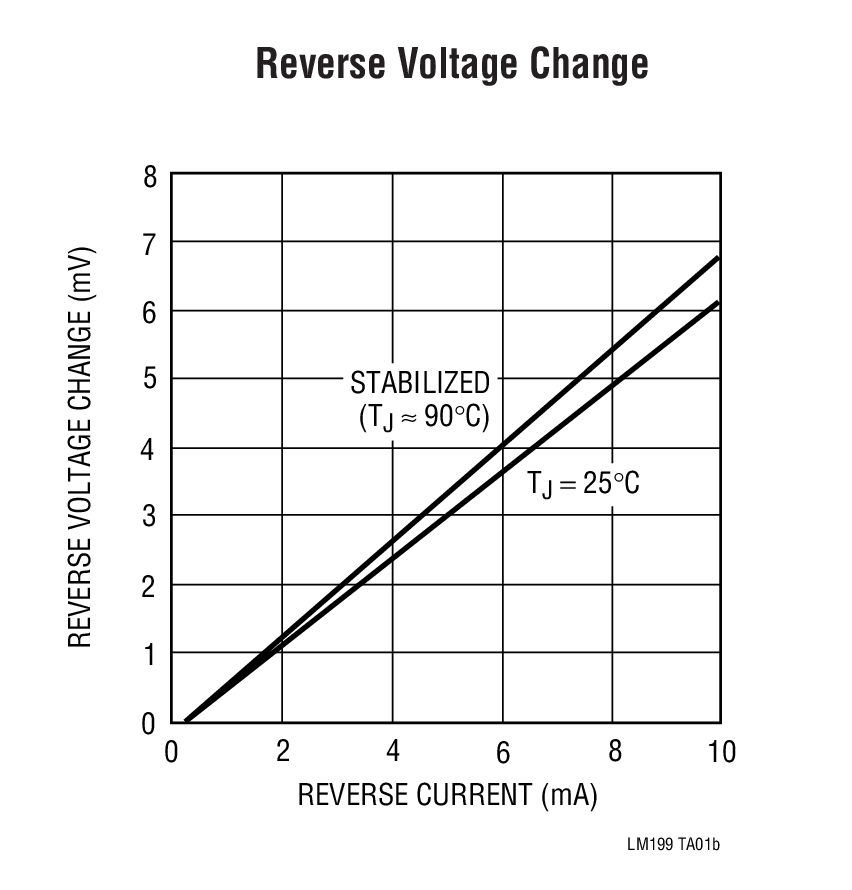

Ideal applications for the LM199/LM399 include digital voltmeters, precision calibration equipment, current sources and a variety of other precision low cost references. A 10V buffered reference application is shown below.
- Precision voltage reference for multimeters
- Calibration equipment voltage standards
- Laboratory measurement equipment
- Industrial monitor/control instruments
- High accuracy data converters
