製造中止HMC158 / HMC158C8
Passive frequency doubler chip and surface mount technology (SMT), 1.3 GHz to 4.0 GHz input
- 製品モデル
- 3
- 1Ku当たりの価格
- 価格は未定
Viewing:
製品の詳細
- Conversion loss: 15 dB
- FO, 3FO, 4FO isolation: 40 dB
- Input drive level: 10 dBm to 20 dBm
- Die size (HMC158): 1.0 mm × 1.15 mm × 0.1 mm

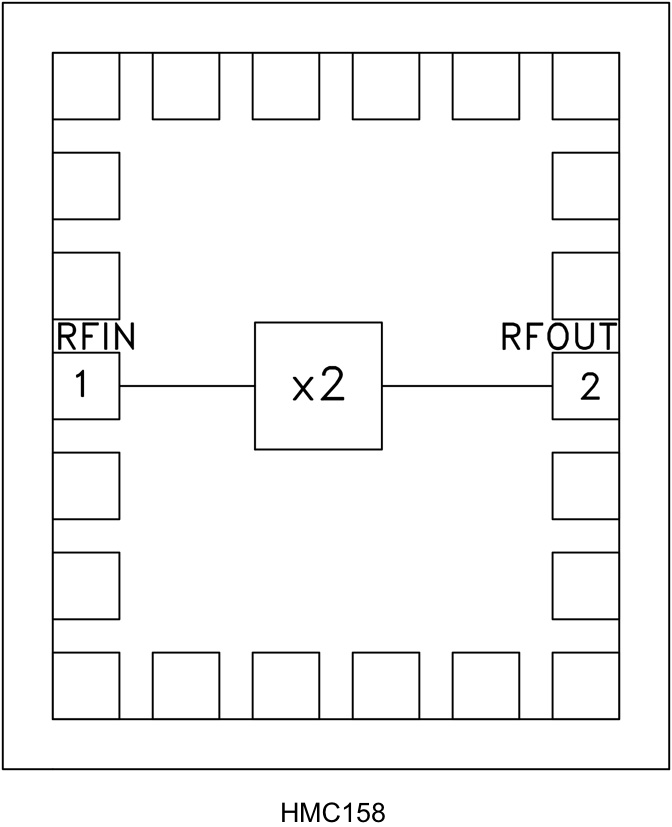

The HMC158 devices are miniature frequency doublers that are available in a monolithic microwave integrated circuit (MMIC) die (HMC158) and a nonhermetic, ceramic surface mount package (HMC158C8). Suppression of undesired fundamental and higher order harmonics is 40 dB typical with respect to input signal level. The doublers use the same diode/balun technology used in Hittite MMIC mixers, feature small size, and require no dc bias.
Applications
- Wireless local loop
- Local multipoint distribution systems (LMDS)
- Very small aperture terminal (VSAT)
- Point-to-point radios
- Unlicensed National Information Infrastructure (U-NII) and high performance radio LAN (HiperLAN)
- Test equipment
推奨代替製品
GaAs pHEMT MMIC アクティブ周波数 2 逓倍器、3.8 GHz ~ 5.6 GHz 出力
ドキュメント
データシート 1
製造中止品のデータシート 1
品質関連資料 1
テープ&リール仕様 1
製品モデル | ピン/パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
---|---|---|---|
HMC158 | CHIPS OR DIE | ||
HMC158C8 | 8-Lead SMT (4.32mm x 5.59mm) | ||
HMC158C8TR | 8-Lead SMT (4.32mm x 5.59mm) |
製品モデル | 製品ライフサイクル | PCN |
---|---|---|
該当なし | ||
12 14, 2015 - 15_0026 Discontinuance of Select Hittite Microwave Products (HMC) from Analog Devices |
||
HMC158 | 最終販売 | |
HMC158C8 | 製造中止 | |
HMC158C8TR | 製造中止 |
これは最新改訂バージョンのデータシートです。
ハードウェア・エコシステム
製品モデル | 製品ライフサイクル | 詳細 |
---|---|---|
HMC1096 | 新規設計に推奨 | GaAs pHEMT MMIC アクティブ周波数 2 逓倍器、3.8 GHz ~ 5.6 GHz 出力 |
