HMC144
製造中止HMC144 / HMC144LC4 / HMC144LH5
HMC144: GaAs monolithic microwave integrated circuit (MMIC) double-balanced mixer chip, 5 GHz to 20 GHz

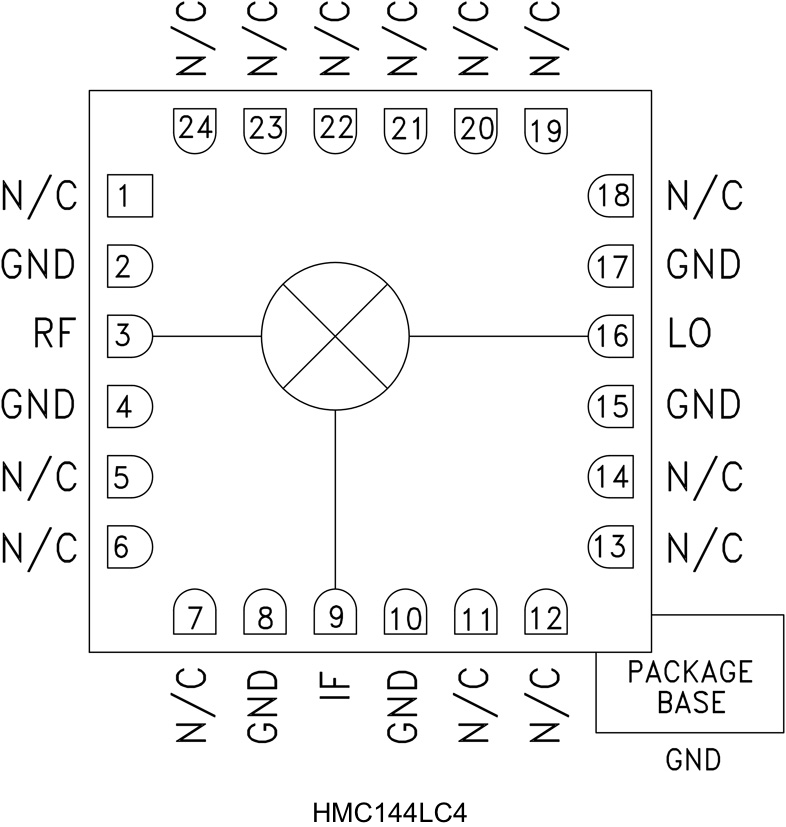

HMC144LC4: GaAs MMIC double-balanced mixer surface mount technology (SMT), 6 GHz to 20 GHz

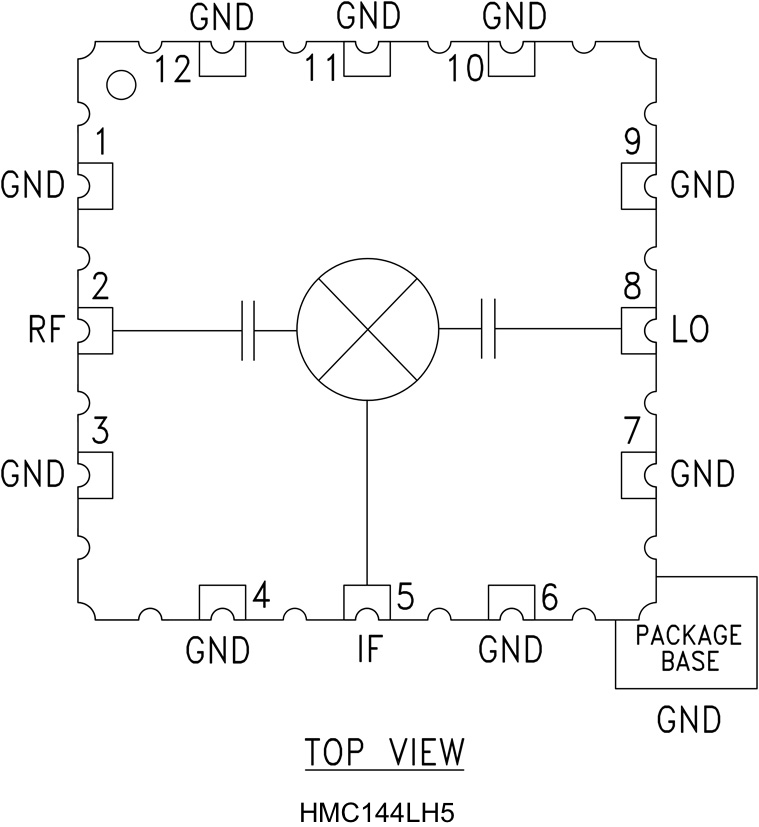

HMC144LH5: GaAs MMIC double-balanced mixer hermetic SMT, 6 GHz to 20 GHz
- 製品モデル
- 6
- 1Ku当たりの価格
- 価格は未定
製品情報
- Input IP3
HMC144: 25 dBm
HMC144LC4: 23 dBm
HMC144LH5: 24 dBm - Local oscillator (LO) to radio frequency (RF) isolation
HMC144: 30 dB
HMC144LC4: 35 dB
HMC144LH5: 35 dB
Intermediate frequency (IF) bandwidth: dc to 3 GHz
- Small size (HMC144): 2.10 mm × 1.45 mm × 0.1 mm
- RoHS compliant 4 mm × 4 mm SMT package (HMC144LC4)
- Hermetic SMT package (HMC144LH5): 25 mm2
- Screening to MIL-PRF-38535 (class B or S) available (HMC144LH5)
The HMC144 devices are double-balanced MMIC mixers available in a chip (HMC144), a leadless Pb-free SMT package (HMC144LC4), and a hermetic SMT leadless package (HMC144LH5), all of which can be used as an upconverter or downconverter from 6 GHz to 20 Ghz. The HMC144 utilizes a standard 1 μm GaAs metal semiconductor field effect transistor (MESFET) process and is identical to the HMC143, except that the layout is a mirror image designed to ease integration into image reject mixer modules. Broadband operation and excellent isolations are provided by on-chip baluns, which require no external components and no dc bias. The HMC144 devices are more reliable alternatives to hybrid diode mixers, assuring consistent conversion loss and isolation performance over multiple and high volume production lots. The design of the HMC144 is similar to the HMC141 and HMC142 mixers, but with an IF combiner in a double-balanced design, providing improved RF/IF isolation. The HMC144LC4 and HMC144LH5 eliminate the need for wire bonding, allowing use of surface mount manufacturing techniques.
Applications
- Microwave point-to-point radios
- Very small aperture terminal (VSAT)
- Test equipment and sensors
- Military end use
- Telecom infrastructure
- Test instrumentation
- Military radio, radar, and electronic countermeasure (ECM)
- Space systems
ドキュメント
データシート 2
アプリケーション・ノート 1
製造中止品のデータシート 1
品質関連資料 2
テープ＆リール仕様 1
| 製品モデル | ピン／パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
|---|---|---|---|
| HMC144 | CHIPS OR DIE | ||
| HMC144LC4 | 24-Lead LCC (4mm x 4mm w/ EP) | ||
| HMC144LC4TR | 24-Lead LCC (4mm x 4mm w/ EP) | ||
| HMC144LC4TR-R5 | 24-Lead LCC (4mm x 4mm w/ EP) | ||
| HMC144LH5 | LGA_CAV NO LEAD CAVITY | ||
| HMC144LH5TR | LGA_CAV NO LEAD CAVITY |
| 製品モデル | 製品ライフサイクル | PCN |
|---|---|---|
|
1 11, 2017 - 16_0010 Discontinuance of Select RF and Microwave Products |
||
| HMC144 | 製造中止 | |
| HMC144LC4 | 製造中止 | |
| HMC144LC4TR | 製造中止 | |
| HMC144LC4TR-R5 | 製造中止 | |
| HMC144LH5 | 製造中止 | |
| HMC144LH5TR | 製造中止 | |
