DS3508
I²C, 8-Channel Gamma Buffer with EEPROM
Low-Power, Low-Cost LCD Gamma Generator with EEPROM
製品の詳細
- 8-Bit Gamma DACs, 8 Channels
- 1 Byte EEPROM and 1 Byte SRAM per Channel
- Ultra-Low Power (2mA IDD, typ)
- 400kbps I²C Interface
- 9.0V to 15.5V Analog Supply
- 2.7V to 5.5V Digital Supply
- 20-Pin TSSOP Package
- Address Pin Allows Two DS3508s to Reside on the Same I²C Bus

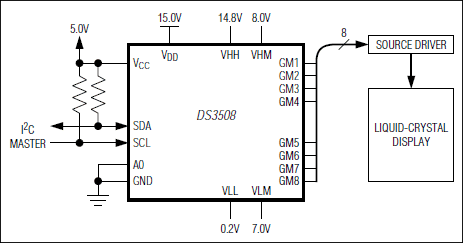

The DS3508 is a programmable 8-channel gamma voltage generator with one byte of on-chip EEPROM and one byte of SRAM memory per channel. Each channel is composed of an independent 8-bit DAC with an associated EEPROM/SRAM pair. At power-up, nonvolatile (NV) EEPROM gamma data is loaded into its corresponding SRAM register that drives the associated 8-bit DAC. An on-chip control register allows selectable control of writing to SRAM/EEPROM or SRAM only.
The DS3508 is designed for low-power operation and draws less than 2mA (typ) from the VDD supply. Programming occurs through an I²C-compatible serial interface with support for speeds up to 400kHz.
Applications
- Industrial Controls
- TFT-LCD Gamma Buffer
