ADSP-2186M
新規設計には非推奨16-Bit, 75 MIPS, 2.5V, 2 Serial Ports, Host Port, 40 KB RAM
- 製品モデル
- 4
- 1Ku当たりの価格
- 価格は未定
Viewing:
製品の詳細
- 13 ns instruction cycle time (75 MIPS)
- 2.5 volt supply with 3.3 volt I/O
- 8K words of on-chip program RAM
- 8K words of on-chip data memory RAM
- .4 mA/MIPS
- 16-bit internal DMA port for high speed access to on-chip memory
- 100-lead LQFP and 10mm x 10mm mini-BGA
- 8-bit DMA port to byte memory for transparent program and data memory transfers
- Byte memory interface for storage of data tables and program overlays
- Programmable memory strobe and separate I/O memory space permits "glueless" system
- ADSP-2100 Family code and function compatible

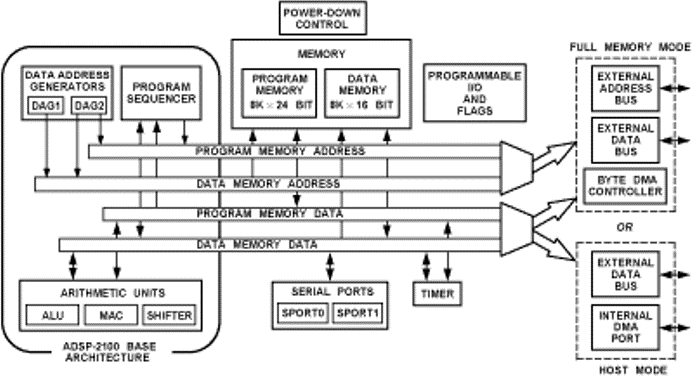

The ADSP-2186M combines the ADSP-2100 family base architecture (three computational units, data address generators and a program sequencer) with two serial ports, a 16-bit internal DMA port, a byte DMA port, a programmable timer, Flag I/O, and extensive interrupt capabilities.
BENEFITS
ドキュメント
データシート 1
ユーザ・ガイド 1
アプリケーション・ノート 63
プロセッサ・マニュアル 5
ソフトウェア・マニュアル 9
集積回路異常 1
レガシー・エミュレータ・マニュアル 3
製品モデル | ピン/パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
---|---|---|---|
ADSP-2186MBSTZ-266 | 100-Lead LQFP (14mm x 14mm) | ||
ADSP-2186MBSTZ266R | LQFP 1.4 MM | ||
ADSP-2186MKSTZ-300 | 100-Lead LQFP (14mm x 14mm) | ||
ADSP-2186MKSTZ300R | 100-Lead LQFP (14mm x 14mm) |
製品モデル | 製品ライフサイクル | PCN |
---|---|---|
10 18, 2016 - 16_0034 Assembly Relocation of Select LQFP,LQFP_EP,MQFP,TQFP,TQFP_EP Products to Stats ChipPAC China Jiangyin |
||
ADSP-2186MBSTZ-266 | 製造中 | |
ADSP-2186MKSTZ-300 | 製造中 | |
ADSP-2186MKSTZ300R | 製造中 | |
6 18, 2010 - 07_0093 Conversion to Laser Mark for all ADSPXXXX, ADSSTXXXX, and PC Audio Codecs Ink on Plastic Encapsulated Parts |
||
ADSP-2186MBSTZ-266 | 製造中 | |
ADSP-2186MKSTZ-300 | 製造中 | |
1 5, 2009 - 07_0077 Certification of STATSChipPAC Shanghai, China and AMKOR Philippines as additional sources for Assembly & Test of QFP Packages |
||
ADSP-2186MBSTZ-266 | 製造中 | |
ADSP-2186MKSTZ-300 | 製造中 |
