HMC933
製造中止470° Analog Phase Shifter SMT, 18 - 24 GHz
製品の詳細
- Wide Bandwidth: 18 - 24 GHz
- 470° Phase Shift
- Low Insertion Loss: 4.5 dB
- Low Phase Error: ±10 deg Typ.
- Single Positive Voltage Control
- 24 Lead 4x4mm QFN Package: 16mm²

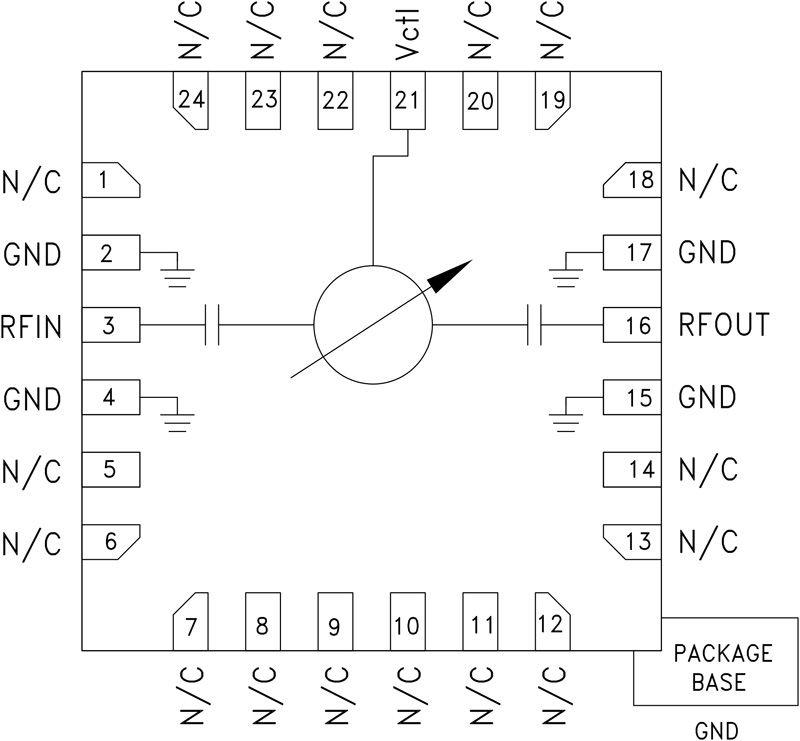

The HMC933LP4E is an Analog Phase Shifter which is controlled via an analog control voltage from 0 to +13V. The HMC933LP4E provides a continuously variable phase shift of 0 to 470 degrees from 18 to 24 GHz, with extremely consistent low insertion loss versus phase shift and frequency. The high accuracy HMC933LP4E is monotonic with respect to control voltage and features a typical low phase error of ±10 degrees over an octave bandwidth. The HMC933LP4E is housed in an RoHS compliant 4x4 mm QFN leadless package.
Applications
- EW Receivers
- Military Radar
- Test Equipment
- Satellite Communications
- Beam Forming Modules
ドキュメント
製造中止品のデータシート 1
これは最新改訂バージョンのデータシートです。
ソフトウェア・リソース
必要なソフトウェア／ドライバが見つかりませんか？
ドライバ／ソフトウェアをリクエスト評価用キット
HMC933LP4E Evaluation Board
