High Speed ADC FMC Development Board with JESD204B

Jul 8 2013

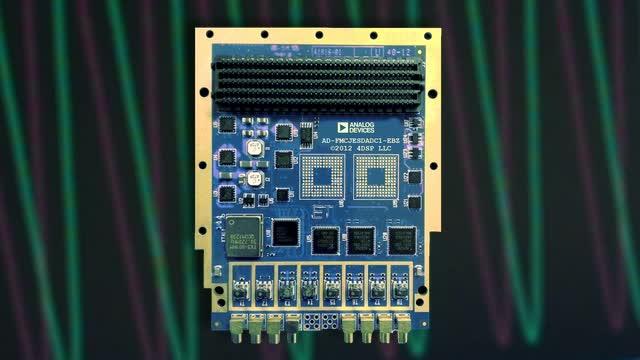

This high-speed data acquisition board contains two AD9250 14-bit, 250 MSPS dual ADCs which support high-speed serial JESD204B coded outputs for improved FPGA connectivity. In this example, it is connected to a Xilinx KC706 development board.

Learn more about the JESD204 serial interface standard
