Evaluation Board for TMCM-0960-MOTIONPY
Top
Overview
Features and Benefits
- Board supply voltage: +6V to +50V
- Screw terminals and standard connectors
- CAN, RS485, UART Interfaces
- Connectors and headers for GPIOs
Product Details

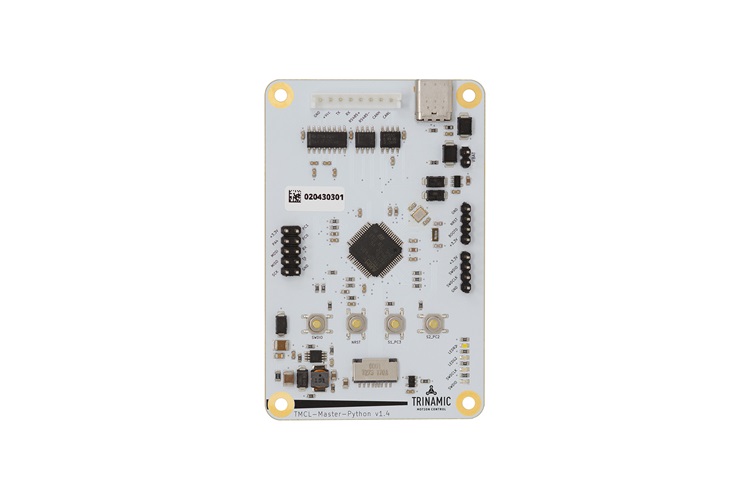

The TMCM-0960-MotionPy board is an open-source single board computer running MicroPython. It comes with several communication interface options like CAN, RS485, UART, and separate GPIO headers. With a wide supply voltage range of +6...+50V and industrial Fieldbus interfaces it is the engineers’ swiss army knife for small automation applications.
Plugging directly into the application for logging data on an SD card or updating subsystems without the need for additional tools, the module offers a total of 13 functions in Python programming language for ease of use.
Documentation & Resources
-
Tmcm 0960 Motionpy V21 Hardware Manual Hw2.10 (Rev. 3.00)7/19/2021PDF531K
-
Tmcm 0960 Motionpy Hardware Manual Hw1.60 (Rev. 1.00)7/19/2021PDF2M
-
3d Model Tmcm 0960 Motionpy - Design Files (Rev. 21)7/19/2021ZIP7M
-
Ecad Tmcm 0960 Motionpy - Design Files (Rev. 21)7/19/2021ZIP10M
-
3d Model Tmcm 0960 Motionpy - Design Files (Rev. 16)11/6/2020ZIP2M
-
Ecad Tmcm 0960 Motionpy - Design Files (Rev. 16)11/4/2020ZIP8M
