Overview

Features and Benefits

  • SMA Connector for Attaching an External Bluetooth Antenna
  • 128 x 128 (1.45in) Color TFT Display with SPI Interface
  • Two Selectable On-Board, High-Precision Voltage References
  • USB 2.0 Micro B to Serial UARTs
  • UART1 and LPUART0 Interface is Selectable Through On-Board Jumpers
  • All GPIOs Signals Accessed Through 0.1in Headers
  • Access to Four Analog Inputs Through SMA Connectors Configured as Differential
  • Access to Eight Analog Inputs Through 0.1in Headers Configured as Single-End
  • Optional Discrete Filter for the Twelve Analog Inputs
  • DAC Accessed Through SMA Connector or Test Point
  • 10-Pin SWD Connector
  • 10-Pin RV JTAG Connector
  • Board Power Provided by USB Port
  • On-Board 3.3V LDO Regulator to Power MAX32680 Internal SIMO
  • Test Loops Provided to Supply Optional VCORE Power Externally
  • Individual Power Measurement on All IC Rails Through Jumpers
  • Two General Purpose LEDs and Two General Purpose Pushbutton Switches

Product Details

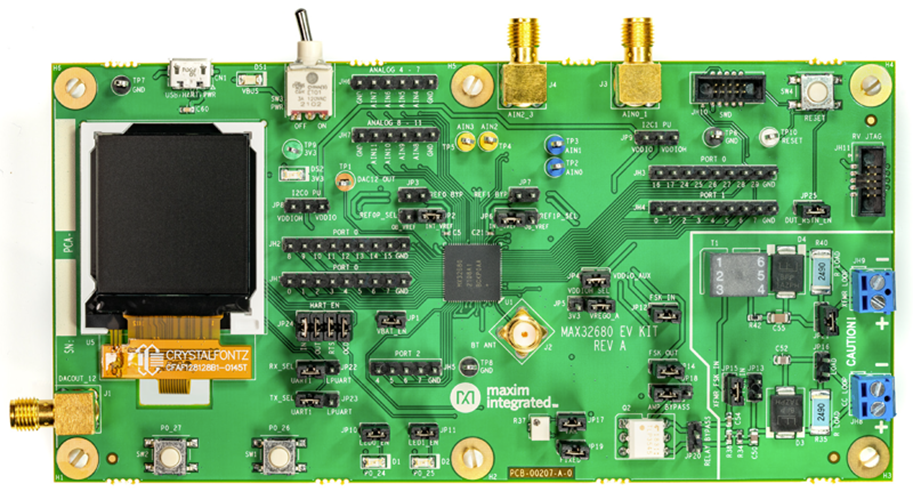

The MAX32680 evaluation kit (EV kit) provides a platform for evaluation capabilities of the MAX32680 microcontroller, which is an advanced system-on-chip (SoC) designed for industrial and medical sensors. Power regulation and management is provided by a single-inductor multiple-output (SIMO) buck regulator system and contains the latest generation Bluetooth® 5.2 Low Energy (LE) radio.

Applications

  • 4-20mA industrial Sensors & Transmitters
  • Industrial Pressure,Temperature. Level and Flow Sensors/ Transmitters
  • Medical Pressure & Temperature sensors

Software

Evaluation Software

MAX32xxx-MAX78xxx MSDK Software
