DC1221A
LT3502EDC Demo Board | 1.1MHz, 500mA Step-Down Regulator in DFN
Top
Overview
Product Details

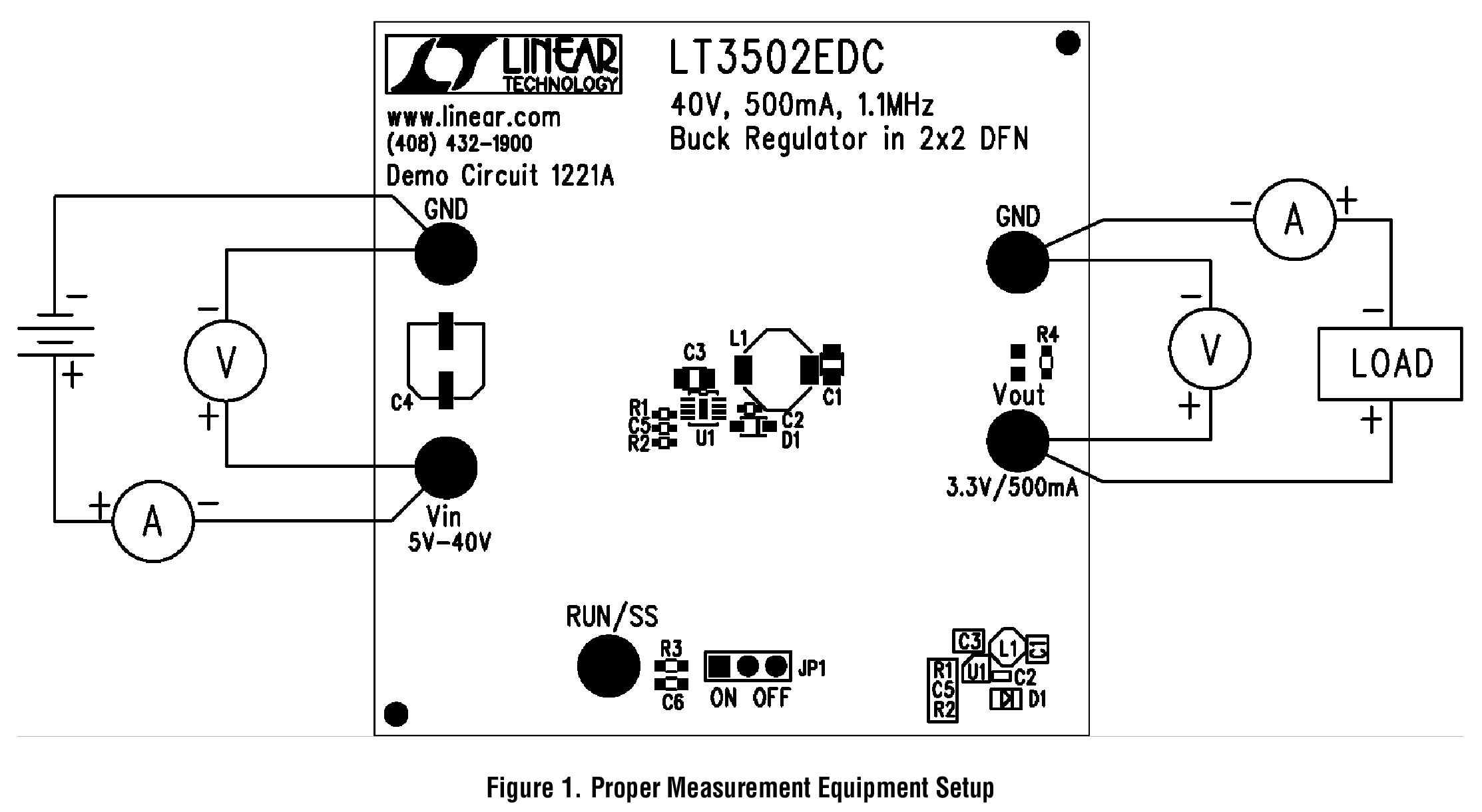

Demonstration circuit 1221 is a monolithic step-down DC/DC switching regualtor featuring the LT3502. The demo circuit is designed for 3.3V output from a 5V to 40V input. The wide input range of the LT3502 allows a variety of input sources including automotive batteries and 24V industrial supplies.
Markets and Technologies
Applicable Parts
Documentation & Resources
-

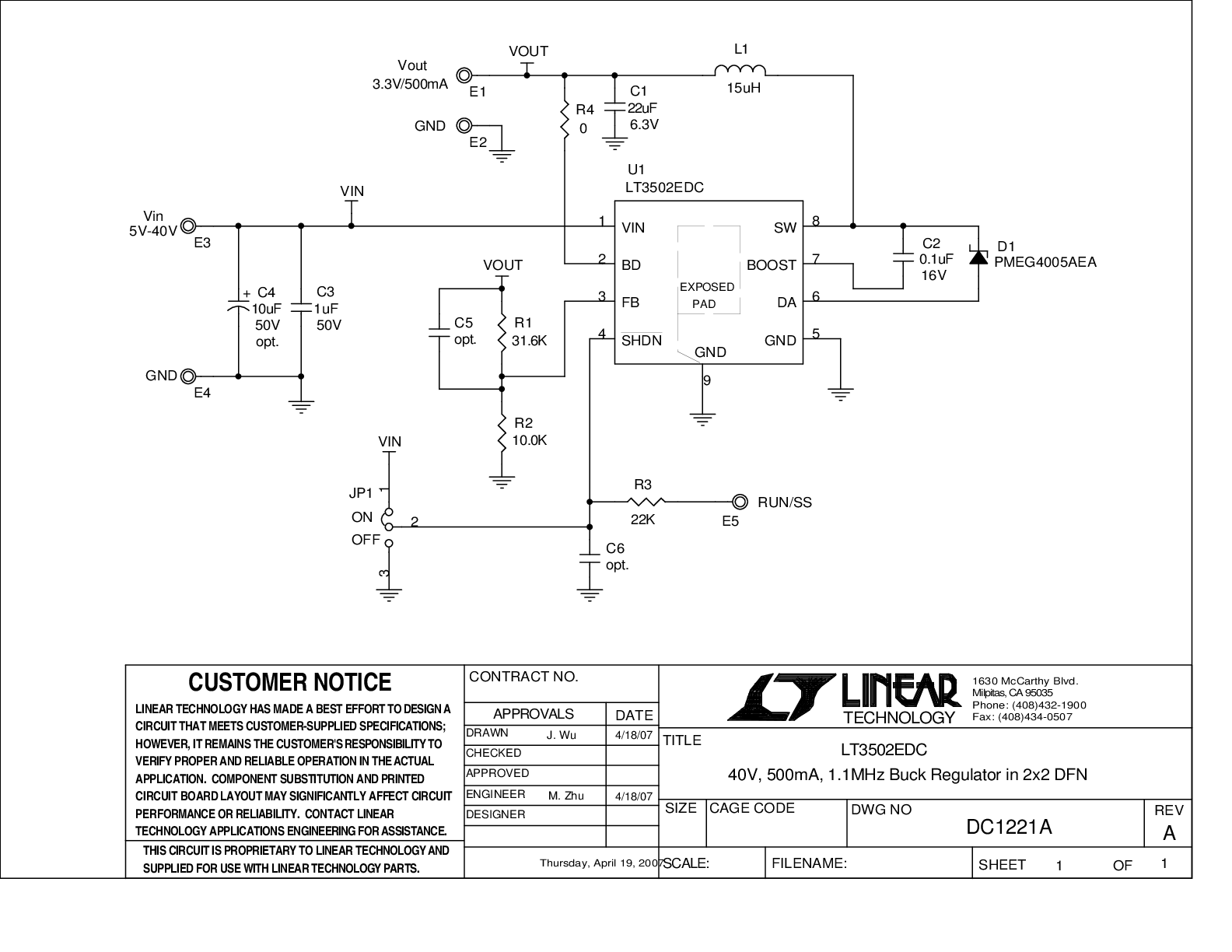

DC1221A - Schematic9/24/2009PDF21K
-
DC1221A - Demo Manual11/24/2010PDF128K
-
DC1221A - Design File9/24/2009ZIP405K
