Overview
Features and Benefits
- USB powered learning tool
- Measuring and sourcing current (- 200 to +200mA) and voltage (0 to 5V) simultaneously on same pin
- Oscilloscope (100 kSPS), function generator (100 kSPS)
- PixelPulse 2 (open source) supports Windows, Linux, OS X
- 16-bit (0.05%) basic measure accuracy with 4 digit resolution
- Source and sink (2-quadrant) operation
- C, C++ and Python bindings
- MATLAB Data Acquisition Toolbox Support
- Open source hardware
- ADALP2000 Analog Parts Kit offers wide selection of analog components and allows solderless breadboarding
Product Details

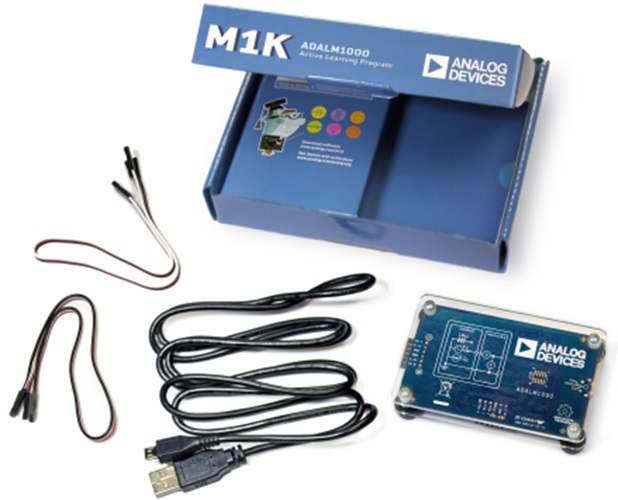

The ADALM1000 Active Learning Module is an easy to use tool designed to introduce the fundamentals of electrical engineering in a self-led or instructor- led setting. The ADALM1000 Module allows students to better understand the real analog world around them, and is applicable for all students, at all levels, from all backgrounds. Early hands-on learning with the ADALM1000 will help students develop a solid science, technology, or engineering foundation.
The ADALM1000 module is a tool that illustrates the relationships between current, voltage, impedance (resistance, inductance, and capacitance) to the user. The ADALM1000 provides a personal portable lab that, when used with a laptop or tablet, augments learning that takes place in the classroom. Pixelpulse 2 provides an innovative graphical user interface (GUI) that minimizes the learning curve and enables students to learn faster, work smarter, and explore more.
The ADALM1000 is a learning tool for everyone.
Benefits
- Affordable instrument combines capabilities from analyzers, generators, curve tracers, and current/voltage systems.
- Provides analysis capability for real circuits and concepts used in engineering environments.
- Freely available online labs and curricula for educators and students to master difficult engineering concepts.
- Structured hands-on activities stimulate and accelerate learning and builds interest in fundamental engineering concepts.
- Helps to develop critical thinking skills needed for career development.
Markets and Technologies
Documentation & Resources
-
ADALM1000 Design & Integration Files1/9/2023ZIP2 M
-
ADALM1000 Active Learning Module Documentation2/15/2015WIKI
-
Active Learning Program: Tools for Students, Makers, and Enthusiasts3/26/2019PDF476K
-
ADALM1000 Active Learning Module Product Highlight2/15/2015PDF924 K
-

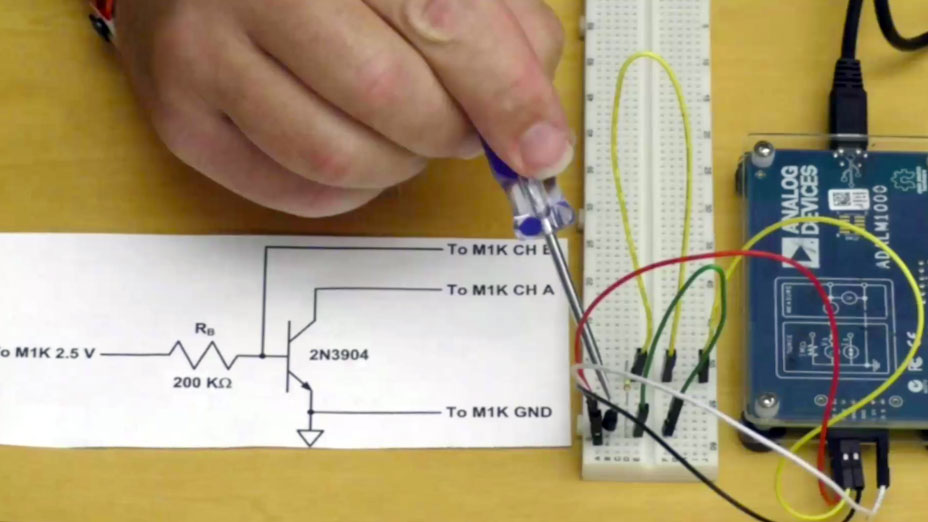

Intro to Transistors Lab with the ADALM1000 and ADALP20002/29/2024
-

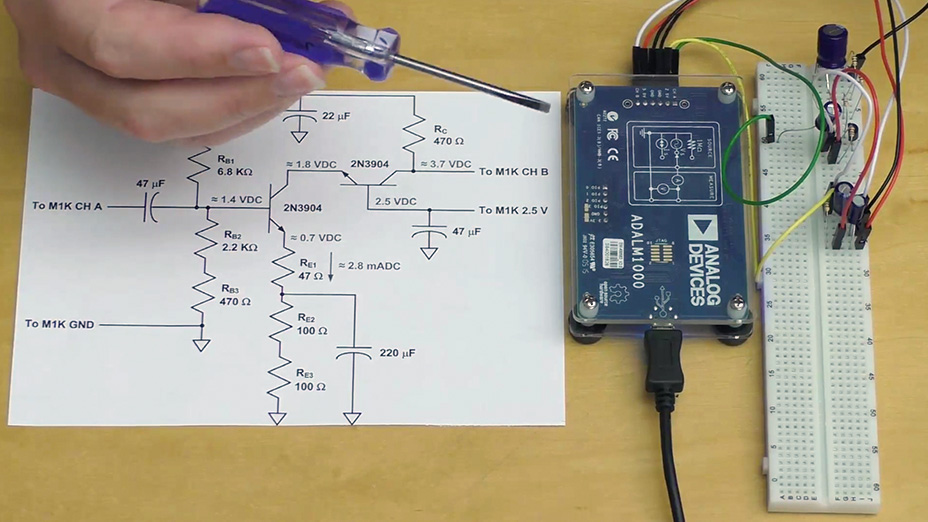

Common-Base & Cascode Amplifier Lab with ADALM1000 and ADALP200010/15/2018
-

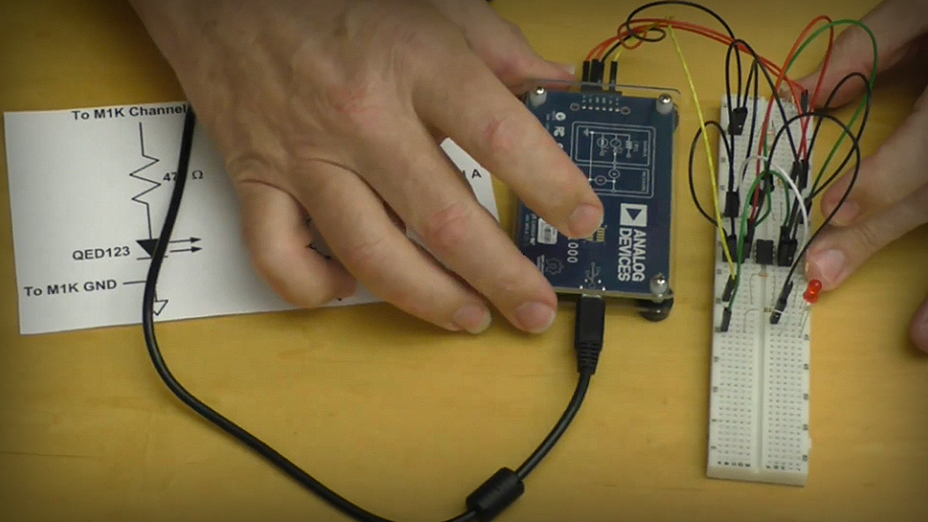

Intro to Diodes and LEDs Lab with the ADALM1000 and ADALP200010/15/2018
-
Class A Emitter-Follower Amp Lab with ADALM1000 and ADALP200010/15/2018
-
A Simple Light Detector that can be Built with the ADALM1000 Source Measurement Unit and the ADALP2000 Analog Parts10/15/2018
-
A Simple Proximity Sensor Built with the ADALM1000 and ADALP200010/15/2018
-

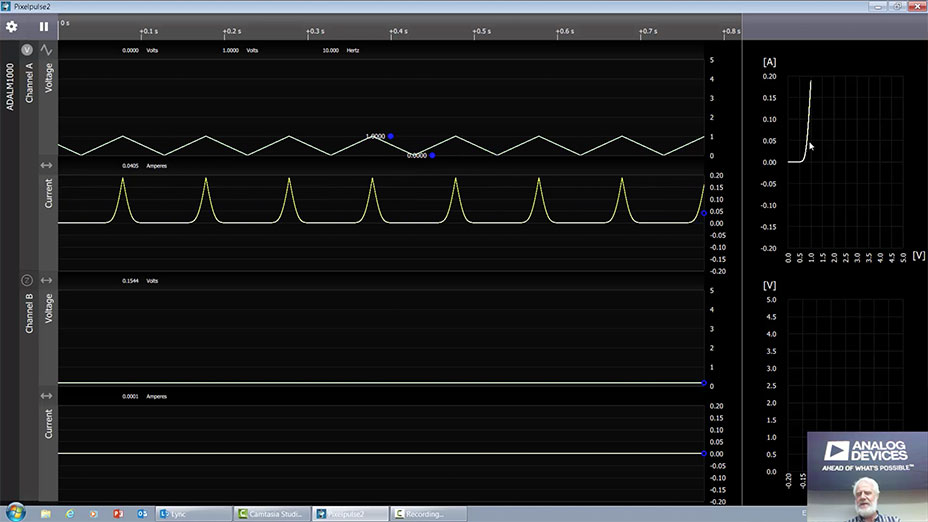

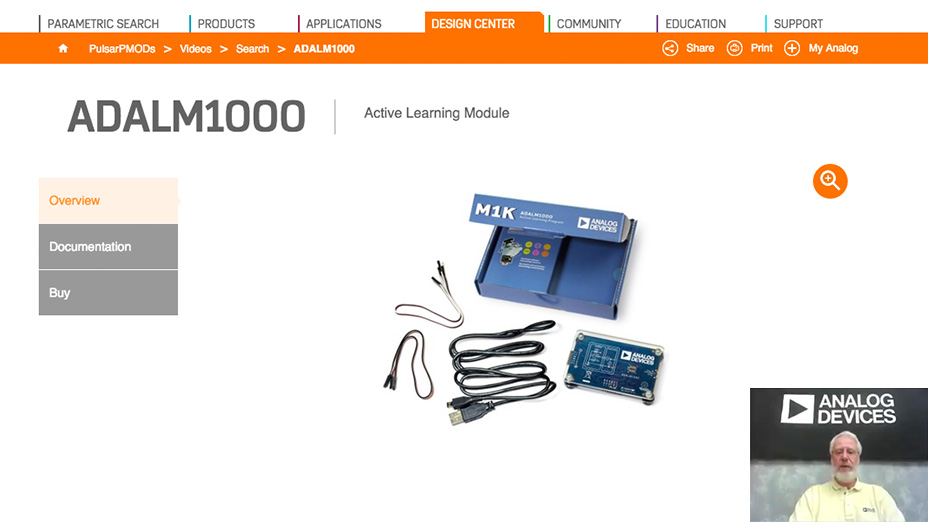

Introduction to the ADALM1000 SMU & PixelPulse Software10/15/2018
-

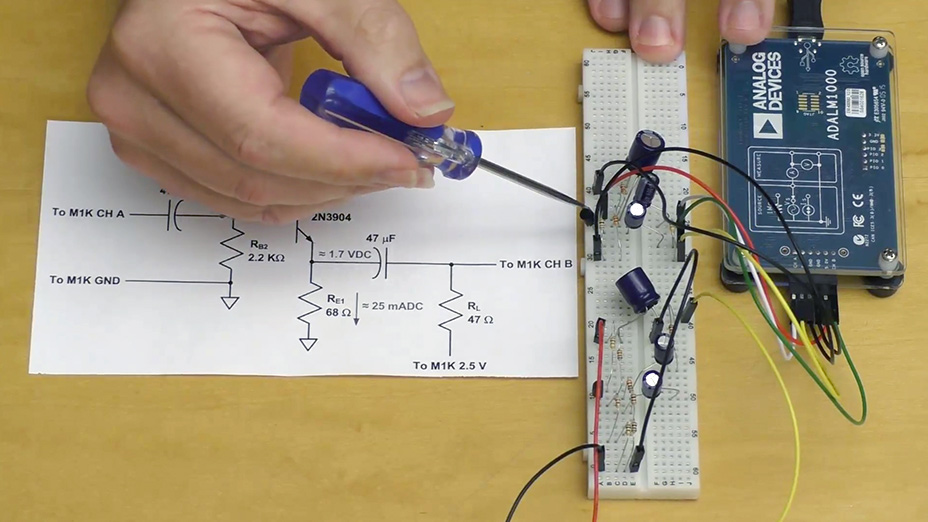

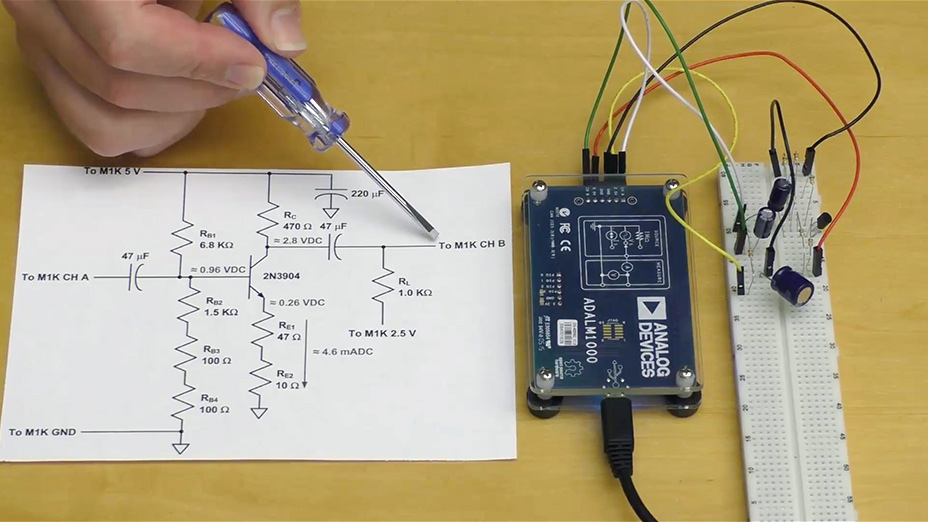

Class A Common-Emitter Amplifier Lab with ADALM1000 and ADALP200010/15/2018
-
The World Is Analog—How Do I Obtain the Necessary Knowledge?!8/1/2019
-
Send the Lab Home6/20/2014
-
Hands-On Learning Gets Real6/20/2014
-

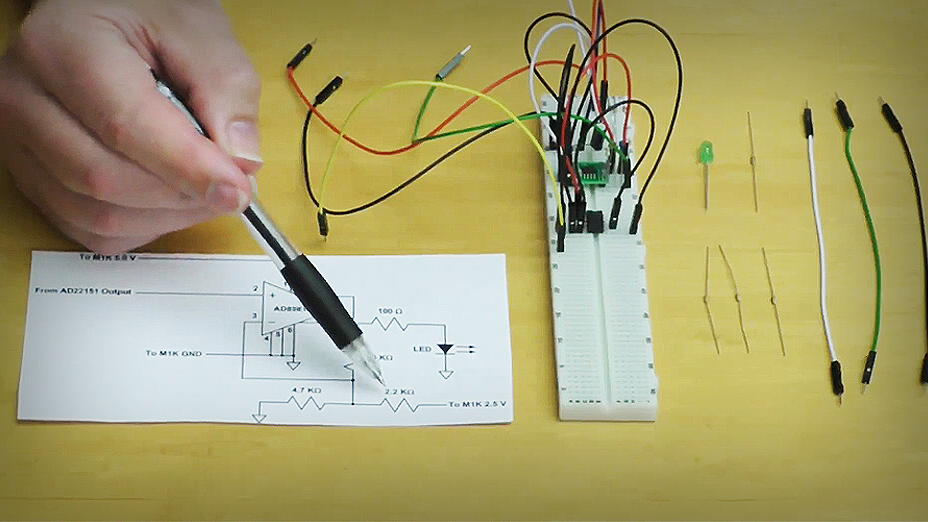

ADALM1000 SMU Training Topic 17: Basic Op Amp Configurations5/1/2019
-
ADALM1000 SMU Training Topic 16: Measuring a Loudspeaker Impedance Profile4/1/2019
-
ADALM1000 SMU Training Topic 15: Impedance Measurement/Frequency Effects3/5/2019
-
ADALM1000 SMU Training Topic 14: Cascaded RC Filters2/1/2019
-
ADALM1000 SMU Training Topic 13: Band Stop Filter1/1/2019
-
ADALM1000 SMU Training Topic 12: Band Pass Filter12/3/2018
-
ADALM1000 SMU Training Topic 11: Frequency Compensated Voltage Dividers11/1/2018
-
ADALM1000 SMU Training Topic 10: Low Pass and High Pass Filters10/1/2018
-
ADALM1000 SMU Training Topic 9: Power and Power Factor in AC Circuits9/1/2018
-
ADALM1000 SMU Training Topic 8: Parallel LC Resonance8/3/2018
-
ADALM1000 SMU Training Topic 7: Resonance in RLC Circuit7/9/2018
-
ADALM1000 SMU Training Topic 6: What Is Phase and Why Do We Care?6/4/2018
-
ADALM1000 SMU Training Topic 5: Transient Response of RL Circuit5/7/2018
-
ADALM1000 SMU Training Topic 4: Transient Response of RC Circuit4/6/2018
-
ADALM1000 SMU Training Topic 3: Thévenin Equivalent Circuit and Maximum Power Transfer3/2/2018
-
ADALM1000 SMU Training Topic 2: Proportionality and Superposition2/6/2018
-
ADALM1000 SMU Training Topic 1: Voltage and Current Division1/10/2018
-
What Is a Source Measurement Unit or SMU?12/6/2017
-
Put an End to High Speed Converter Bandwidth Terms11/6/2017
-
A Complete Circuits Laboratory on Your Desk, in Your Backpack, and on the Go12/1/2016
-
The StudentZone is Open10/1/2016
