A2B Bus Analyzer Evaluation Board

Overview

Features and Benefits
Product Details

Features and Benefits

Key Product Features

Node Emulator
- AD243x — Main/Sub node — Standard/High Power
- AD242x — Main/Sub node
A²B Bus Traffic Monitor
Simultaneous Monitor and Emulator operation

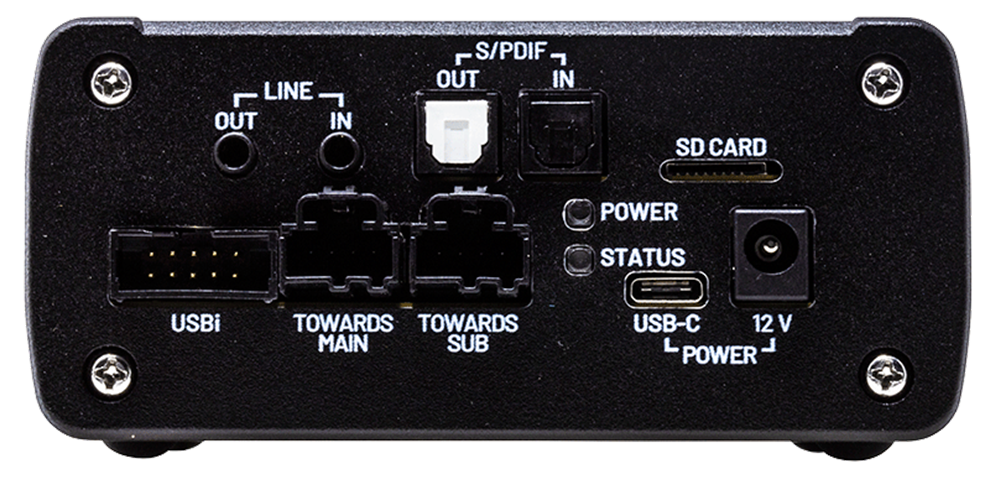

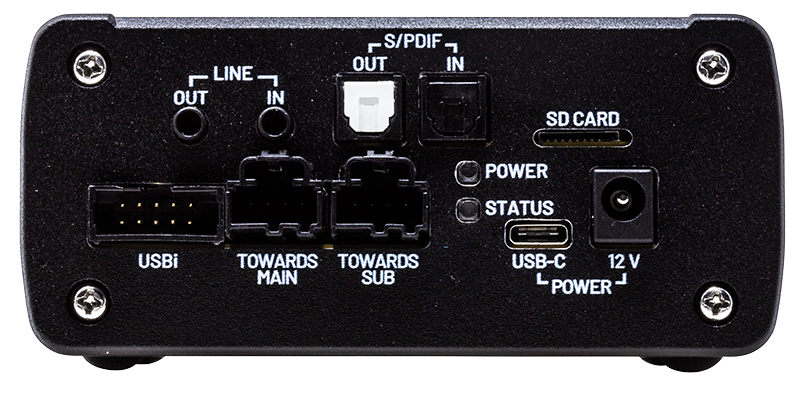

Selectable audio interface
- Analog I/O
- Digital SPDIF I/O
- USB2.0 Audio Class
- Streaming from/to PC
Intuitive Graphical User Interface
- Supported on Windows, Linux, MacOS
Software Development Kit (SDK)

Key Benefits

Powerful, multi-function HW
Supports Rapid development
HW locked license
Software push notifications
Seamless integration to SigmaStudio+
Fully compatible with SigmaStudio

Contact your nearest Analog Devices sales office to complete the Non-Disclosure Agreement (NDA) required to receive additional product information. For technical support, send email to a2b.analyzer.support@analog.com. Additional support is available from your Analog Devices local sales.

Product Details

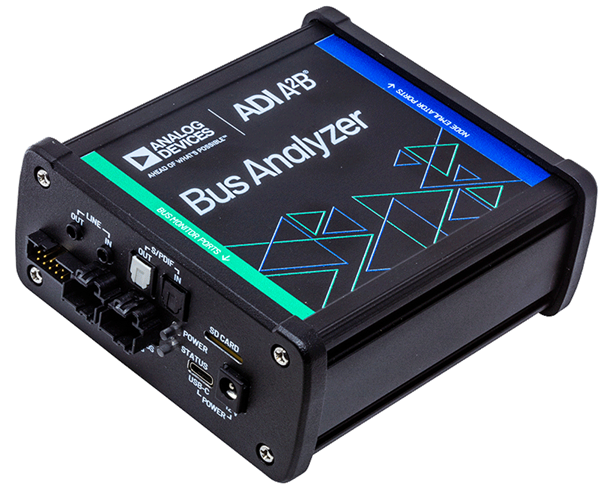

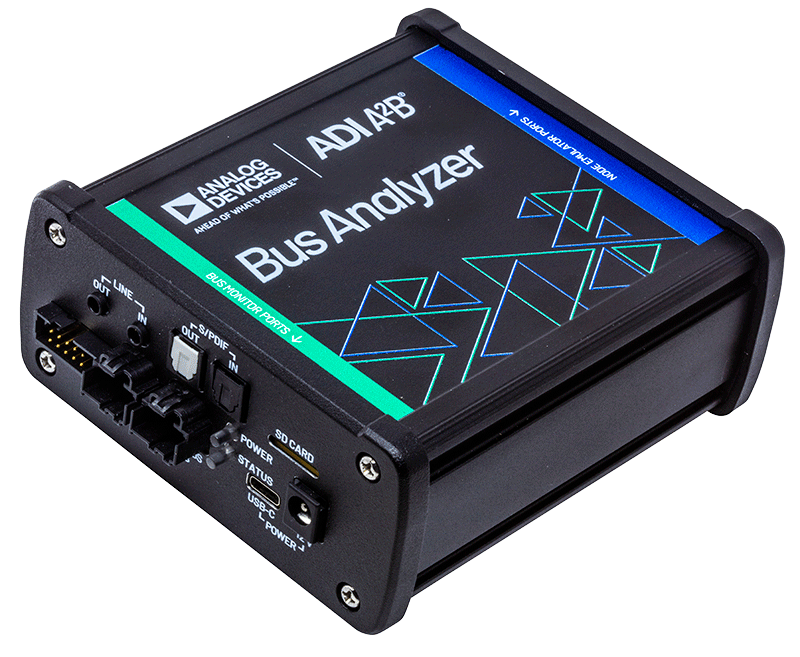

ADI A²B Bus Analyzer is a robust development tool supporting the design and debug of AD242x/3x based A²B networks. It can be configured to act as active bus emulation tool and/or as a passive bus monitor.

The tool consists of the following main components:

Hardware unit

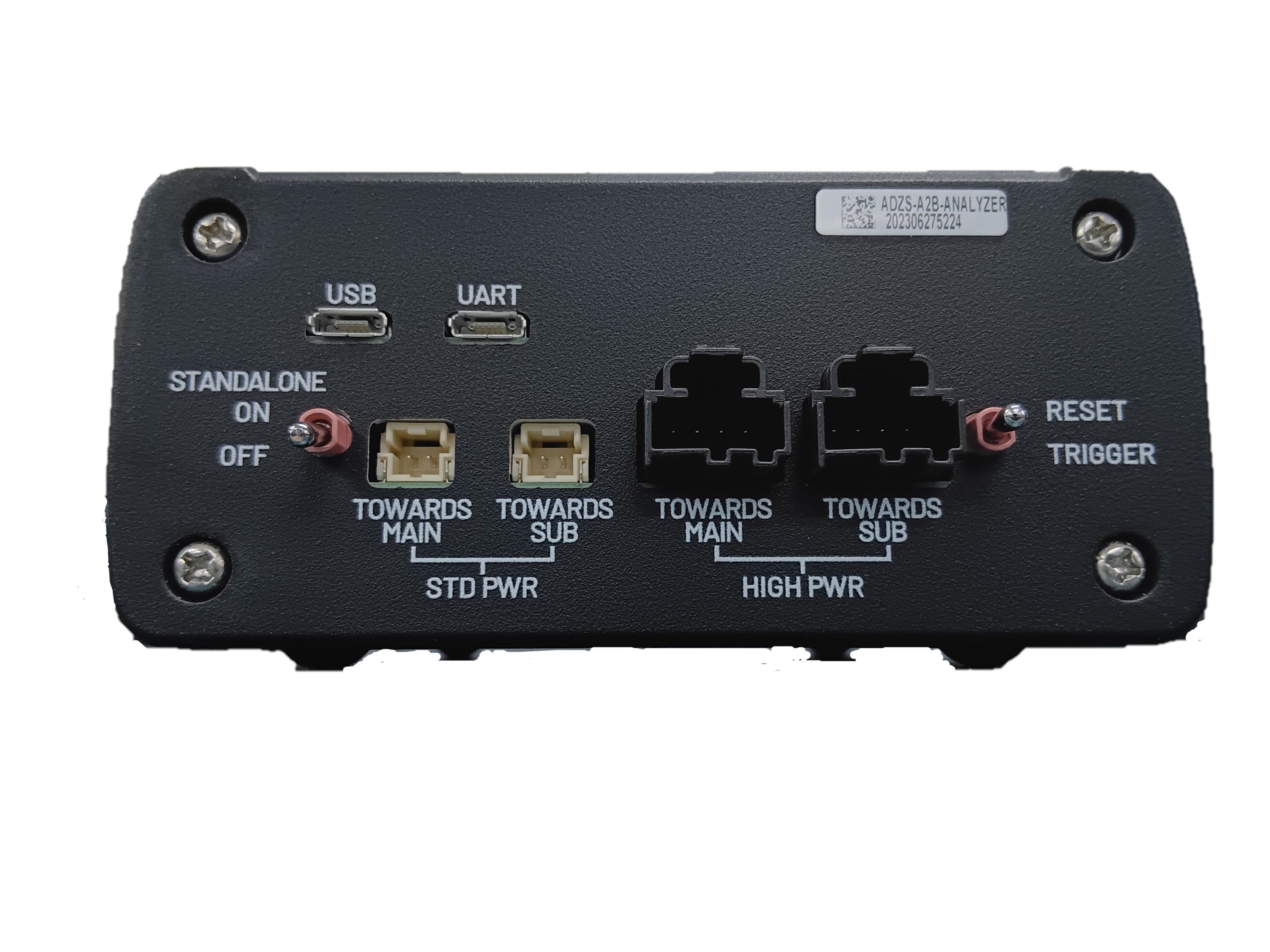

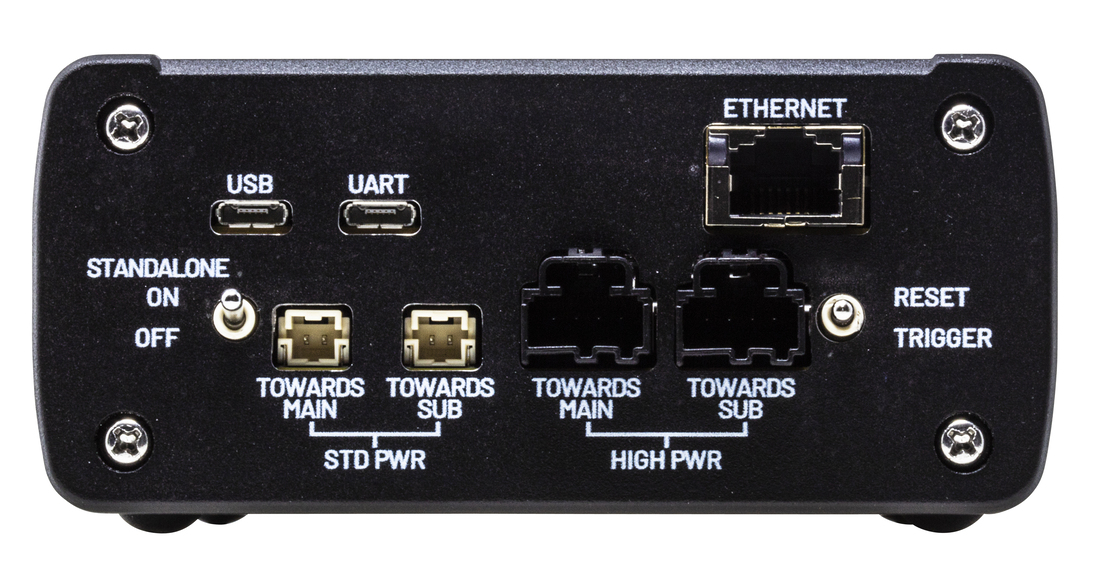

- A²B Main/Sub node emulation
- Passive bus traffic monitor
- Variety of audio input/output interfaces
- High speed USB Interface for audio and control communication
GUI application
- Intuitive GUI for device configuration and control
- Capture/playback of Real-time audio streams and bus traffic on PC
- Inject test tones/streams from PC on to the bus for debug
- A²B Network/node management and diagnostics
- Audio streaming over USB using ASIO/ALSA/CoreAudio
- Support for Windows, Linux, MacOS
SDK
- Software Development Kit (SDK) to create custom applications
