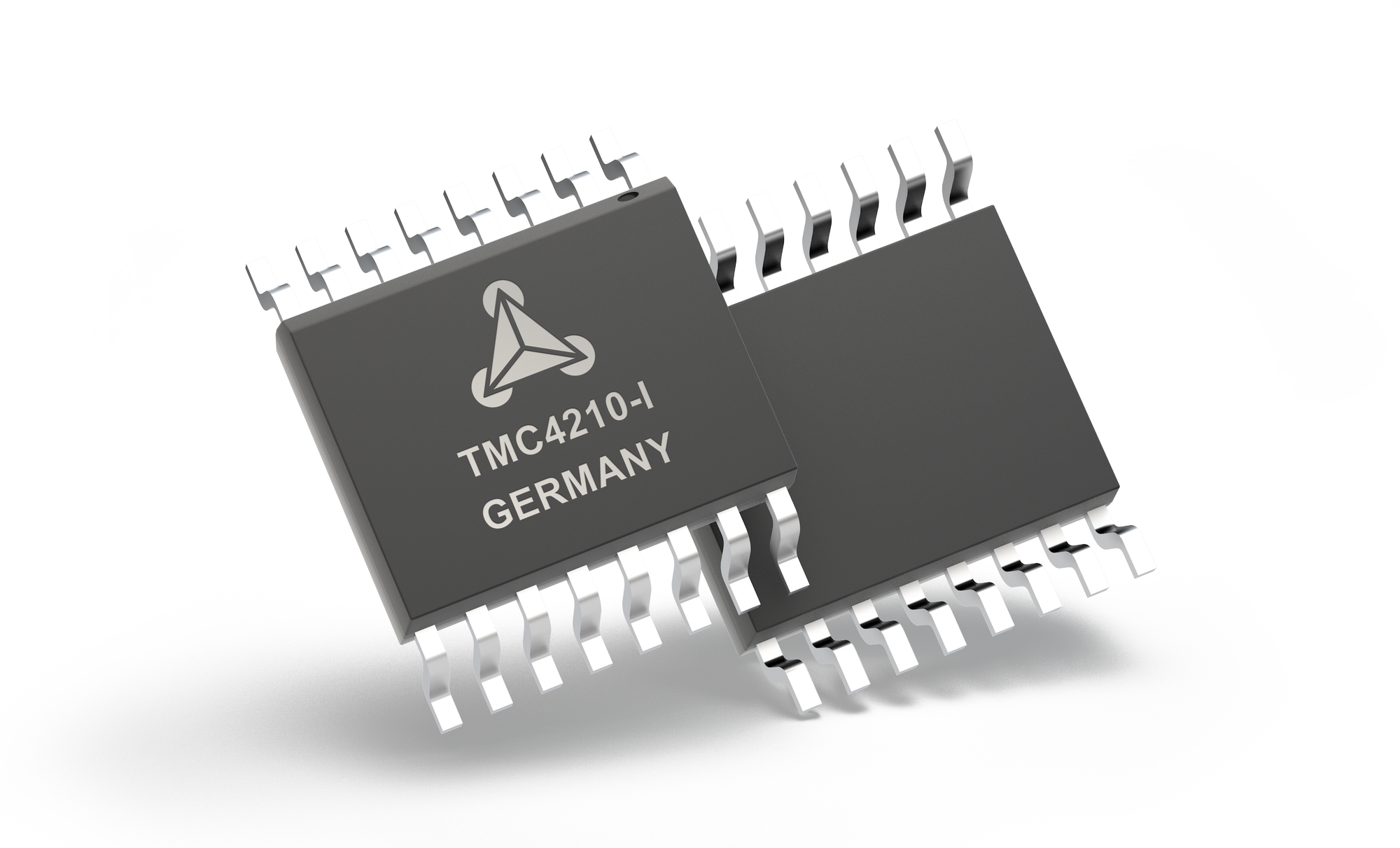

TMC4210
PRODUCTIONStepper Motor Ramp Generator Controller with Serial Peripheral Interfaces and Step/Direction
- Part Models
- 2
- 1ku List Price
- price unavailable
Part Details
- 1-Axis stepper motor controller
- 3.3V or 5 V operation with CMOS / TTL compatible IOs
- Serial 4-wire interface for µC with easy-to-use protocol
- Step/Direction interface to driver
- Clock frequency: up to 32 MHz (can use CPU clock)
- Internal position counters 24 bit wide
- Microstep frequency up to 1 MHze
- Read-out option for all motion parameters
- Ramp generator for autonomous positioning / speed control
- On-the-fly change of target motion parameters
- Low power operation: 1.25 mA at 4 MHz (typ.)
- Compact Size: ultra-small 16 pin SSOP package
- Directly controls TMC2208, TMC2209, TMC2226, TMC2590, TMC2660, TMC26x, TMC2100, TMC2300 & more Step/Dir drivers
The TMC4210-I is a single-axis dedicated motion controller for Laboratory Automation, 3D-Printing, Scanners and other automated equipment applications. It is usable as a trapezoidal ramp generator. The device is designed for an operating voltage of 3.3V to 5V. The TMC4210-I provides a SPI controller and S/D driver interface.
APPLICATIONS
- CCTV, Security
- Antenna Positioning
- Heliostat Controller
- Battery powered applications
- Office Automation
- ATM, Cash recycler, POS
- Lab Automation
- Liquid Handling
- Medical
- Printer and Scanner
- Pumps and Valves
Documentation
Data Sheet 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
---|---|---|---|
TMC4210-I | 16-QSOP-150_MIL | ||
TMC4210-I-T | 16-QSOP-150_MIL |
This is the most up-to-date revision of the Data Sheet.
