RH1965

PRODUCTION

Radiation Hardened 0.9A, Low Noise, Low Dropout Linear Regulator with Shutdown

Part Models: 1
1ku List Price: Starting From $444.05

Viewing:

Overview

Processed in Compliance with LTC Certified MIL-PRF-38535 Class V Flow
Output Current: 0.9A
Typical Dropout Voltage: 300mV at 0.9A
Low Noise: 40μV_RMS (10Hz to 100kHz)
<1μA Quiescent Current in Shutdown
500μA Quiescent Current
Wide Input Voltage Range: 1.8V to 20V
No Protection Diodes Needed
Controlled Quiescent Current in Dropout
Adjustable Output from 1.2V to 19.5V
Stable with 10μF Tantalum Output Capacitor

Reverse-Battery Protection
No Reverse Current
Current Limit with Foldback Protection
Thermal Limiting
Radiation Performance
- Total Ionizing Dose (TID) Tolerance, per TM1019.8, MIL-STD-883:
  - 200kRad (Si), per condition A at 50Rads(Si)/sec
  - 100kRad (Si), per condition D at 10mRads(Si)/sec
  - ELDRS Pass 100kRad(Si)

The RH1965 is a radiation hardened low noise, low dropout linear regulator with an integrated PNP pass transistor that operates from a single supply of as little as 1.8V. It can supply up to 0.9A of output current with a 300mV typical dropout voltage, dependent on the internal bond wire length/resistance of the chosen package.

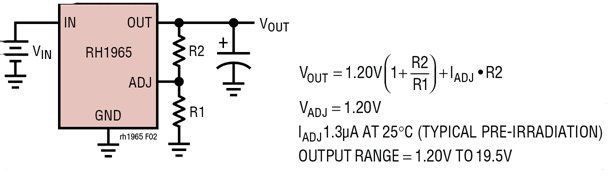

Output voltage range is adjustable from 1.2V to 19.5V by means of a resistor divider on the output. Operating quiescent current is 500μA, reducing to <1μA in shutdown. Quiescent current is well controlled and does not rise in dropout as with many other regulators. The RH1965 regulator has very low output noise that is ideal for sensitive RF and DSP supply applications.

The RH1965 has been optimized for tantalum output capacitors and is stable with values as low as 10μF with an ESR of less than 1Ω. Applications with large output load transients require a larger output capacitor value to minimize output voltage change. Internal protection circuitry includes reverse-battery protection, current limiting with foldback, thermal limiting and reverse-current protection.

Third Party Vendor Availability

Analog Devices partners with third party vendors who assemble and test packaged products with RH Dice inside. For MSK prefix products please click on the Part Number in the table below and scroll down the linked page to find the part number.


Part Number	Description
MSK5965RH	0.9A Adjustable LDO Regulator

Applications

Logic Power Supplies
Post Regulator for Switching Supplies
Low Noise Instrumentation
