RH137

PRODUCTION

Negative Adjustable Regulator

Data Sheet (Rev. G) Product Selection Table

Part Models: 3
1ku List Price: Starting From $308.16

Viewing:

Overview

Absolute Maximum Ratings

Power Dissipation: Internally Limited
Input-to-Output Voltage Differential: 30V
Operating Junction
- Temperature Range: –55°C to 150°C

Storage Temperature Range: –65°C to 150°C
Lead Temperature (Soldering, 10 sec): 300°C

The RH137 negative adjustable regulator will deliver up to 1.5A output current over an output voltage range of –1.2V to –22V.

Every effort has been made to make these devices easy to use and difficult to damage. Internal current and power limiting coupled with true thermal limiting prevents device damage due to overloads or shorts, even if the regulator is not fastened to a heat sink.

Maximum reliability is attained with Analog Device’s advanced processing techniques combined with a 100% burn-in in the thermal limit mode. This assures that all device protection circuits are working and eliminates field failures experienced with other regulators that receive only standard electrical testing.

The wafer lots are processed to Analog Device’s in-house Class S flow to yield circuits usable in stringent military applications.

Third Party Vendor Availability

We partner with third party vendors who assemble and test packaged products with RH Dice inside.

Part Number	Description	SMD
MSK5973RH	1.5A Negative Adjustable Voltage LDO Regulator	5962-05219
VRG8601	1.5A Dual Positive/Negative Adj. Regulator, Thru Hole	5962-05219
VRG8602	1.5A Dual Positive/Negative Adj. Regulator, Surf Mount	5962-05219
VRG8609	1.5A Dual Negative Adjustable Regulator, Thru Hole	5962-05219
VRG8610	1.5A Dual Negative Adjustable Regulator, Surf Mount	5962-05219
VRG8661	1.5A Negative Adjustable Regulator	5962-09206

Part Models: 3
1ku List Price: Starting From $308.16

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

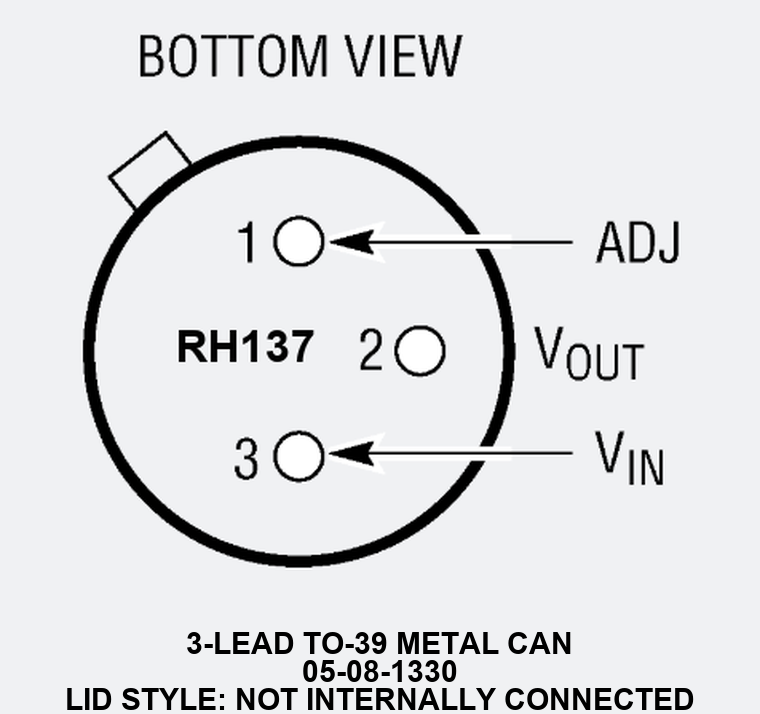

RH137H	3-Lead TO-39	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
RH137HDICE	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
RH137KDICE	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

May 7, 2024 - 24_0027 Datasheet Update of Electrical Test Requirements for Legacy Space LTC (RH Products)
		PCN24_0027_Form Material_Report Datasheet Specification Comparison
RH137H	PRODUCTION
Aug 30, 2022 - 22_0196 Test Site Transfer of RH, SMD, Class-S, Special Flow, MIL-STD-883 Products from Analog Devices Milpitas to ADGT
		PCN22_0196_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Test Correlation Report Test Correlation Report Test Correlation Report Other
RH137H	PRODUCTION
Oct 5, 2020 - 20_0294 Golden Altos as an Alternate Assembly Plant for Radiation Hardened/ Military Products in TO39 and dies sales.
		PCN20_0294_Form Material_Report Qualification Results Summary
RH137H	PRODUCTION
RH137HDICE	PRODUCTION
RH137KDICE	PRODUCTION
Jul 9, 2019 - 19_0111 Laser Top Mark for TO Metal Can Packages assembled in ADI Hillview
		PCN19_0111_Form Material_Report Detailed Parts List Qualification Results Summary
RH137H	PRODUCTION
Sep 17, 2020 - 20_0296 ADI Philippines as an Alternate Assembly Plant for Radiation Hardened Products in Cerpak and Die Sales.
		PCN20_0296_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary
RH137HDICE	PRODUCTION
RH137KDICE	PRODUCTION
