RH1034-1.2

PRODUCTION

Micropower Dual Reference

Data Sheet (Rev. E) Product Selection Table

Part Models: 3
1ku List Price: Starting From $233.37

Viewing:

Overview

Absolute Maximum Ratings

Operating Current: 20mA
Forward Current (Note 2): 20mA
Operating Temperature Range: –55°C to 125°C

Storage Temperature Range: –65°C to 150°C
Lead Temperature (Soldering, 10 sec): 300°C

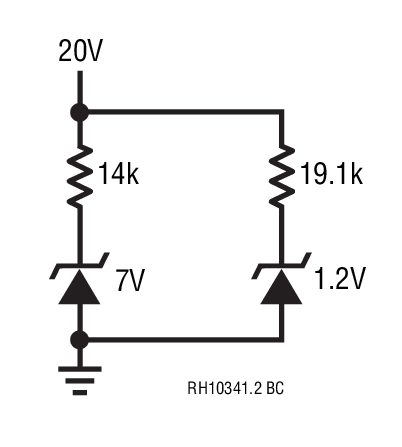

The RH1034-1.2 is a micropower, precision 1.2V reference combined with a 7V auxiliary reference. The 1.2V reference is a trimmed, thin-film, band-gap, voltage reference operating on only 20μA of quiescent current. The RH1034-1.2 offers guaranteed drift, low temperature cycling hysteresis and good long-term stability. The low dynamic impedance makes the RH1034-1.2 easy to use from unregulated supplies. The 7V reference is a subsurface zener device for less demanding applications.

The wafer lots are processed to Analog Devices’ in-house Class S flow to yield circuits usable in stringent military applications.

Part Models: 3
1ku List Price: Starting From $233.37

Documentation

Data Sheet 1

RH1034-1.2: Micropower Dual Reference Data Sheet (Rev.E) 09/10/2009

Controlled Drawings 1

Generic RH Spec Document (Rev.A) 01/15/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
RH1034MH-1.2	8-Lead TO-5 (0.2 Inch PCD)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
RH1034MH-1.2-EMX	ROUND HEADER/METAL CAN	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

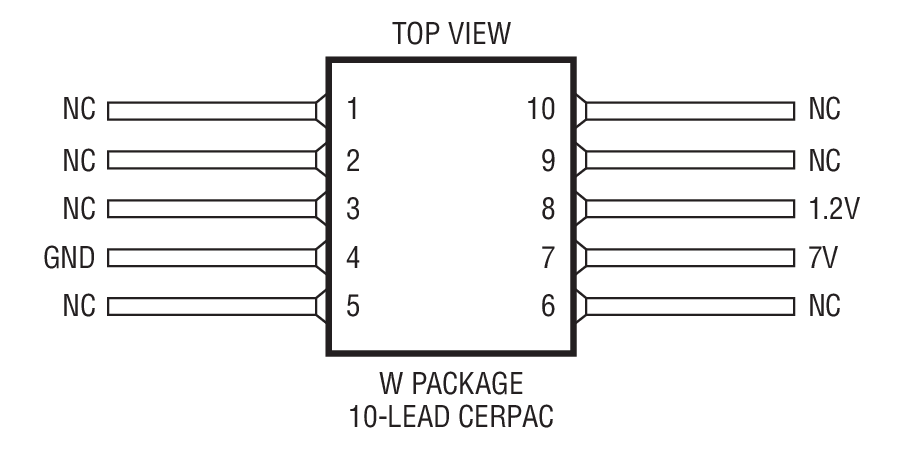

RH1034MW-1.2	10-Lead Flatpak (Glass Sealed Hermetic)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

May 7, 2024 - 24_0027 Datasheet Update of Electrical Test Requirements for Legacy Space LTC (RH Products)
		PCN24_0027_Form Material_Report Datasheet Specification Comparison
RH1034MH-1.2	PRODUCTION
RH1034MW-1.2	PRODUCTION
Aug 30, 2022 - 22_0196 Test Site Transfer of RH, SMD, Class-S, Special Flow, MIL-STD-883 Products from Analog Devices Milpitas to ADGT
		PCN22_0196_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Test Correlation Report Test Correlation Report Test Correlation Report Other
RH1034MH-1.2	PRODUCTION
RH1034MW-1.2	PRODUCTION
Nov 4, 2019 - 19_0198 ADI Philippines as an Alternate Assembly Plant to ADI Hillview for Radiation Hardened and Military Products in TO46 Packages
		PCN19_0198_Form Material_Report Qualification Results Summary
RH1034MH-1.2	PRODUCTION
Jul 9, 2019 - 19_0111 Laser Top Mark for TO Metal Can Packages assembled in ADI Hillview
		PCN19_0111_Form Material_Report Detailed Parts List Qualification Results Summary
RH1034MH-1.2	PRODUCTION
Sep 17, 2020 - 20_0296 ADI Philippines as an Alternate Assembly Plant for Radiation Hardened Products in Cerpak and Die Sales.
		PCN20_0296_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary
RH1034MW-1.2	PRODUCTION
Dec 10, 2019 - 19_0305 Laser Top Mark for Ceramic Cerpak Packages Assembled in ADI Hillview
		PCN19_0305_Form Material_Report Detailed Parts List Qualification Results Summary
RH1034MW-1.2	PRODUCTION
