MAXPOWERTOOL002
USB-to-PMBus Interface Dongle for Power Products
USB-to-PMBus Interface Dongle for Power Products
Top
Overview
Product Details

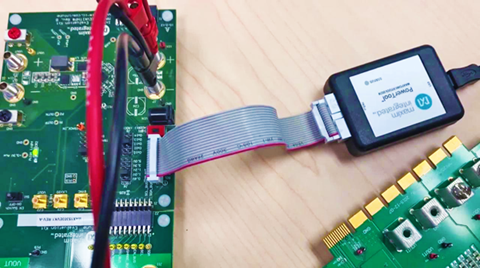

The MAXPOWERTOOL002# is an interface adapter between a host PC (IBM™-compatible) and Maxim’s PMBus compatible power supply EVKs. The interface to the host PC is a standard type-A to mini-B USB cable. The interface to the EVK is through a 16-pin ribbon cable that carries the PMBus commands.

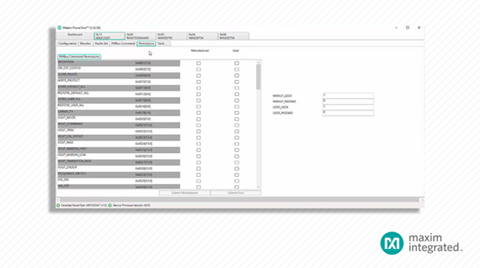

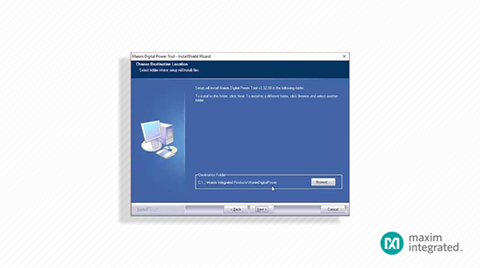

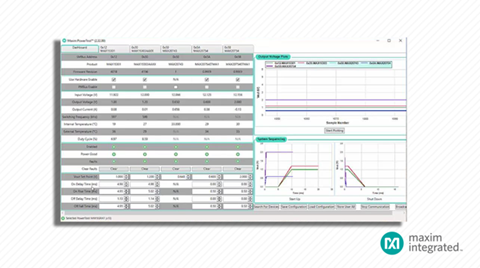

The MAXPOWERTOOL002# is intended to be used with Maxim’s PowerTool GUI and works with the following devices: MAX20751, MAX15301, and MAX15303.
User Guides & Manuals 5981, "PowerTool MAXPOWERTOOL002# Quick Start Guide"
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
