MAX98091

Ultra-Low Power Stereo Audio Codec

Show More showmore-icon

High-Performance Audio Codec with Ultra-Low Power Consumption and Small Footprint for Portable Applications

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 4
1ku List Price Starting From $3.15
Features
  • 102dB DR Stereo DAC to HP
  • 4.1mW Stereo Playback Power Consumption
  • 99dB DR Stereo ADC
  • 4.5mW Stereo Record Power Consumption
  • 3 Stereo Single-Ended/Differential Analog Microphone/Line Inputs
  • Two PDM Digital Microphone Inputs
  • Master Clock Frequencies from 256 x fS to 60MHz
  • I2S/LJ/RJ/TDM Digital Audio Interface
  • FlexSound Technology Signal Processing
    • Record Path Biquad Filter
    • Playback Path 7-Band Parametric EQ
    • Playback Path Automatic Level Control
    • Digital Filtering and Gain/Level Control
  • Stereo Low EMI Class D Speaker Amplifiers
    • 3.2W/Channel (RL = 4Ω, VSPKVDD = 5V)
    • 1.8W/Channel (RL = 8Ω, VSPKVDD = 5V)
  • Stereo DirectDrive Class H Headphone Amplifier Jack Detection and Identification
  • Differential Receiver Amplifier/Stereo Line Output
  • Extensive Click-and-Pop Reduction Circuitry
  • RF Immune Analog Inputs and Outputs
  • Programmable Microphone Bias
  • I2C Control Interface
  • 56-Bump 0.4mm WLP and 48-Pin 6mm x 6mm x 0.75mm TQFN Packages
Additional Details
show more Icon

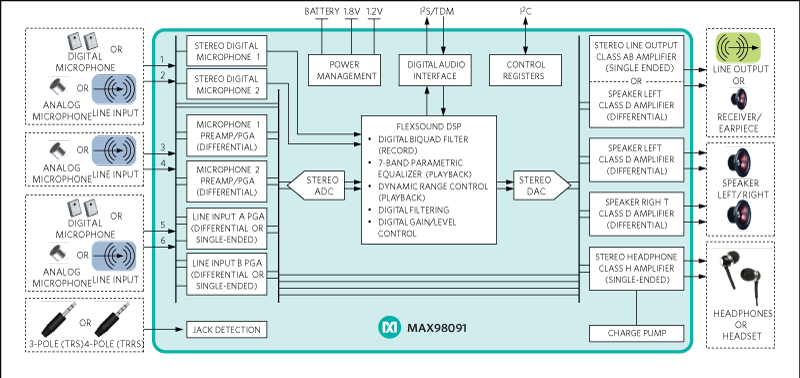

The MAX98091 is a fully integrated audio codec whose high-performance, ultra-low power consumption and small footprint make it ideal for portable applications.

The device features a highly flexible input scheme with six input pins that can be configured as analog or digital microphone inputs, differential or single-ended line inputs, or as full-scale direct differential inputs. Analog inputs can be routed to the record path ADC or directly to any analog output mixer.

The device accepts master clock frequencies of either 256 x fS or from 10MHz to 60MHz. The digital audio interface supports master or slave mode operation, sample rates from 8kHz to 96kHz, and standard PCM formats such as I²S, left/right-justified, and TDM.

The record/playback paths feature FlexSound® technology DSP. This includes digital gain and filtering, a biquad filter (record), dynamic range control (playback), and a seven band parametric equalizer (playback) that can improve loudspeaker performance by optimizing the frequency response.

The stereo Class D speaker amplifier provides efficient amplification, features low radiated emissions, supports filterless operation, and can drive both 4Ω and 8Ω loads. The DirectDrive® stereo Class H headphone amplifier provides a ground-referenced output eliminating the need for large DC-blocking capacitors. The device also includes a differential receiver (earpiece) amplifier that can be reconfigured as a stereo single-ended line output.

Applications

  • Smartphones
  • Tablets
Part Models 4
1ku List Price Starting From $3.15

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX98091ETM+
  • HTML
  • HTML
MAX98091ETM+T
  • HTML
  • HTML
MAX98091EWN+
  • HTML
  • HTML
MAX98091EWN+T
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 19, 2016

- 1594_AMENDED

ASSEMBLY

MAX98091EWN+T

PRODUCTION

Dec 8, 2015

- 1594_PRE-PCN

WAFER FAB

MAX98091EWN+T

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 19, 2016

- 1594_AMENDED

arrow down

ASSEMBLY

MAX98091EWN+T

PRODUCTION

Dec 8, 2015

- 1594_PRE-PCN

arrow down

WAFER FAB

MAX98091EWN+T

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

MAX98091EVKIT#TQFN

Evaluation Kit for the MAX98091 (TQFN)

zoom

MAX98091EVKIT#TQFN

Evaluation Kit for the MAX98091 (TQFN)

Evaluation Kit for the MAX98091 (TQFN)

Features and Benefits

  • 2.8V to 5.5V Single-Supply Operation
  • On-Board USB-to-I2C Interface
  • On-Board USB-to-I2S Converter
  • On-Board S/PDIF Transceiver
  • On-Board Clock Source
  • On-Board Digital Microphone
  • Windows XP-, Windows 7-, and Windows 8-Compatible Software
  • Fully Assembled and Tested

Product Detail

The MAX98091 evaluation kit (EV kit) is a fully assembled and tested circuit board that evaluates the MAX98091 audio codec. The MAX98091 is an integrated audio codec including an earpiece amplifier, stereo Class D amplifier, stereo DirectDrive® headphone amplifier, and digital signal processing.

To enable easy connection to a wide range of audio sources, the EV kit includes audio devices to convert both USB and S/PDIF data to I2S data. The EV kit also integrates a MAXQ2000 microcontroller to enable I2C and SPI communication with the on-board I2C- and SPIcapable devices. A simple and intuitive graphical user interface (GUI) provides communication with the EV kit through Windows® OS running Windows XP®-, Windows 7-, or Windows 8-compatible software.

Applications

  • Smartphones
  • Tablets

MAX98091EVKIT

Evaluation Kit for the MAX98091

zoom

MAX98091EVKIT

Evaluation Kit for the MAX98091

Evaluation Kit for the MAX98091

Features and Benefits

  • 2.8V to 5.5V Single-Supply Operation
  • On-Board USB-to-I2C Interface
  • On-Board USB-to-I2S Converter
  • On-Board Digital Microphone
  • Windows XP-, Windows 7-, and Windows 8-Compatible Software
  • Fully Assembled and Tested

Product Detail

The MAX98091 evaluation kit (EV kit) is a fully assembled and tested circuit board that evaluates the MAX98091 audio codec. The MAX98091 is an integrated audio codec including an earpiece amplifier, stereo Class D amplifier, stereo DirectDrive® headphone amplifier, and digital signal processing.

To enable easy connection to a wide range of audio sources, the EV kit includes audio devices to convert both USB and S/PDIF data to I2S data. The EV kit also integrates a MAXQ2000 microcontroller to enable I2C and SPI communication with the on-board I2C- and SPIcapable devices. A simple and intuitive graphical user interface (GUI) provides communication with the EV kit through Windows® OS running Windows XP®-, Windows 7-, or Windows 8-compatible software.

Applications

  • Smartphones
  • Tablets
