MAX9595

Audio/Video Switch for Dual SCART Connector

Dual SCART Switch with Integrated Video Filters for Set-Top Box and A/V Receiver Applications

Viewing:

Overview

Video Outputs Drive 2V_P-P into 150Ω
Audio Outputs Drive 3V_RMS into 10kΩ
Clickless, Popless Audio Gain Control and Switching
Interrupt Output Detects Changes on Slow Switching Input
AC-Coupled Video Inputs with Internal Clamp and Bias
DC-Coupled Video Outputs
Composite Video Signal Created Internally from Y/C Inputs
Internal Video Reconstruction Filters Provide -40dB at 27MHz
Single-Ended Audio Input
Red/Chroma Switch for Bidirectional I/O
I²C-Programmable RGB Gain from +5dB to +7dB
I²C-Programmable Audio Gain Control from +6dB to -56dB
Meets EN50049-1, IEC 933-1, Canal+, and BSkyB Requirements

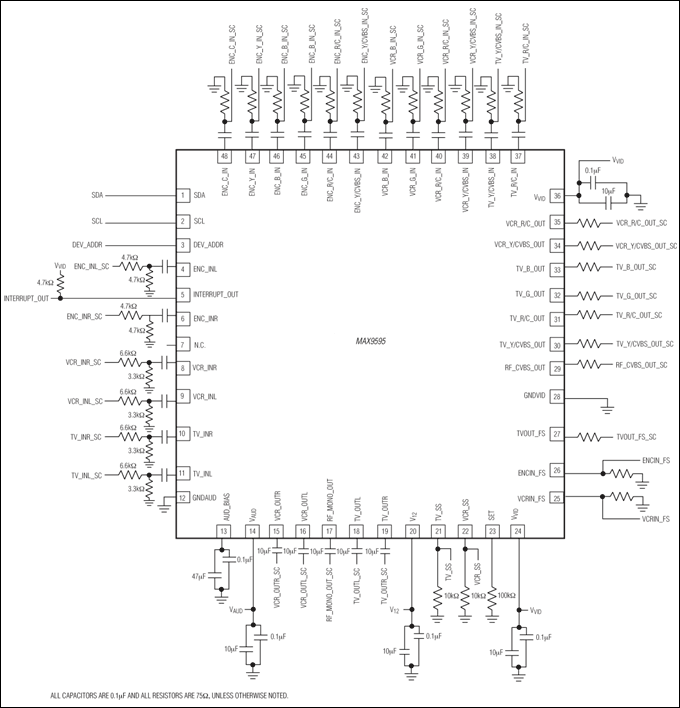

The MAX9595 dual SCART switch matrix routes audio and video signals between an MPEG encoder and two external SCART connectors under I²C control, and meets the requirements of EN50049-1, IEC 933-1, Canal+, and BSkyB standards.

The video and audio channels feature input source selection multiplexers, input buffers, and output buffers for routing all inputs to selected outputs.

The MAX9595 provides programmable gain control from +5dB to +7dB in 1dB steps for red, green, and blue component video signals. All other video outputs have a fixed +6dB gain. Additional features include an internal luma and chroma (Y/C) mixer that generates a composite video signal (CVBS) to supply an RF modulator output, and internal video reconstruction lowpass filters with passband ripple between -1dB and +1dB from 100kHz to 5.5MHz. The MAX9595 TV audio channel features clickless switching and programmable volume control from -56dB to +6dB in 2dB steps. The VCR audio output also has programmable gain for -6dB, 0dB, or +6dB. The device also generates monaural audio from left and right stereo inputs. All audio drivers deliver a 3.0V_RMS minimum output.

The MAX9595 operates with standard 5V and 12V power supplies and supports slow-switching and fast-switching signals. The I²C interface programs the gain and volume control, and selects the input source for routing.

The MAX9595 is available in a compact 48-pin thin QFN package and is specified over the 0°C to +70°C commercial temperature range.
