MAX9530

Quad NTSC/PAL Decoder and Quad Audio Codec

Lowest System Cost for Interfacing 4-Channel Analog Video and Audio Input to Maxim's MG3500*

Viewing:

Overview

4-Channel Analog Video Decoder—NTSC or PAL (All Variations)
4-Channel Frame-Interleaved Output Synchronizer with the Use of Optional External DDR2 Memory
- With DDR2—Pixel or Frame Interleaved
- Without DDR2—BT.656 Pixel (Byte) Multiplex
Programmable 2D Video Scalers
Independent Auto Cable EQ per Video Channel
Instant Lock System for Video Capture
Multiline Adaptive Comb Filters
4x Oversampled 54MHz/10-Bit Video ADC
4-Channel Analog Audio Input (Mono)
48kHz/16-Bit Audio ADC
2-Channel Analog Audio Output
Differential or Single-Ended Analog Inputs
I²C Interface
4-Channel of 8/16-Bit Audio
1.8V Analog Supply Voltage
1.8V Digital Core Supply Voltage
1.8V to 3.3V Digital I/O Voltage

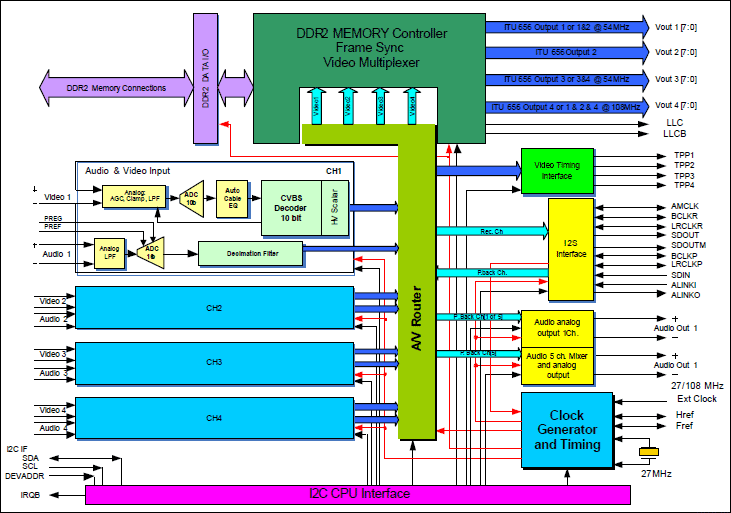

The MAX9530 is a quad-channel video decoder and audio codec for security applications. The part is specially designed to serve as the analog video front-end in multichannel DVRs (digital video recorders) and multicamera systems. The architecture supports byte- or frame-interleaved digital video output for direct connection to Maxim’s own H.264 codec family (i.e., MG3500* and later generations). The on-chip DDR2 memory controller enables output of frame-synchronized digital video from up to four asynchronous analog video inputs. The use of external memory is optional. Without any external memory, bypass mode provides for output of up to four separate channels of asynchronous video data in BT.656 digital component format. Excellent video quality and noise immunity are achieved with the use of differential input mode, integrated automatic video EQ, and the industry's best specifications for interchannel crosstalk.
