MAX9164
3.3V Single LVDS Driver/Receiver
Part Details
- 3.3V Operation
- 35% Lower Power than DS90LV019
- 200Mbps Data Signaling Rate
- ±1V Common-Mode Range
- ±100mV Receiver Sensitivity
- Flow-Through Pinout
- Receiver Output High for Open Input

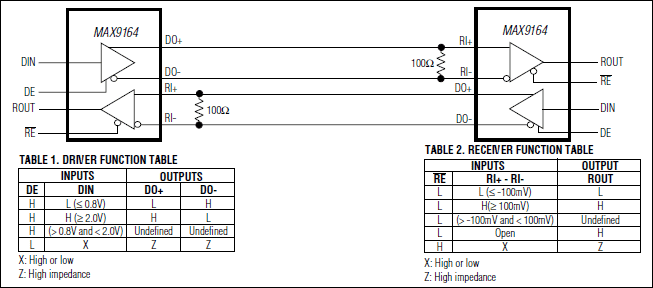

The MAX9164 high-speed LVDS driver/receiver is designed specifically for low-power point-to-point applications. The MAX9164 operates from a single 3.3V power supply, and is pin compatible with DS90LV019. The device features an independent differential driver and receiver.
The MAX9164 driver output uses a current-steering configuration to generate a 3.1mA drive current. The driver accepts a single-ended input and translates it to LVDS signals at speeds up to 200Mbps over controlled-impedance media of approximately 100Ω. The transmission media may be printed circuit board traces or cables. The enable logic input, DE, is used to enable or disable the driver.
The MAX9164 receiver detects a differential input as low as 100mV and translates it to single-ended output at speeds up to 200Mbps. The enable logic input, RE-bar, is used to enable or disable the receiver. Inputs and outputs conform to the ANSI TIA/EIA-644 LVDS standard. The MAX9164 is offered in 14-lead SO and TSSOP packages, and is specified for operation from -40°C to +85°C.
Applications
- Add/Drop Multiplexers
- Backplane Interconnect
- Cell Phone Base Stations
- Clock Distribution
- Digital Cross-Connects
- DSLAM Backplane
- Network Routers and Switches
