MAX8883
Dual, Low-Noise, Low-Dropout, 160mA Linear Regulators in SOT23
Dual, Low-Noise, Low-Dropout 160mA Linear Regulators in SOT23
Top
Overview
Features and Benefits
- Two LDOs in Tiny SOT23
- Up to 160mA Output Current (each LDO)
- 40µVRMS Output Noise (MAX8882)
- 72mV Dropout at 80mA Load
- Low 165µA Operating Supply Current
- 62dB PSRR (greater than 56dB to 100kHz)
- Independent Low-Power Shutdown Controls (MAX8883)
- Thermal-Overload and Short-Circuit Protection
- Output Current Limit
Product Details

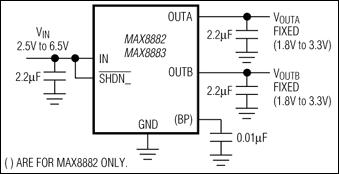

The MAX8882/MAX8883 dual, low-noise, low-dropout linear regulators operate from a +2.5V to +6.5V input and deliver up to 160mA each of continuous current. Both versions offer low output noise and low dropout of only 72mV at 80mA. Designed with an internal P-channel MOSFET pass transistor, the MAX8882/MAX8883 maintain a low 165µA supply current (both LDOs on), independent of the load current and dropout voltage. Other features include short-circuit protection and thermal-shutdown protection. The MAX8882 has a single shutdown input and provides an external reference bypass pin to improve noise performance. The MAX8883 includes two independent logic-controlled shutdown inputs. The MAX8882/MAX8883 are both available in a miniature 6-pin SOT23 package.
Applications
- µP/DSP Core/IO Power
- Cellular and PCS Mobile Phones
- Digital Still Cameras
- Handheld Instruments (PDAs, Palmtops)
- Notebook Computers
- PDAs and Palmtop Computers
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
