MAX8858

PRODUCTION

Smallest, All-Internal MOSFET, 6-Channel DSC PMIC in a 5mm x 5mm TQFN

Low-Cost, High-Performance, 6-Channel DSC PMIC

Part Models
2
1ku List Price
price unavailable
Viewing:

Part Details

  • 95% Efficient Synchronous-Rectified DC-DC Converters
  • Up to 90% Efficient Boost-Buck Operation
  • Up to 85% Efficient, High-Voltage DC-DC Converters
  • Transformerless Inverting Converter with Active Discharge for CCD
  • Preset Power-Up Sequencing for MAIN, SDZ, and SD Converters
  • Inverter Operates Directly from Two AA Batteries
  • Internal Compensation on All Channels
  • True Shutdown™ on All Step-Up Converters
  • Overload Protection
  • Startup into Short Protection
  • Soft-Start for Controlled Inrush Current
  • 100% Duty Cycle on Step-Down Converters
  • 2MHz ±5% Switching Frequency
  • 0.1µA Shutdown Supply Current
  • All Internal Power MOSFETs
MAX8858
Smallest, All-Internal MOSFET, 6-Channel DSC PMIC in a 5mm x 5mm TQFN

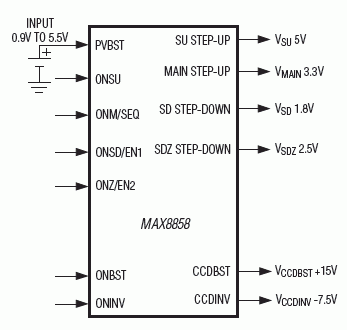

MAX8858: Typical Operating Circuit
