MAX8794

PRODUCTION

Low-Voltage DDR Linear Regulator

Low-Cost, Low-Voltage DDR Linear Regulator Sources and Sinks Up to 3A Peak (typ) Using Internal n-Channel MOSFETs

Data Sheet (Rev. 3) Product Selection Table

Part Models: 4
1ku List Price: Starting From $2.98

Viewing:

Overview

Internal Power MOSFETs with Current Limit (3A typ)
Fast Load-Transient Response
External Reference Input with Reference Output Buffer
1.1V to 3.6V Power Input
±15mV (max) Load-Regulation Error
Thermal-Fault Protection
Shutdown Input
Power-Good Window Comparator with 2ms (typ) Delay

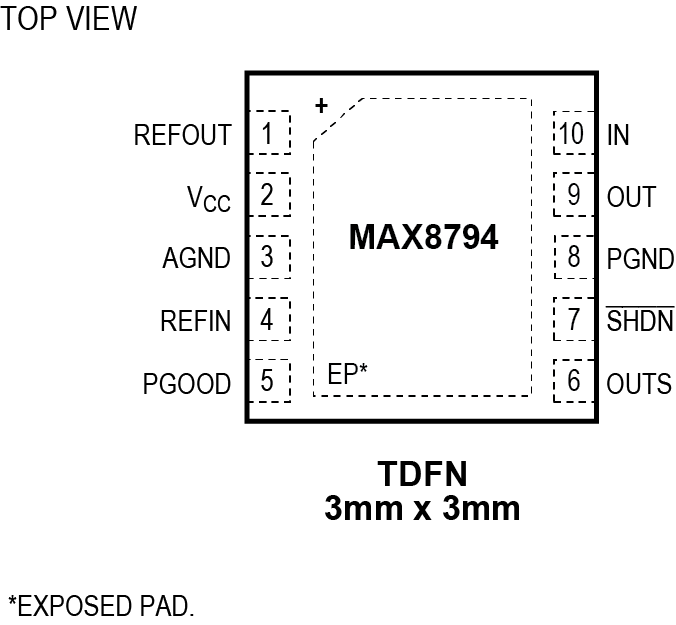

Small, Low-Profile, 10-Pin, 3mm x 3mm TDFN Package
Ceramic or Polymer Output Capacitors

The MAX8794 DDR linear regulator sources and sinks up to 3A peak (typ) using internal n-channel MOSFETs. This linear regulator delivers an accurate 0.5V to 1.5V output from a low-voltage power input (V_IN = 1.1V to 3.6V). The MAX8794 uses a separate 3.3V bias supply to power the control circuitry and drive the internal n-channel MOSFETs.

The MAX8794 provides current and thermal limits to prevent damage to the linear regulator. Additionally, the MAX8794 generates a power-good (PGOOD) signal to indicate that the output is in regulation. During startup, PGOOD remains low until the output is in regulation for 2ms (typ). The internal soft-start limits the input surge current.

The MAX8794 powers the active-DDR termination bus that requires a tracking input reference. The MAX8794 can also be used in low-power chipsets and graphics processor cores that require dynamically adjustable output voltages. The MAX8794 is available in a 10-pin, 3mm x 3mm, TDFN package.

Applications

Active Termination Buses
Chipset/RAM Supplies as Low as 0.5V
DDR Memory Termination
Graphics Processor Core Supplies
Notebook/Desktop Computers

Part Models: 4
1ku List Price: Starting From $2.98

Documentation

Data Sheet 1

MAX8794: Low-Voltage DDR Linear Regulator Data Sheet (Rev.3) 09/08/2023

Reliability Data 1

MAX8794 Reliability Data 01/12/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX8794ETB+	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX8794ETB+T	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX8794ETB/V+	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX8794ETB/V+T	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
