TFT-LCD Step-Up DC-DC Converter

High-Performance Step-Up DC-DC Converter Provides a Regulated Supply Voltage for Active-Matrix Thin-Film Transistor (TFT) Liquid-Crystal Displays (LCDs)

Data Sheet (Rev. 1) Product Selection Table
Viewing:

Overview

  • 90% Efficiency
  • Adjustable Output from VIN to 24V
  • 2.6V to 5.5V Input Supply Range
  • Input Supply Undervoltage Lockout
  • Pin-Programmable 640kHz/1.2MHz Switching Frequency
  • Programmable Soft-Start
  • 0.1µA Shutdown Current
  • Small 10-Pin Thin DFN Package
    • MAX8727
    TFT-LCD Step-Up DC-DC Converter

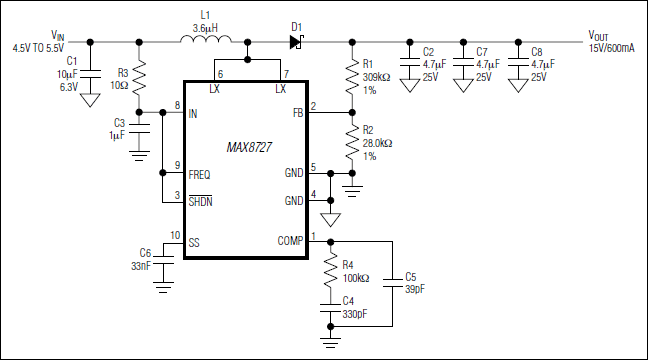

    MAX8727: Typical Operating Circuit
